Lumenwerx is delighted to launch Ecana, a family of downlights embodying a philosophy that celebrates the simplicity of minimalist design artfully integrated with the most advanced optical system on the market.
Ecana fixtures are refined and versatile. Their streamlined, uncomplicated forms allow for their seamless integration into diverse interior environments. At their core, they feature the proprietary XPoint™ Refraction Technology, the sophisticated and state-of-the-art optical system that employs intersecting micro-optical paths to ensure the emission of precise, soft, and visually comfortable illumination with zero light spill.
Versatility
Ecana downlights are designed with clean lines and a focus on the essential elements of lighting. They are available as round and square fixtures in sizes of 3″, 4″, and 6″, and in fixed, adjustable, and wall wash models. Different accessories, subtle trim styles, and color temperature control options provide for addressing a diverse range of applications with practical and refined lighting solutions.
Ecana’s adjustable fixtures, in particular, offer expanded design possibilities by allowing precise control over the direction of light. This flexibility facilitates the creation of layered lighting designs and makes it easier to adapt to changing environments, such as alterations in spatial arrangements or furniture layouts.
The 3″ and 4″ models boast an integrated sliding mechanism for tilt and rotation adjustments. Meanwhile, 6″ fixtures feature a fast-thread design enabling quick tilting and locking of the tilt angle in place with a screwdriver. The 6″ fixtures can be rotated by hand to the desired degree using practical angle indicators.
Suitability
Ecana downlights are available for New Construction and Remodel projects to cover typical installation requirements. The family offers four mounting bar options: standard bar hangers, commercial bar hangers, flush mount bars, and hat channel bars, all adjustable to address a variety of applications.
The Ecana family achieves a harmonious balance between form and function, ensuring industry-leading performance and quality that enriches any environment.

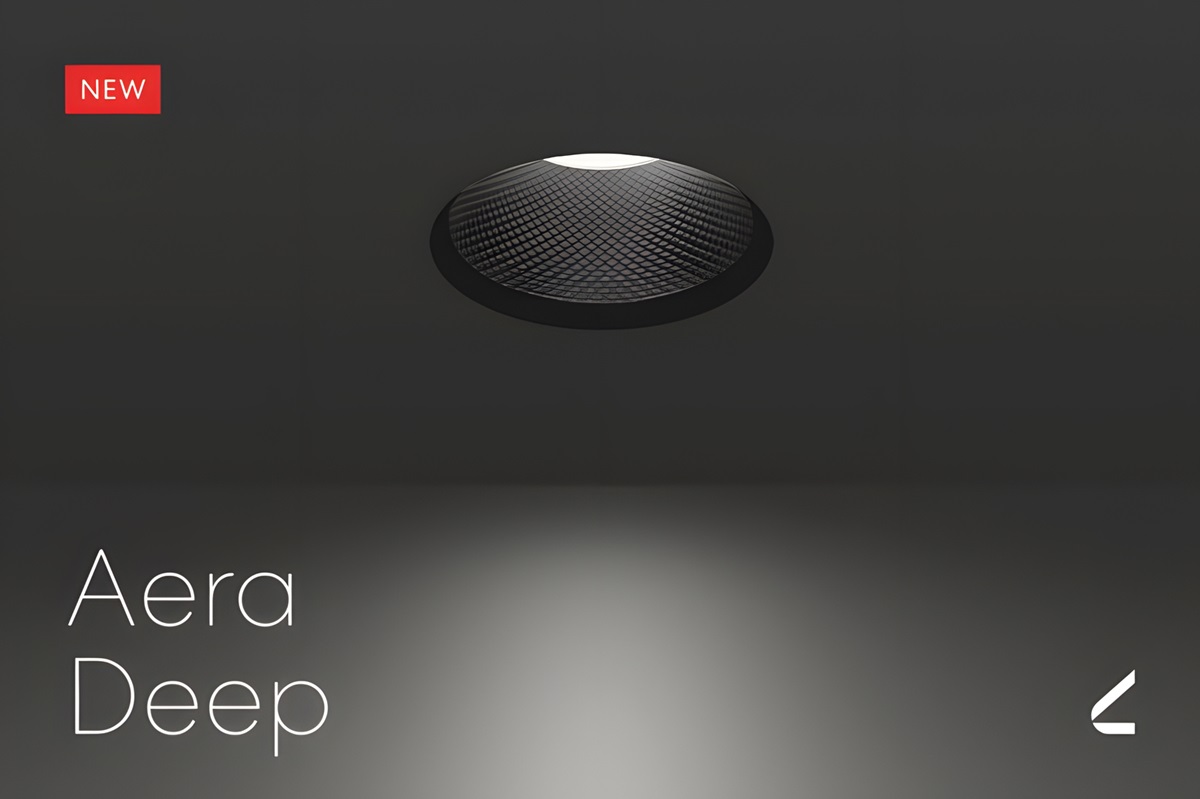

Lumenwerx proudly introduces the Aera Deep product line, the latest downlight additions to the Aera family renowned for its versatility, sleek design, high-tech features, and outstanding performance across downlights, multi-apertures, and cylinders.
Aera Deep luminaires introduce a unique deep baffle feature to the Aera family, available with a prism or smooth texture. This depth allows for an exceptionally low glare quality of light (UGR as low as 1) and a visually quiet ceiling. Aera Deep comes in square or round models and 2" or 3" apertures. The high-performance family (113 lm/W) displays a precise coupling of optic and trim and can be installed as IC-rated, non-IC-rated, or Chicago Plenum-rated types.
Aera Deep comes in two models—Aera Deep Prism and Aera Deep Smooth—that introduce a unique deep baffle feature to the Aera family. This depth allows for an exceptionally low-glare quality of light and a visually quiet ceiling. With a precise coupling of optic and trim, these high-performance luminaires seamlessly install as IC-rated, non-IC-rated, or Chicago Plenum-rated types.
The Aera Deep Prism and Aera Deep Smooth integrate XPoint™ Refraction to achieve crisp and exacting beams. Aera Deep Prism further enhances its luminous emission through Diamond Prism Optic™ (DPO™) technology, which contributes to a luxurious and comfortable experience of light.
Aera Deep Prism luminaires share a purposeful connection with the Curvia 2 Prism and Via 2 Prism series, forming a unique mini collection of round, square, linear, and curvilinear fixtures. Unified by functional capabilities and a minimalist prism aesthetic, these luminaires can illuminate alone or together, allowing for countless combinations in creating complete and cohesive lighting designs.
Our advanced XPoint™ Refraction Technology uses micro optical paths that direct the light emitted from the COB (Chip On Board) to intersecting paths that meet in the center and disperse light in a precise direction for each beam angle. XPoint™ technology creates soft well lit environments that have strong visual comfort.
The Diamond Prism Optic™ (DPO™) is our patent-pending 3-tiered optic meticulously crafted to refract and reflect beams with great precision, effectively keeping glare to a minimum while delivering light of exceptional quality and visual comfort.

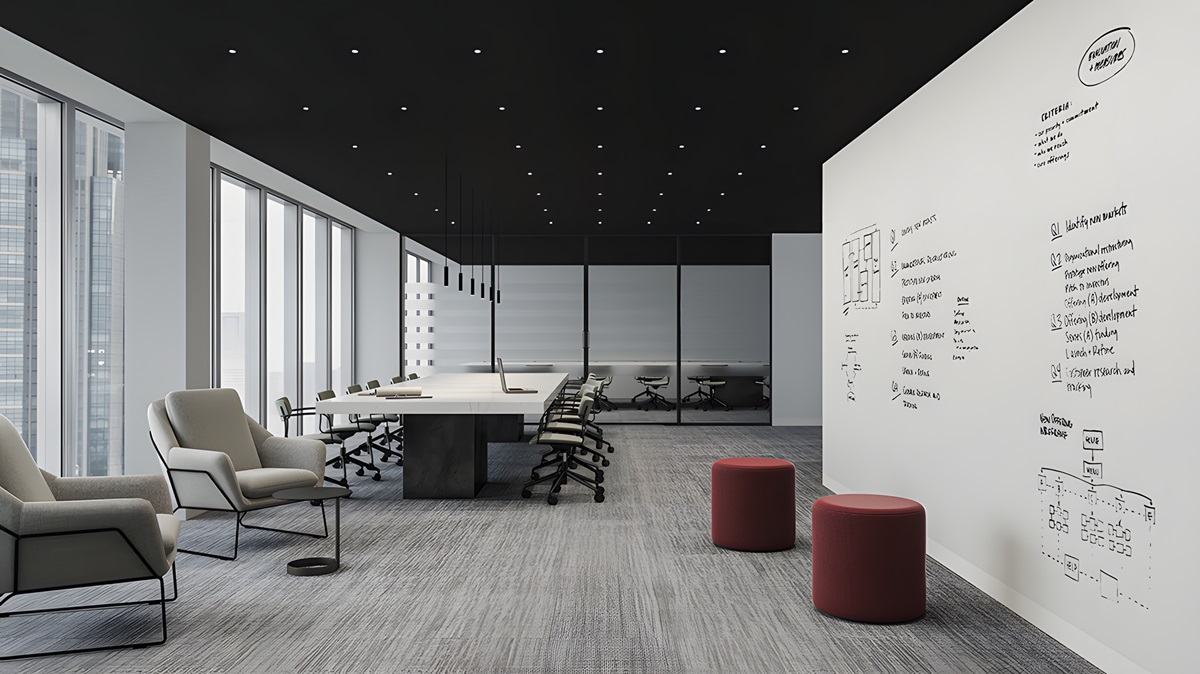

Today, we celebrate the launch of a luminaire family whose smaller size is one of its main strengths. Meet the Petites. The Petite family strikes that perfect balance of compact size, streamlined aesthetics, and high performance. Through their 1" lens apertures, these meticulously engineered downlight, cylinder, and multi-aperture luminaires breathe light into spaces with a quiet, straightforward sophistication.
From a product line whose smallness is its strength, the Petite family stands tall with features that elevate spaces with exceptional precision and quality. Through 1" lens apertures, these true-to-size, meticulously engineered downlight, multi-aperture and cylinder luminaires discreetly breathe light into spaces with straightforward sophistication and plentiful power.
Delivering an impressive 1100 lumens, Petite downlights are designed for new construction and can be tailored to meet the needs of any application as single or multi-aperture fixtures. With fixed, adjustable or wall wash configurations, Petite offers vast design versatility.
The Petite Adjustable configuration option features a cut-cone design and a hot aiming function enabled by the Petite Optical Adjustment Tool, which allows for quick, post-installation tilting up to 30° and rotation up to 355°. Easy, tool-enabled tilting and rotation adjustments can be made while the light is on, allowing users to observe their modifications in real time. The Petite Wall Wash configuration achieves a uniformity ratio of 3.8:1 (max/min)* , delivering smooth vertical illumination with a gentle gradient, and soft visual cut-off.
Petite Downlights showcase the patented* L-VortexTM heat sink technology, which uses a low profile, spiral fin design to create a vortex of air that effectively prevents the LED from overheating and ensures optimal performance. This design not only enhances the lifespan of the luminaire but also allows for seamless integration into any ceiling type whether IC-rated or non-IC-rated.
Petite's L-VortexTM heat management technology is optimized for all plenum conditions and can be installed as IC-rated or Non-IC-rated with the same footprint. Petite Downlights can be integrated into any ceiling material, from drywall, to acoustic tiles to millwork and more.
Whether you need focused beams of light on a specific spatial feature or widespread beam angles to create soft, general illumination, Petite downlights represent solutions across residential, retail, hospitality, offices, and other applications. The luminaires seamlessly integrate into various environments, offering a contemporary touch combining functionality, performance, and stylish design.
Lumenwerx is delighted to unveil Flex and Inflex, the latest cylindrical additions to the sophisticated Aera family of luminaires. While they maintain Aera’s signature clean lines and refined proportions, they are the first Aera cylinders to offer directional adjustability. As such, they enrich the Aera cylinder collection with added versatility, delivering solutions for countless applications—from task lighting to creating the perfect ambiance to highlighting artwork to featuring design elements, and much more—with dexterity and finesse.

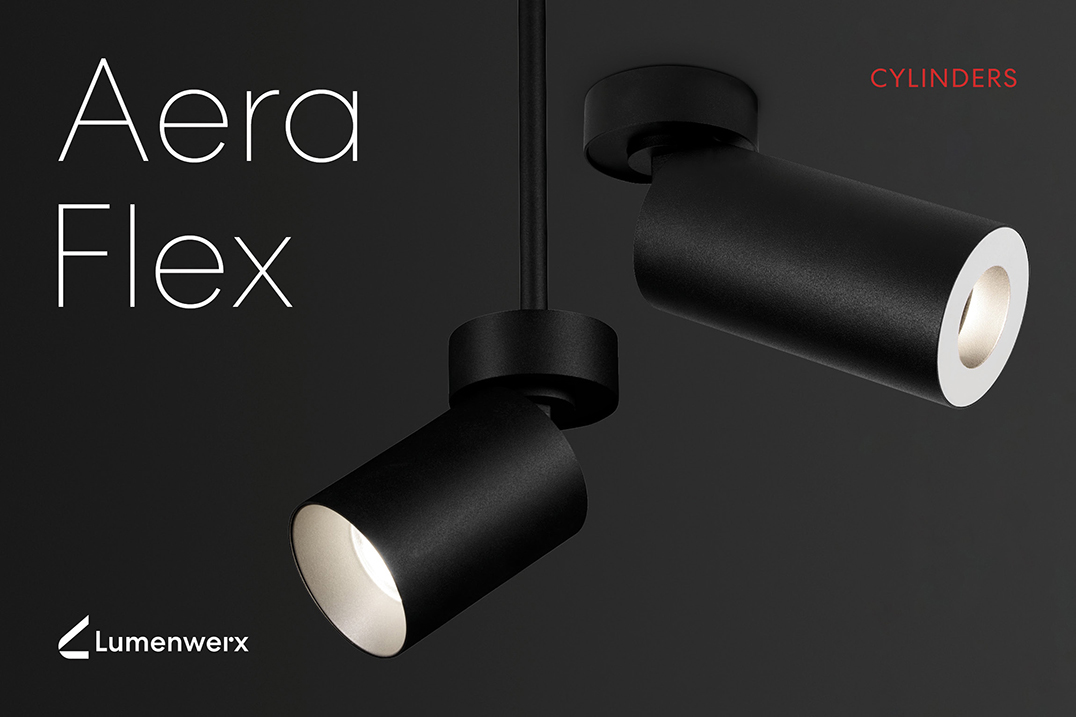

Aera Flex Cylinder
The Aera Flex Cylinder is designed to tilt up to 90 degrees and rotate 355 degrees. Consequently, the luminaire’s placement and positioning reflect the direction and angle at which its light beam will travel. Available in 3″ diameter and 4.5″ and 6″ heights, Flex is mountable as a recessed, surface, pendant, or wall fixture.

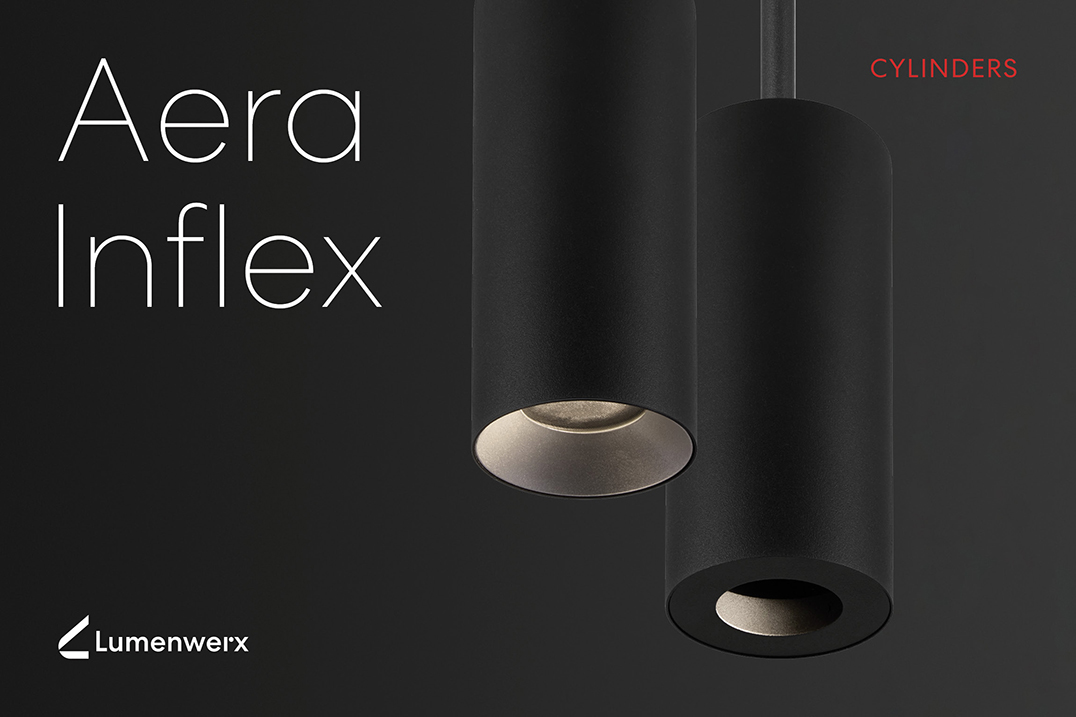

Aera Inflex Cylinder
The Aera Inflex Cylinder is also adjustable but internally—its optic unit can be tilted up to 35 degrees and rotated up to 355 degrees while its cylindrical housing remains in a fixed position. Available in 3″ and 4″ diameters and in 8″ and 12″ heights, Inflex is mountable as a pendant or surface fixture.
HIgh-Quality Optic
As with most of the Aera product line, both Flex and Inflex are equipped with XPoint™ Refraction Technology, which creates soft-lit, visually comfortable environments. This in-house lensing innovation uses micro-optical paths that direct the light beams emitted from the COB (Chip On Board) to intersect and disperse light in a precise direction for each beam angle. XPoint™ Refraction Technology enables excellent performance and delivers zero spill light when illumination exits the cylinder.
ChromaWerx
ChromaWerx Sola is single-channel control that dims output while warming the color temperature in a pre-determined relationship. A simple digital or analog control sends a common signal to dual output digital drivers, which are programmed to adjust a specially populated LED array to emulate the effect of dimming a filament source. Dimming range is programmable but the default option runs from 3500K at 100% of full power to 2700K at 5% of full power.
ChromaWerx Duo is two-channel control. It uses analog or digital protocols for synchronous control of both warm and cool LED arrays, enabling the user to set color temperature and light output. Commonly called “tunable white”, ChromaWerx two-channel control provides the range of warm (2700K) to cool (6500K) color that can be useful for helping to entrain circadian rhythms, stimulate alertness for improved educational and work productivity, and compensate for jet lag, among other applications. The ChromaWerx drivers are programmed to limit maximum light output and power usage across all color temperatures.
PoE
PoE technology can be integrated into many of Lumenwerx’s lighting solutions and product families. For nodes, we always aim for complete integration, but when space is limited, we look for a remote solution that doesn’t compromise the design aesthetic. PoE can be integrated into 95% of our product offering, including our Chromawerx solutions.

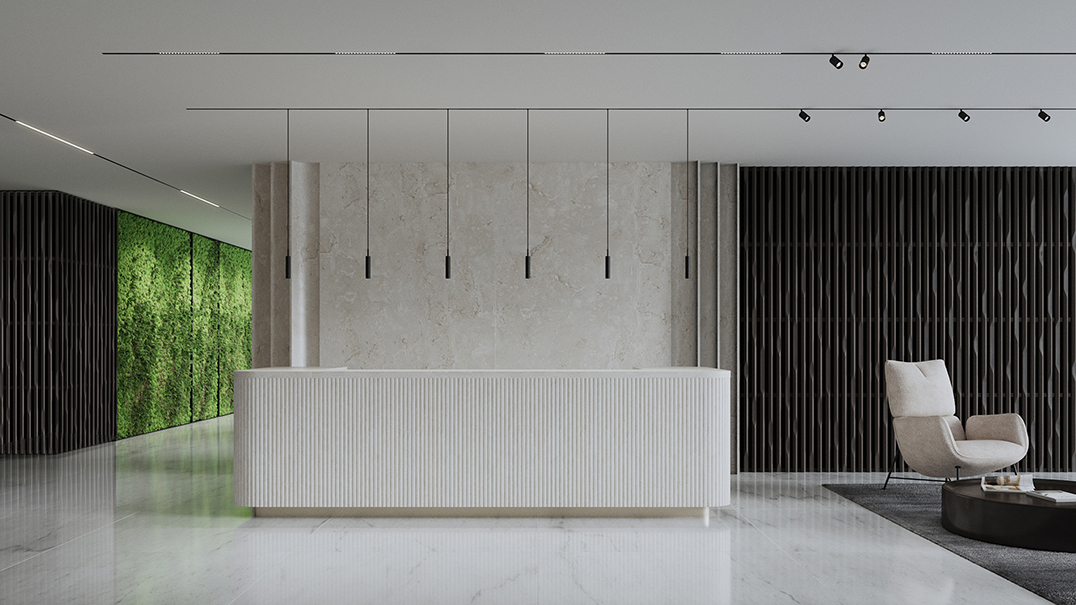

Lumenwerx is pleased to announce the launch of Mini Pivot, a modular track lighting system composed of a diverse array of luminaires, low-voltage tracks, and track connectors. Born of its larger namesake, Pivot, Mini Pivot is a beautiful, finely crafted intelligent system with innovative features distinguishing it from other modular track lighting offerings on the market.
Mini Pivot is a cohesive track lighting system composed of an array of 11+ modules that offer unlimited opportunities to illuminate with precise and powerful lighting solutions. Mini Pivot is offered as a recessed, surface, or pendant-mounted system with all luminaires distributing direct light. The pendant option, in particular, can accommodate modules on both its direct and indirect sides. Modules easily attach to the track with a simple click. For added security, weightier fixtures are designed with a secondary locking mechanism. Blanks modules add a finishing touch by masking unlit track modules.
The Mini Pivot Track is low voltage and accommodates the Mini Pivot Track Modules. While offered as a recessed, surface, or pendant-mounted system with all luminaires distributing direct light, the pendant option, in particular, can accommodate modules on both its direct and its indirect sides. The Mini Pivot Track possesses infinite run capabilities in segments of up to 8 feet with smooth transitions at the joint. It can also branch out to create a multitude of shapes, patterns, and effects for various architectural applications.
With the same crisp and clean aesthetic as its Mini Pivot Track counterpart, Mini Pivot Linear fixtures are track-free lighting units that can be used in conjunction with Mini Pivot Track modules in comprehensive lighting designs, or they can serve as lighting solutions on their own for applications requiring uniform and consistent lighting effects throughout a space. Recessed, surface, or pendant mounted, Mini Pivot Linear delivers direct light distribution with HLO or DPO lensing options.
Precise and Powerful
Mini Pivot’s set of 11+ modules has been thoughtfully curated, offering exceptional lighting flexibility through a range of sharp geometric fixtures that, while small in stature, have been engineered to deliver with power, the scope of which can be easily extended through Bridge modules that mount across two tracks and tap into the power system to serve as additional tracks.
Shapes and Patterns
Extended designs are also possible through shapes and patterns created with the help of the Mini Pivot Linx and Corner connectors. Linx connectors connect pendant-mounted tracks and have a 60-to-180-degree movement range with 2-way, 3-way, and 4-way horizontal options. Meanwhile, Corner connectors connect surface-mounted or recessed-mounted tracks horizontally or vertically from a fixed position and are available with 2-way connecting options.
Along the same lines
Beyond the Mini Pivot Track and with the same crisp and clean aesthetic as its Mini Pivot modular counterparts is the Mini Pivot Linear fixture, a track-free unit that can be mounted alongside Mini Pivot modules to create comprehensive lighting designs, or it can serve as a lighting solution on its own providing uniform and consistent illumination throughout a space. Recessed, surface, or pendant mounted, Mini Pivot Linear delivers direct light distribution with HLO or Prism lensing options.
Perfect fit
As a whole, Mini Pivot is a cohesive track lighting system capable of addressing multiple applications simultaneously. Although deceivingly diminutive, Mini Pivot offers big design energy. For more information, consult the brochures for Mini Pivot and Mini Pivot Linear.
