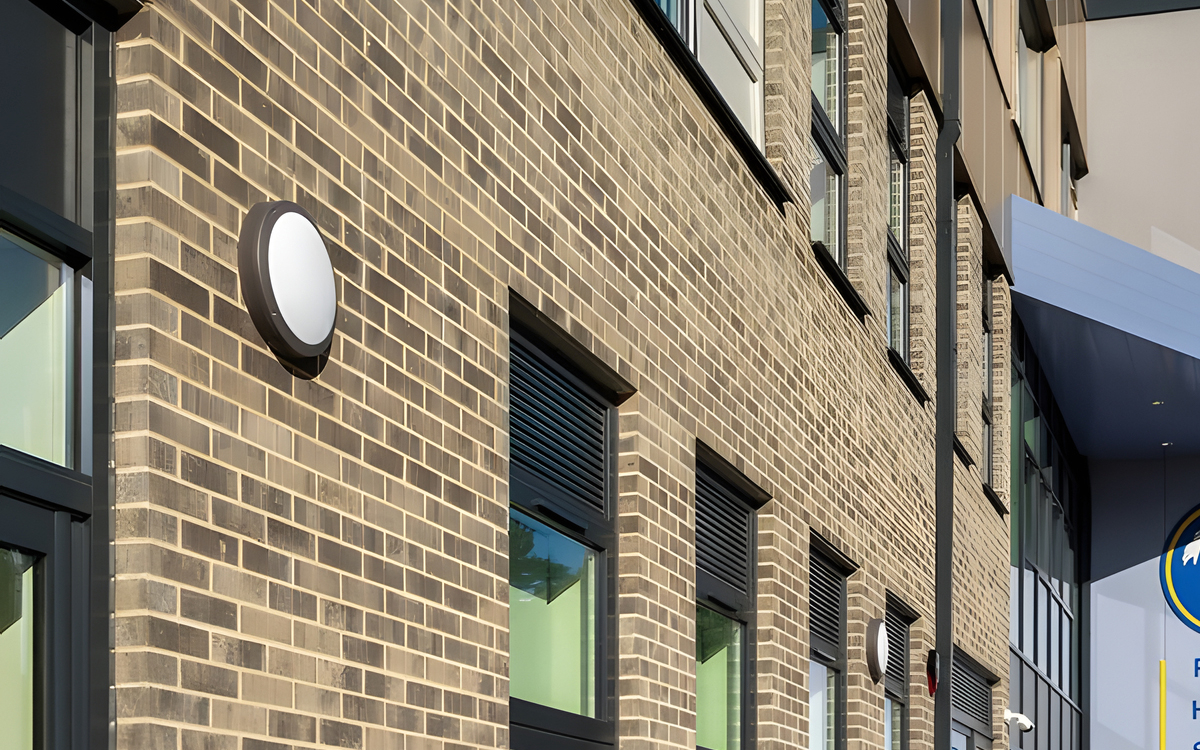

The TRILUX Skeo Circ LED is a robust, round surface-mounted luminaire designed to provide outstanding visual comfort, safety, and reliability in outdoor applications. Engineered for both wall and ceiling installation, this decorative LED bulkhead light is an excellent solution for façades, building entrances, and other exposed outdoor spaces where both aesthetics and performance matter. It is built to withstand harsh weather conditions in non-canopied areas and offers an IP65 protection rating along with IK10 impact resistance, making it particularly suited for environments that demand durability. Ball-impact resistance according to DIN 18032-3 further ensures its suitability for sports facilities and other high-impact zones.
Featuring a clean, modern design, Skeo Circ LED is available in two construction sizes and offers a selection of interchangeable covers, allowing it to harmonize seamlessly with a variety of architectural styles and lighting schemes. Beyond its visual appeal, the luminaire incorporates an intelligent optical and LED system that enhances both functional and ambient illumination. Its rotationally symmetric wide beam distribution ensures broad, uniform coverage, ideal for enhancing safety and visibility around buildings. This versatility makes it an excellent choice for diverse sectors including industrial facilities, office complexes, retail entrances, and public outdoor spaces.
A defining feature of the Skeo Circ LED is its built-in flexibility. The luminaire’s luminous flux and light color can be easily adjusted via a DIP switch, even after installation. With selectable color temperatures of 3000 K and 4000 K and luminous flux levels between 2050 and 2100 lumens, the Skeo Circ adapts effortlessly to different lighting needs. This multilumen and multicolour functionality, combined with a luminous efficacy of up to 105 lm/W and a CRI above 85, ensures excellent energy performance and color rendering. The LED system achieves a mean rated service life of 50,000 hours at L80 (tq 25 °C) and meets EU Ecodesign standards for replaceability and sustainability.
Constructed from die-cast aluminium, the luminaire body is both lightweight and resilient. It is coated in anthracite (similar to RAL 703) for a refined appearance, while the opal PMMA cover is highly impact-resistant, helping the fixture maintain its clarity and integrity over time. The Skeo Circ measures 350 mm in diameter and 83 mm in height, with a total weight of 3.1 kg, ensuring ease of installation without sacrificing structural strength.
Electrically, the Skeo Circ LED includes a digitally dimmable DALI control gear unit compliant with the DALI-2 standard (EN 62386). The luminaire is suitable for operation on a 230V DC power supply and includes a 5-pole terminal for mains connection and further wiring (up to 2.5 mm²). It offers surge voltage protection of 1 kV in differential mode and 2 kV in common mode, enhancing reliability across a wide range of operating conditions. The control gear unit is replaceable and compliant with the latest EU regulations, ensuring long-term maintainability. Like all TRILUX luminaires, the Skeo Circ LED carries the CE mark and complies with all applicable product safety legislation and EU directives.
Whether used in industrial settings, around office buildings, retail complexes, or public pathways, the Skeo Circ LED delivers high-performance illumination with refined aesthetics and enduring construction. It is a lighting solution that adapts to both environmental challenges and evolving lighting requirements—delivering functionality, style, and sustainability in one compact form.
