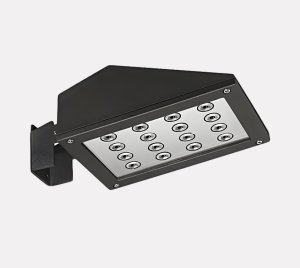

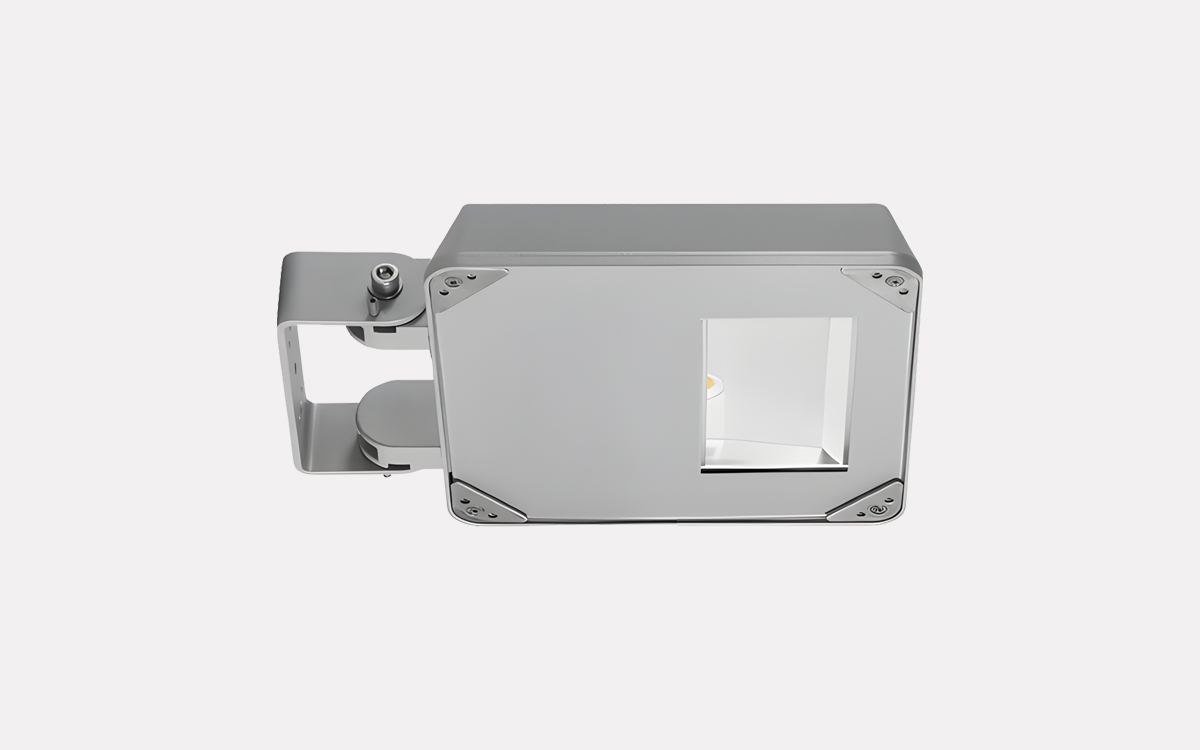

The Glamox O54-W is a sleek, slim-profile wall-mounted LED floodlight designed for versatile outdoor lighting applications. It features an asymmetric light distribution, making it particularly effective for illuminating building façades with precision. In addition to wall mounting, the O54-W can also be installed on poles with a top diameter of 60 mm, using separately ordered single or twin accessory brackets, which expand its flexibility in various outdoor environments.
Constructed from durable die-cast aluminium, the luminaire’s housing is finished with a double-layer aluminium grey polyester powder coating that ensures excellent resistance to weather and corrosion. The unit includes a tempered safety glass cover for enhanced protection, sealed with a silicone gasket to provide reliable waterproofing. Stainless steel screws secure the components, contributing further to its robust, long-lasting design. The mounting bracket is made from galvanized and painted steel, built to withstand outdoor conditions.
The O54-W offers two driver options: a fixed output high-frequency driver and a DALI dimmable driver with a range from 100% to 10%, allowing for adaptable lighting control and energy efficiency. Surge protection up to 6 kV is integrated to safeguard the luminaire against electrical disturbances. The optic is a high-quality aluminium asymmetric reflector, engineered to deliver controlled light distribution that minimizes glare and maximizes effective illumination.
This floodlight delivers impressive output ranging from 7,000 to 17,500 lumens, available in color temperatures of 3000 K or 4000 K. It maintains a color rendering index (CRI) of Ra 80 with MacAdams 3 color consistency, ensuring natural and uniform light quality. The O54-W is supplied with an M20 cable gland featuring an anti-condensation valve and a 50 cm pre-assembled rubber cable without a plug, designed for straightforward electrical connection.
For installations on poles, compatible single and twin brackets for Ø60 mm poles must be ordered separately. The wind-exposed surface area varies by model, with the O54-W190 having 0.05 m² and the O54-W270 measuring 0.10 m², considerations important for mounting in exposed outdoor locations. Overall, the Glamox O54-W combines durability, flexibility, and efficient performance, making it ideal for architectural façade lighting and pole-mounted outdoor illumination.
