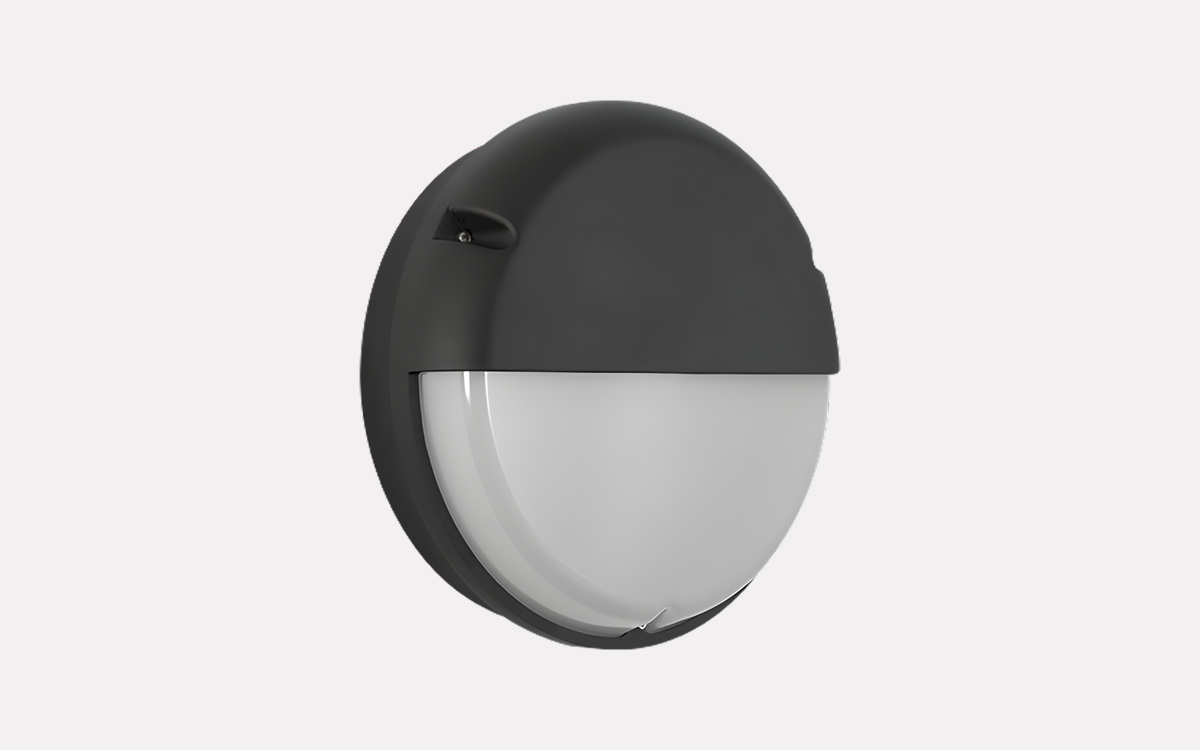

The Corrilux® 320C Hood is a robust, circular wall-mounted luminaire designed to withstand harsh outdoor conditions. Engineered for IP65 and IK10 ratings, it delivers both water and impact resistance, making it a durable solution for demanding environments. The die-cast aluminium body and protective front hood, paired with a satin polycarbonate diffuser, create a sleek yet tough fixture well-suited for mounting above exterior doorways, on stairwells, or along building perimeters. The hood design also helps minimize upward light pollution, ensuring compliance with dark-sky principles.
This fixture uses high-efficiency LEDs, delivering either 2200 or 3000 lumens with a consistent 4000K colour temperature and CRI of 80, with a 3000K version available upon request. The satin polycarbonate diffuser provides uniform illumination and visual comfort. Drivers are available in fixed output (HF) and DALI dimmable variants, supporting a wide dimming range from 100% down to 1%. With a driver lifetime of up to 100,000 hours at 25°C ambient temperature, the luminaire ensures long-term performance with minimal maintenance.
The Corrilux 320C Hood is also available with a variety of emergency lighting options, including Standard (S), Self-Test (ST), and Self-Test Wireless (ST-W), each providing three hours of emergency operation. Additionally, integrated energy-saving sensor options include the SMC-SEN standalone microwave sensor for corridor dimming, the CMW-SEN central monitoring sensor with wireless communication, and the STA-SEN standalone twilight sensor.
Mounting is straightforward, with compatibility for BESA box installations or using provided screw hole knockouts. The housing is available in black or silver grey polyester powder-coated finishes, and electrical connections are supported via a 3-, 4-, or 5-pole terminal block (2 x 2.5 mm²), allowing flexibility for through wiring in complex installations. The Corrilux® 320C Hood is a high-performance, vandal-resistant luminaire built for reliability in exterior architectural lighting applications.
