The Lumena Plus planar floodlight is designed to deliver outstanding lighting performance across a wide range of large-scale industrial applications, including parking lots, harbors, shipyards, warehouses, and logistics zones. Offering a versatile selection of sizes, beam characteristics, luminous flux packages, and mounting options, it provides an ideal lighting solution tailored to meet the exact requirements of diverse environments. Its high system efficiency—reaching up to 163 lm/W—combined with an exceptional service life of up to 100,000 hours, ensures energy-efficient, low-maintenance operation over the long term. Whether used as a standalone unit or integrated into intelligent lighting systems, Lumena Plus excels in functionality and sustainability.

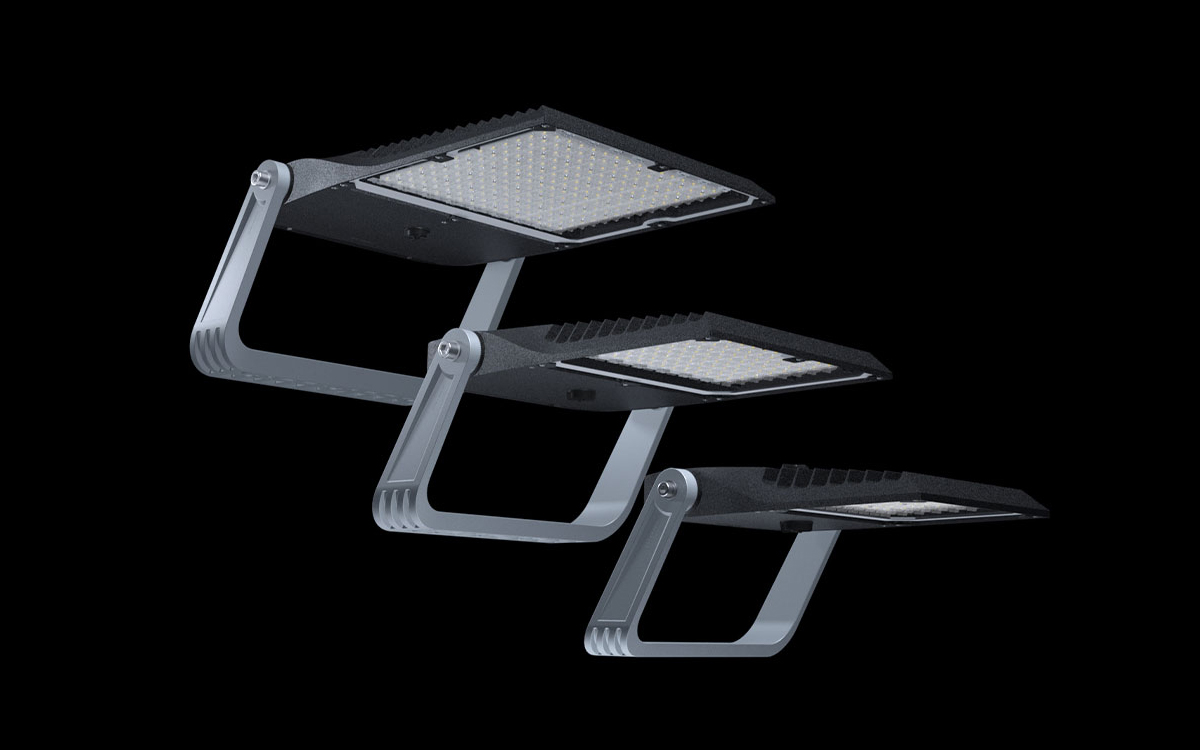

As a wide-beam floodlight available in three distinct sizes, Lumena Plus uses advanced MLT (Multi-Lens Technology) optics to deliver precise light control for every application. These custom-designed optics ensure high luminous efficacy and low glare, even at high output levels. Two standard light distribution curves are available, with six additional beam characteristics offered upon request. The result is optimal lighting performance, tailored precisely to installation heights, area size, and environmental conditions, without upward light emission—meeting DarkSky criteria.
The luminaire is built for future-proof lighting strategies. Equipped with up to two Zhaga interfaces, Lumena Plus supports seamless integration with light management systems, sensors, and IoT modules. This enables intelligent features such as daylight-responsive lighting, smart dimming profiles, and adaptive switching patterns. Outdoors, these capabilities translate into substantial energy savings and reduced carbon emissions, supported by the luminaire’s efficient thermal management system.
Lumena Plus is engineered with a modular design that facilitates easy upgrades, conversions, and maintenance—supporting circular economy goals. The optical precision of the MLT lens system reduces light spill and improves ecological compatibility, while the IP66-rated housing keeps insects and contaminants out, further supporting long-term durability. Built for harsh environments, the floodlight withstands demanding conditions such as snow loads up to 400 kg/m², equivalent to snow depths of 1.5 meters in snow load zone 4 (Germany). Extensive vibration and pressure load tests confirm its robust performance under constant stress.
Installation is streamlined with the luminaire delivered fully pre-assembled. Thanks to a flexible mounting bracket with three holes, it allows both central and dual-point attachment for surfaces such as walls, ceilings, or cross-arms—without the need for extra accessories. The projector head can be tilted and locked easily with toothed positioning, enabling quick and accurate alignment.
The Lumena Plus is particularly effective in environments requiring high luminous output and consistent light distribution. In car parks, it ensures safety and uniformity with reduced pole requirements thanks to flexible mounting. In ports and shipyards, the high lumen output—up to 82,000 lm—delivers powerful illumination over vast areas from elevated positions. Storage and logistics areas also benefit from customized light distributions and smart lighting controls, supporting safe operations while optimizing energy use, especially in zones with low traffic.
This floodlight is compliant with EN 60598 standards and is designed to endure wind loads as per EN 1991 (Eurocode) for speeds up to 30 m/s in terrain category 1. Common application areas include container yards, construction sites, terminals, power plants, sports facilities, and accent lighting scenarios.
Technically, the Lumena Plus is fitted with a robust LED system comprising 56 MLT LED modules, each with four LEDs, delivering up to 75,000 lumens at a connected load of 512 W and a maximum luminous efficacy of 146 lm/W. Standard light color is neutral white (4000 K), with options for Tunable White (2200 K to 4000 K) on request. The LEDs maintain constant luminous output throughout their lifespan (CLO), with a high color rendering index (CRI Ra > 70) and initial color tolerance within 5 SDCM.
The luminaire body is constructed from die-cast aluminum and paired with a flat, non-laminated safety glass cover. It comes in a dual-color scheme—anthracite (similar to DB 703) and silver-grey (similar to RAL 9006)—with custom RAL and DB options available. The housing is powder-coated and weather-resistant, with an IK09 impact protection rating and IP66 ingress protection. The entire unit measures 808 mm x 590 mm x 320 mm and weighs 24.3 kg.
Electrically, the Lumena Plus includes a DALI-2 compatible electronic control gear unit that supports digital dimming. It offers surge protection up to 6 kV (differential mode) and 10 kV (common mode) and complies with EU safety and performance directives, bearing both CE and ENEC certifications. The replaceable LED system and control gear also meet EU Ecodesign Directive 2019/2020 requirements, supporting ease of maintenance and environmental responsibility.
With advanced technology, long-term reliability, and smart integration capabilities, Lumena Plus represents a new standard in high-performance industrial floodlighting—efficient, durable, adaptable, and ready for tomorrow.
