The 9301K side-bracket mounted luminaire combines a classic, timeless design with advanced technology to deliver reliable and visually appealing outdoor lighting for low mounting heights. Compact in form yet powerful in performance, it serves as the smaller counterpart to its larger family member, forming a complete and cohesive product line ideal for residential streets, pedestrian zones, and other low-traffic areas. Designed with flexibility in mind, the luminaire supports both traditional lamp technologies and modern LED systems, bringing streets and outdoor spaces into the era of energy-efficient lighting.

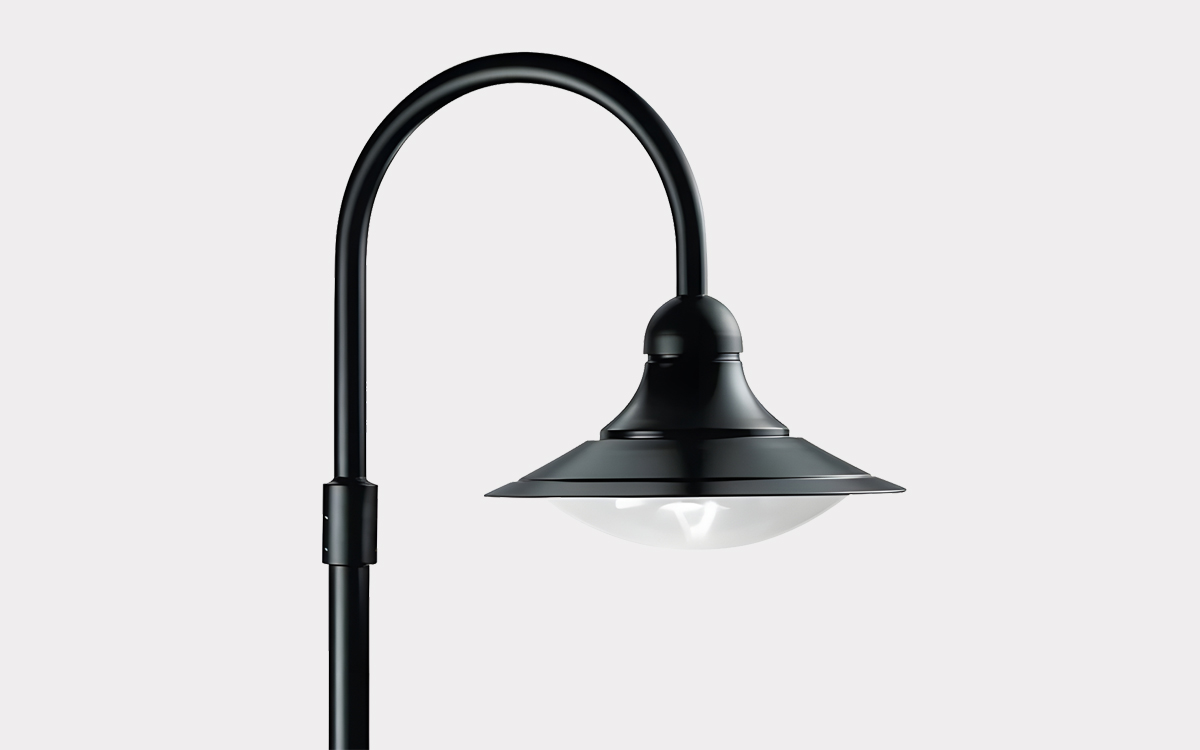

The curved, post-top LED version of the 9301K luminaire is equipped with a smart, intuitive identification label featuring a QR code for quick access to product information. Designed for today’s digital infrastructure, it includes SLR (Smart Lighting Ready) compatibility, enabling the later addition of components for light management systems. Standardized Zhaga-compliant interfaces are integrated into the luminaire head and lower cover, supporting seamless upgrades and intelligent lighting controls.
Built for widespread outdoor use, the 9301 K··· is ideally suited for a variety of urban and residential environments, including residential roads, collection roads, low-traffic streets, pathways in parks and green areas, arcades, stairways, access areas, and car parks. Installation can be carried out either via bracket or wall mounting, offering the flexibility needed for diverse architectural contexts.
At its core, the luminaire incorporates an optical system based on Multi-Lens Technology (MLT), with UV- and temperature-resistant lenses that ensure high performance over time. The luminaire offers an asymmetric wide light distribution, ideal for roadways compliant with P lighting classes. Additional beam patterns are available upon request for tailored light distribution. Rear or side shields can be retrofitted as separate accessories to enhance light control.
The LED system is designed for high efficiency and long life, operating at 4600 lumens with a connected load of 34 W, delivering a maximum luminous efficacy of 135 lm/W. The system includes 8 LED modules, fixed in luminous flux and warm white light color at 3000 K, with a CRI above 70 and a MacAdam color tolerance ≤ 5 SDCM. Versions with a 3-level switch for adjustable luminous flux are available upon request. The LED system features CLO (Constant Lumen Output) for consistent brightness throughout its lifespan, and the L80 lifetime at 25 °C is rated at 100,000 hours. All components meet EU Ecodesign requirements, and the light source is fully replaceable.
Structurally, the luminaire is built for resilience and longevity. The canopy is made from corrosion-resistant aluminum, and an optional sea-weather coating is available for coastal or maritime climates. The diffuser is crafted from impact-resistant clear PMMA, securely attached with a stainless steel screw. The fixture offers excellent protection with a luminaire IP23 rating, and an IP65 rating for the lamp compartment, while achieving IK10 impact resistance. The total windage area is 0.090 m², and the luminaire weighs 5.5 kg. It supports ambient operating temperatures up to 25 °C, and is designed to withstand basic wind speeds up to 30 m/s in compliance with EN 1991 (Eurocode) for terrain category 1. Snow loads up to 1 kN/m² and icing up to 2 cm at standard mounting heights are also considered in the planning.
Electrical connection is simple and secure, featuring a removable gear tray with plug connection and 3-pole socket supporting cables up to 2.5 mm². A built-in cable strain relief system ensures long-term reliability. The electronic control gear is switchable, fully replaceable, and compliant with EU Ecodesign Directive 2019/2020. Surge protection is provided with 6 kV differential mode and 10 kV common mode resistance. The luminaire bears the CE mark and is ENEC certified by an independent testing authority, guaranteeing compliance with all applicable EU product safety regulations.
TRILUX backs the 9301K with a strong after-sales commitment: the luminaire is available for 10 years, and spare parts—including LED modules, control gear, and optical components—are guaranteed for 15 years from the date of invoice. Reasonable product evolutions and design updates may occur as part of ongoing technical progress.
Mounting accessories include an aluminum bracket with die-cast components, finished in deep black (similar to RAL 9005) with a highly weather-resistant, powder-coated surface. The post spigot diameter is 76 mm, and a connection module is pre-wired for double or triple configurations, removable without tools. Wall-mounted versions include a bracket with a wall plate featuring four fixing holes (Ø 10 mm) for secure installation.
Altogether, the 9301K luminaire offers a durable, adaptable, and future-ready solution for modern urban and pedestrian lighting applications. With strong performance metrics, compliance with rigorous safety and environmental standards, and built-in support for intelligent lighting systems, it represents a forward-thinking choice for municipalities and developers alike.
