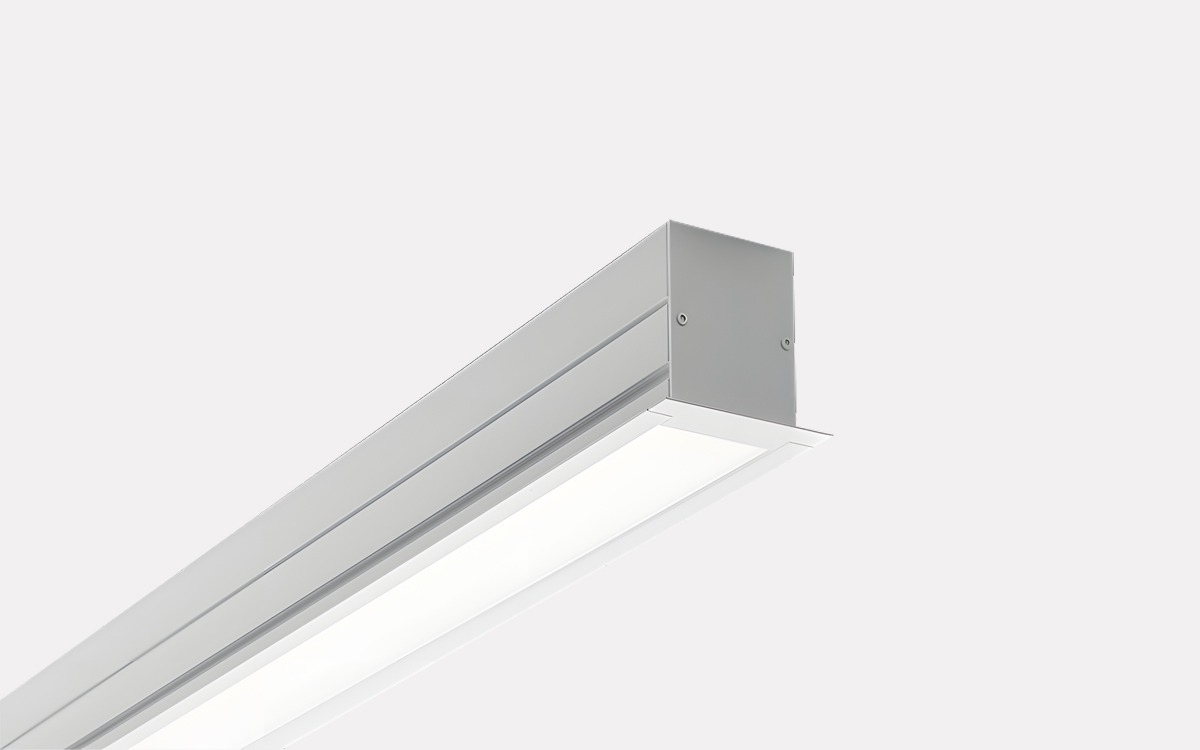

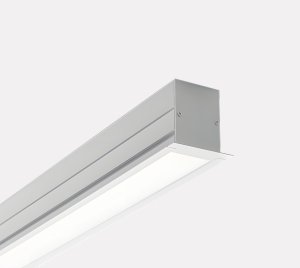

The C80-R G2 is a slim and sophisticated linear recessed luminaire crafted from high-quality aluminium, designed to blend minimalist aesthetics with exceptional functionality. Engineered for modern architectural spaces, it offers a range of lumen outputs and optical configurations to meet diverse lighting requirements with efficiency and style. Its clean profile and recessed mounting make it an excellent choice for environments seeking seamless integration of high-performance lighting.
Designed for recessed installation, each C80-R G2 luminaire is supplied with end caps and mounting brackets for secure, flush positioning within the ceiling. It comes in three standard lengths—1200 mm, 1800 mm, and 2400 mm—offering installation flexibility to suit a variety of layouts. The luminaire is available in low, medium, and high output versions, delivering between 2000 and 8000 lumens to accommodate different lighting intensities and tasks.
For smart control and energy efficiency, the C80-R G2 supports integration with multiple sensor options. These include the SPR-SEN for single offices, MPW-SEN for multi-office groupings, and CPW2-SEN for building-wide management systems. Refer to the user manual for full sensor specifications and integration guidelines.
A wide selection of optics enhances the versatility of the C80-R G2. Options include an opal diffuser (OP), microprismatic diffuser (MP), drop-out diffuser (OD), asymmetric diffuser (ASY), silver matt reflector (SM), and white matt reflector (WM). The OP and MP variants are IP44/20 rated and compliant with ball impact resistance standards, making them suitable for areas with higher physical activity levels, though installation ceiling type may influence this resistance.
Lighting performance is delivered through high-quality LEDs with options including 830, 840, and a tunable white range from 2700K to 6500K (CCT 827–865). All versions have a MacAdams 3 color consistency rating, and CRI 90 is available upon request for applications where color fidelity is critical.
The luminaire body and end caps are made of extruded aluminium and finished in white, reinforcing its modern and refined appearance. Emergency lighting options include 1- and 3-hour durations in standard or addressable DALI configurations, offering additional functionality for safety and compliance.
The C80-R G2 combines elegant recessed design with advanced lighting performance, making it a smart, stylish choice for offices, commercial interiors, and public buildings requiring reliable and adaptable illumination.
