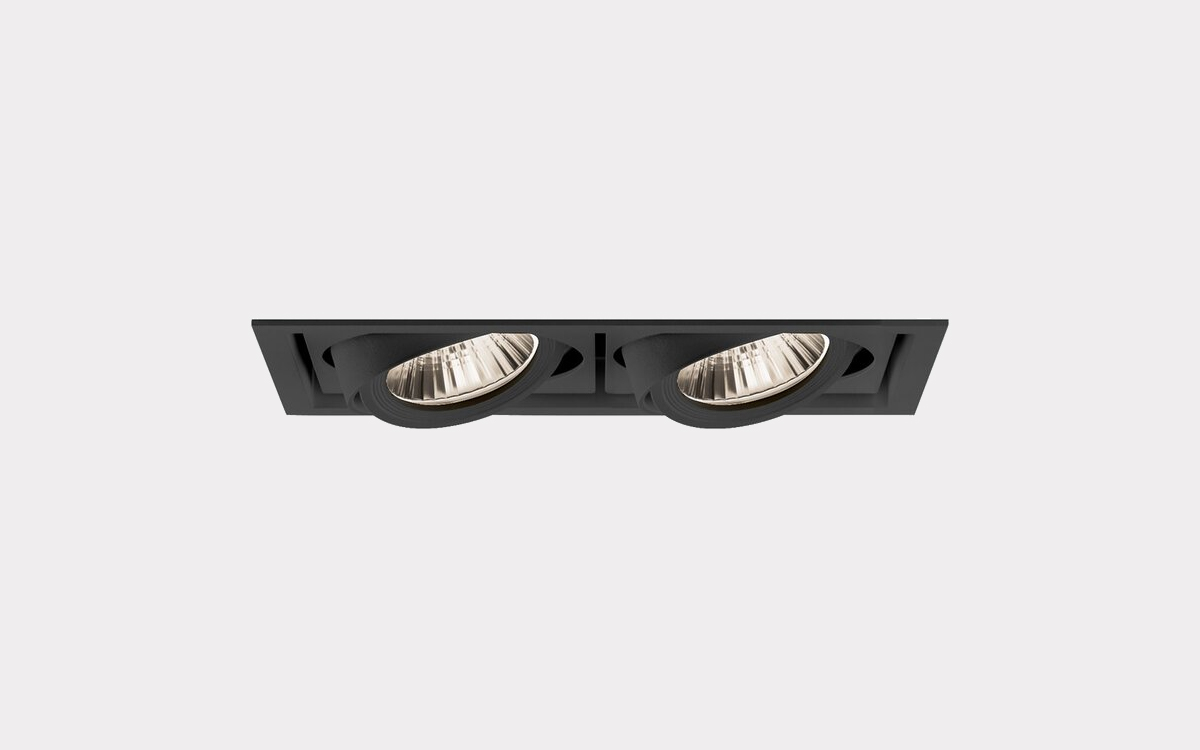

The Sistema Compact is a recessed LED spotlight designed with a flexible construction that allows the luminaire to swivel in and out with ease, offering adaptable lighting direction and visual flexibility in architectural settings. With a rectangular form and a minimalist design, this spotlight integrates seamlessly into modern ceiling layouts while delivering high performance and energy efficiency.
Installation is simple and reliable, facilitated by a folding spring mounting system that accommodates ceiling thicknesses from 1 mm to 25 mm. This makes the Sistema Compact an ideal solution for both new construction and retrofit applications where installation speed and precision are important.
The optical system incorporates a high-performance 3D faceted reflector that produces a medium flood beam distribution with a 27° beam angle. This optic design ensures targeted and balanced illumination, making it suitable for a range of applications requiring both clarity and subtlety in light output.
Equipped with a fixed LED system, the luminaire delivers a luminous flux of 4,715 lumens while consuming only 36 watts of power, resulting in a luminous efficacy of 131 lm/W. It emits a neutral white light with a color temperature of 4000 K and a color rendering index (CRI) above 80, ensuring natural and accurate color perception in illuminated environments. The fixture supports consistent performance over time, offering a long service life of 50,000 hours at L80 (25°C).
Constructed from durable die-cast aluminium and coated in jet black (RAL 9005), the housing is both aesthetically sleek and functionally resilient. It measures 315 mm in length, 175 mm in width, and 110 mm in height, with a total weight of 2.2 kg. The Sistema Compact meets Safety Class II standards and carries an IP20 protection rating, making it suitable for dry indoor applications. Although it has no designated impact resistance (IK00), its robust construction ensures long-term integrity in standard conditions.
The luminaire is equipped with a Wieland GST 18i3 rapid connector for quick electrical connection and operates on a standard voltage of 230V, 50/60 Hz. The integrated electronic control gear is DALI-2 compliant, allowing seamless integration into modern digital lighting management systems. Its DALI dimmability and UGR rating of 19.3 (UGRC0 and UGRC90) ensure compatibility with visual comfort requirements in workspaces and public areas.
Combining architectural flexibility, efficient lighting performance, and smart control compatibility, the Sistema Compact is a versatile choice for projects demanding refined illumination and ease of installation.
