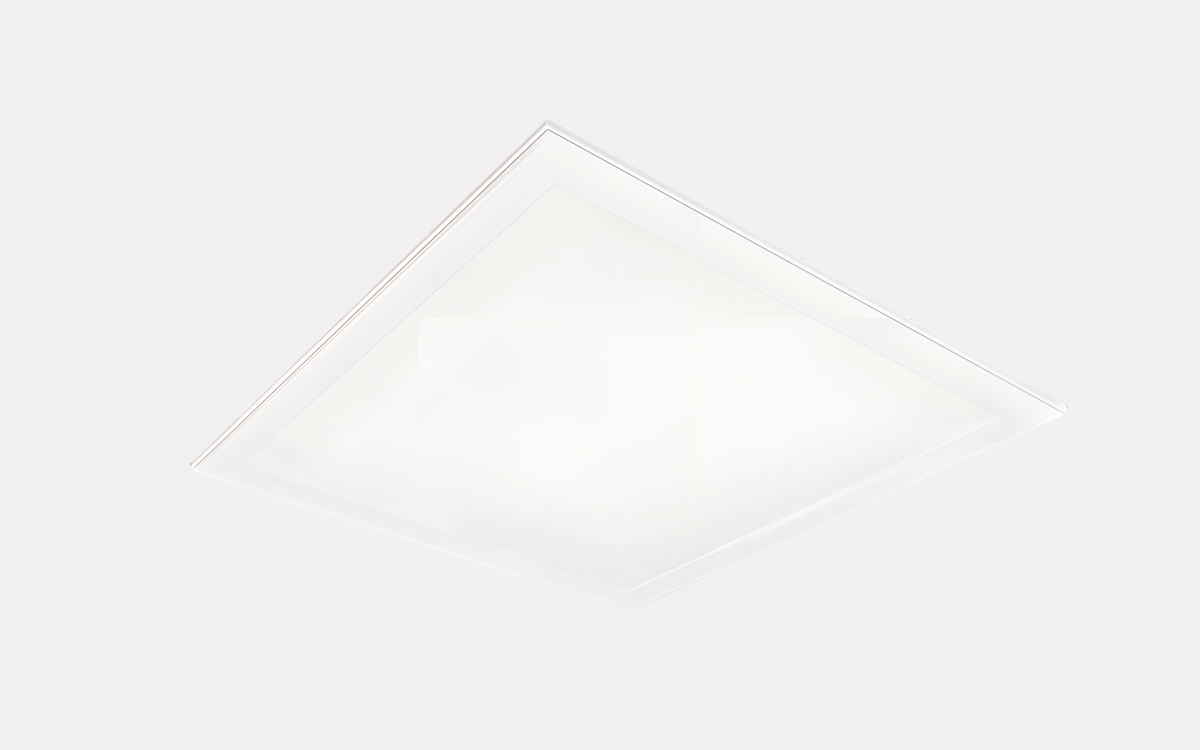

The Glamox C64-R is a versatile recessed luminaire certified according to ISO 14644-1 by Fraunhofer IPA, having undergone rigorous cleanability testing to achieve the prestigious "Fraunhofer Tested Device-certification." Additionally, it meets the requirements of EN 60598-2-25 for use in clinical areas of hospitals and healthcare buildings. This luminaire is well suited for demanding environments such as laboratories, operating theatres, food processing facilities, and commercial kitchens.
Designed for easy installation, the C64-R mounts recessed from below in both modular and plasterboard ceilings. The luminaire features a cover made from either 4mm heat soak tested glass or 4mm polycarbonate, both engineered to be smooth and gap-free, preventing the accumulation of bacteria and dust. The glass cover is especially robust, able to withstand frequent cleaning with strong agents, while the polycarbonate option is ideal for areas where glass is unsuitable, such as food processing facilities.
The C64-R boasts high ingress protection with an IP65 rating from the room side and IP54 from above. This is achieved through extensive sealing with gaskets between the steel housing, the ceiling, and the aluminum frame and cover, ensuring durability and resistance to contaminants. Its microprismatic optics deliver high efficiency, excellent light output, and low glare, creating a soft luminance transition that enhances the room’s overall appearance. For applications requiring superior color accuracy, the luminaire is also available with a high color rendering index (CRI 90).
To meet the strict safety requirements of psychiatric wards and prisons, the C64-R can be supplied with anti-ligature properties. The IK10-rated polycarbonate cover is secured with screws, and the luminaire has no gaps or protrusions where ligatures could be attached. Its robust design prevents tampering or removal, making it highly secure in sensitive environments.
Energy efficiency is supported through compatibility with all Glamox hardwired light management systems, enabling lighting adjustments based on presence detection and daylight availability to save costs. The C64-R also offers tuneable white technology, allowing the light to shift across different color temperatures to mimic natural daylight. This Human Centric Lighting (HCL) approach supports circadian rhythms and enhances human performance.
For psychiatric institutions, the C64-R can be equipped with blue-blocked light, a feature believed to promote healthier sleep patterns and reduce manic symptoms by limiting exposure to blue wavelengths during certain times of the day.
The luminaire’s LED light source provides output ranging from 4000 to 7500 lumens, available in 3000K or 4000K color temperatures, with CRI options of 80 or 90 and MacAdams 3 color consistency. It supports tuneable white (CCT) and blue-blocked light (BBL) variants. The standard optical setup includes a 4mm heat-soaked glass cover in front of microprismatic optics, while the IK10 version uses a clear polycarbonate front. The driver options include high-frequency (HF) or DALI, with a lifespan of up to 100,000 hours at Ta 25°C.
Mounting is performed from below, suitable for modular and plasterboard ceilings. The body is constructed from white painted steel and carries an IP65 rating. Emergency lighting options are available, including standard, self-test, or DALI systems with 1 or 3 hours duration. Overall, the Glamox C64-R provides a robust, hygienic, and flexible lighting solution for critical environments requiring strict contamination control and enhanced safety features.
