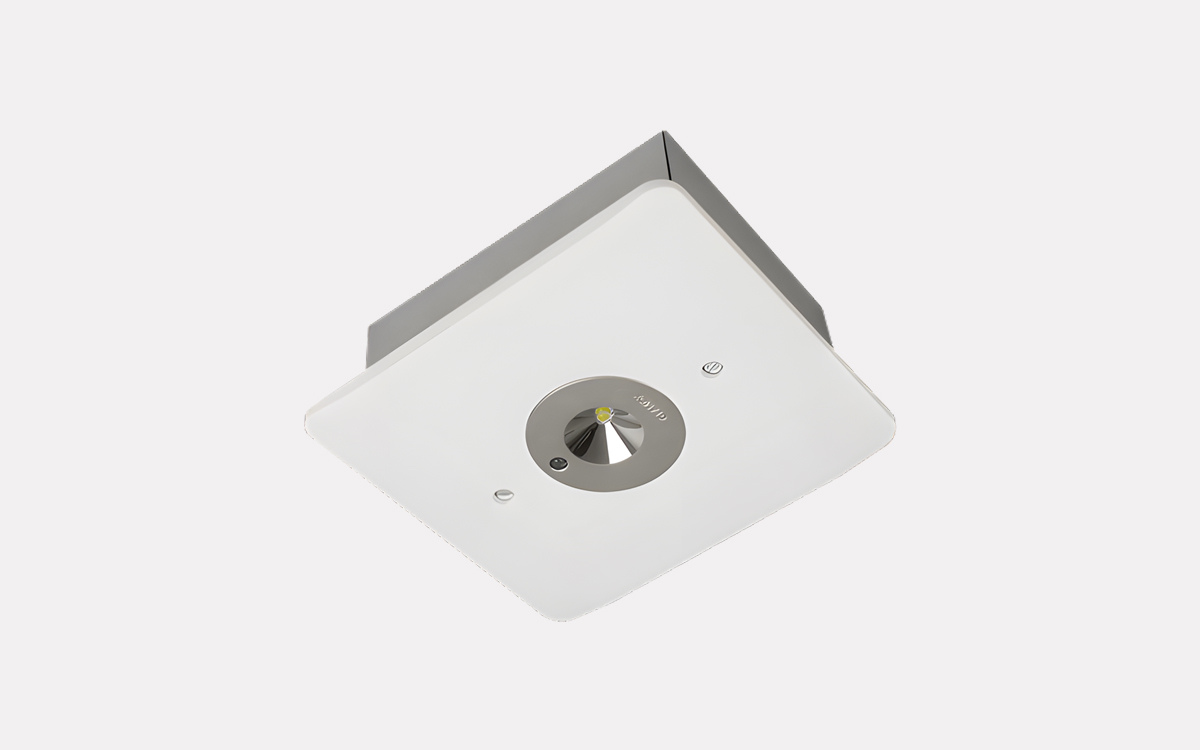

The E85-R(M) is a recessed-mount emergency and escape route luminaire built on advanced LED technology. Designed for maritime and industrial safety applications, this fixture offers dependable emergency illumination for corridors, open areas, and anti-panic zones. Its robust housing combines die-cast aluminum with a zinc-coated steel component plate, ensuring long-term durability and resilience in demanding environments.
This LED emergency light is available with two optical configurations: the C reflector, optimized for corridor lighting and defined escape routes, and the WB wide beam reflector, which provides broader area illumination suitable for anti-panic applications. The white powder-coated finish (RAL 9016) complements a range of ceiling and interior finishes, while other colors can be supplied upon request to suit specific design requirements.
Engineered in accordance with DNV maritime classification standards, the E85-R(M) also adheres to relevant IEC/ISO regulations, confirming its suitability for ships and offshore installations. It is designed for simple and secure installation using four screws, and for fire-rated ceilings classified B0 or B15, specific instructions can be found in the service manual.
The fixture integrates a reliable electronic ballast operating on 220–240V at 50–60Hz, and is available in multiple emergency lighting configurations. Users can choose between a 1-hour (E1) or 3-hour (E3) integrated battery, or opt for a centralized 230V battery system (Z). Control options include Standard (S), Self-test (ST), and DALI addressable systems, offering flexible integration into safety and monitoring networks.
Electrical connections are supported by a back plate with a double grommet and two knockouts, located on either side of the unit. A 5x2x2.5 mm² push-in terminal block simplifies wiring during installation, supporting efficient connection for both power and control systems.
The E85-R(M) combines compact form, reliable emergency functionality, and versatile optics, making it a trusted solution for safety-critical environments requiring recessed emergency lighting.
