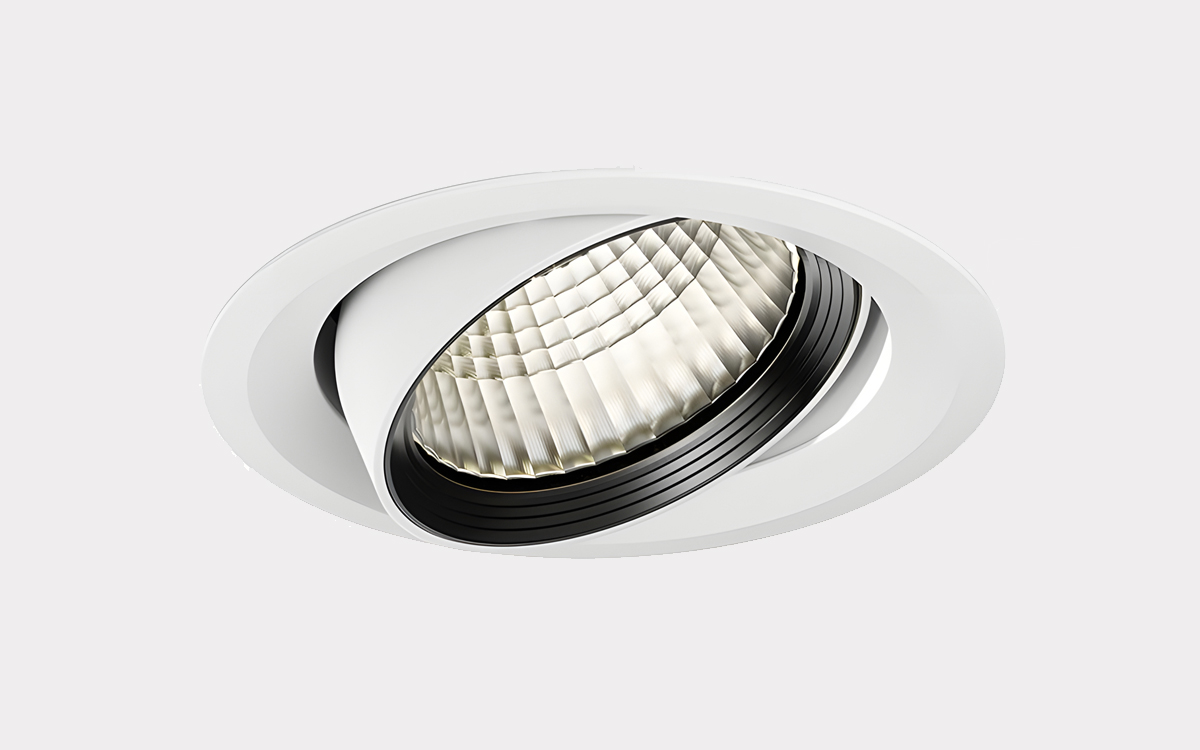

The Agira Plus is a powerful and highly adaptable recessed LED luminaire that seamlessly blends downlight and directional spotlight functionality. Designed to deliver either ambient or accent lighting, Agira Plus offers targeted illumination across all room surfaces while maintaining a discreet visual profile. Even when tilted up to 30°, the luminaire’s precision-engineered design prevents unwanted light reflections at its edge, ensuring clean and glare-free light output. With luminous flux packages reaching up to 7000 lumens and availability in a full range of white and special light colors, Agira Plus is ideal for implementing cohesive lighting concepts in spaces with varying ceiling heights and sizes, all using a single luminaire type.
As a high-performance recessed directional spotlight, Agira Plus enhances lighting versatility by combining the benefits of a gimbal-mounted fixture with the visual clarity of a traditional downlight. The luminaire’s spot head can be rotated 355° and tilted 30° in both directions, allowing for precise and flexible accent lighting—perfect for highlighting merchandise or adapting to seasonal display changes. Its single-axis design avoids casting shadows on the mounting or swivel ring, and its resistance to dust accumulation further supports long-term, maintenance-friendly operation. An optional glass cover is available for added protection and aesthetic refinement.
Engineered with advanced lighting control in mind, Agira Plus is compatible with wireless lighting management systems and Tunable White modules. These features support low-installation modernization and allow dynamic control over light intensity and color temperature. This makes the luminaire especially suited to retail environments where atmosphere and product presentation are continuously evolving.
The luminaire body is made from cast aluminium with a black RAL9005 finish, offering a sleek and durable appearance. It features a 3-D faceted reflector with a 25° beam angle, delivering a medium flood light distribution ideal for accentuating retail displays. The LED system provides a fixed luminous flux of 7195 lumens with a neutral white color temperature of 4000K and a CRI above 80, ensuring true-to-life color rendering. Its mean rated service life reaches 50,000 hours (L80 at 25°C), while a luminous efficacy of 133 lm/W ensures outstanding energy efficiency.
Installation is quick and secure with Oktalite folding springs, accommodating ceiling thicknesses from 1 mm to 25 mm. The luminaire’s overall height is 120 mm with an outer diameter of 190 mm, and it weighs 1.5 kg. Electrical connection is via a Wieland GST18i3 rapid connector system, operating at 230 V / 50–60 Hz. The built-in electronic control gear is DALI-2 compliant, digitally dimmable, and replaceable according to EU ecodesign standards.
Agira Plus meets safety class II standards and holds an IP20 protection rating on both the lamp compartment and room side, making it suitable for interior applications. With its robust build, premium optical performance, and intelligent features, Agira Plus delivers unmatched flexibility and precision in professional lighting design.
