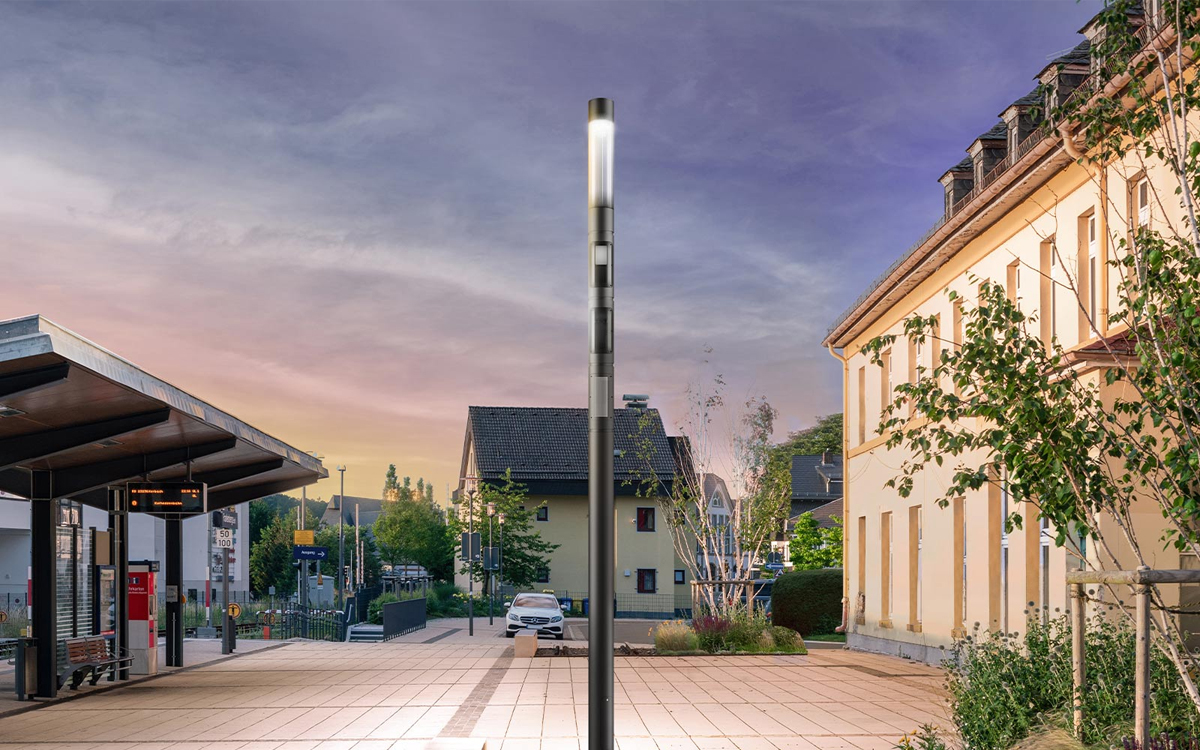

The ConStela 19 LED represents a highly modular column lighting system that harmoniously blends advanced lighting technology with a wide array of smart city functionalities. Engineered with a slim, form-fitting design, it integrates seamlessly into any architectural setting or urban environment. Built with premium quality and precise engineering, the ConStela 19 LED offers plug-and-play integration of various IoT modules, allowing it to evolve far beyond a simple light source.
At its core, the luminaire features advanced optical performance through multi-lens technology (MLT), enabling flexible light distribution tailored precisely to site conditions such as road width and mounting height. Its Low Contrast Light system ensures pleasant visual comfort by coupling light through a guiding panel, creating well-balanced illumination for roads, pathways, and public squares. Designed for both aesthetics and function, the system is available in ETDD and SLR versions, with outputs ranging from 2,000 to 5,100 lumens and an energy efficiency of up to 118 lm/W. The ConStela 19 LED supports installation heights from 4 to 7 meters, with intermediate elements available in 0.5, 1, or 2-meter lengths, and includes both asymmetric wide and rotationally symmetric light distribution options.
Adding to its versatility, the ConStela 19 LED incorporates freely rotatable spotlight modules that enable targeted architectural lighting, perfect for accentuating monuments or historic buildings. These spotlights are available with narrow or wide beam distributions, providing creative flexibility for urban designers.
Beyond lighting, the ConStela 19 LED serves as a multifunctional smart column. Equipped with optional plug-and-play modules, it can deliver free public WiFi capable of supporting up to 500 users per unit, enhancing connectivity in public parks and plazas. An integrated IoT camera with a 103° field of view enables surveillance, people counting, and vehicle detection, thereby contributing to urban safety and data analytics. Loudspeakers can be included for music or public announcements, enriching the ambiance in public and commercial spaces.
Marketing and informational capabilities are supported through built-in beacons that trigger app-based push notifications related to local attractions or promotions, and a gobo spotlight module that can project custom logos or messages onto nearby surfaces. A monitor module adds another dimension of communication by displaying images, videos, or live data, controlled via cable or wireless connection.
For sustainable mobility, the column transforms into an e-vehicle charging station with a Type 2 connector offering 11 kWh output—ideal for upgrading supermarket or workplace parking areas. The design also supports environmental awareness through integrated air quality measurement modules (Hawa Dawa Sentience), which can monitor pollutants with street-level accuracy and offer data evaluation, including alerts for exceedances and traffic-related correlations.
Customization plays a key role in the column’s appeal. While standard finishes are available, ConStela 19 LED can be supplied in any of 215 RAL colors for a distinctive, location-specific look. Anti-graffiti paint ensures long-term cleanliness and easier maintenance by resisting smears and stickers. For coastal or extreme climates, the column features a seawater-resistant paint in DB finish to protect against corrosion.
Structurally, the design reflects a meticulous balance of form and function. Each segment—from the base column to the lighting head and function modules—is proportioned for visual harmony, with a purposeful design gap that delineates transitions and emphasizes the column’s modular utility. The system is built for resilience, certified for use in wind zone 4 and terrain category 1, withstanding harsh coastal winds and exposed mountain climates.
With a service life of 100,000 hours (CLO), IP65 protection rating, and color temperature options of 3000K (730) or 4000K (740), the ConStela 19 LED delivers lasting performance, exceptional energy efficiency, and an unmatched level of smart urban functionality.
