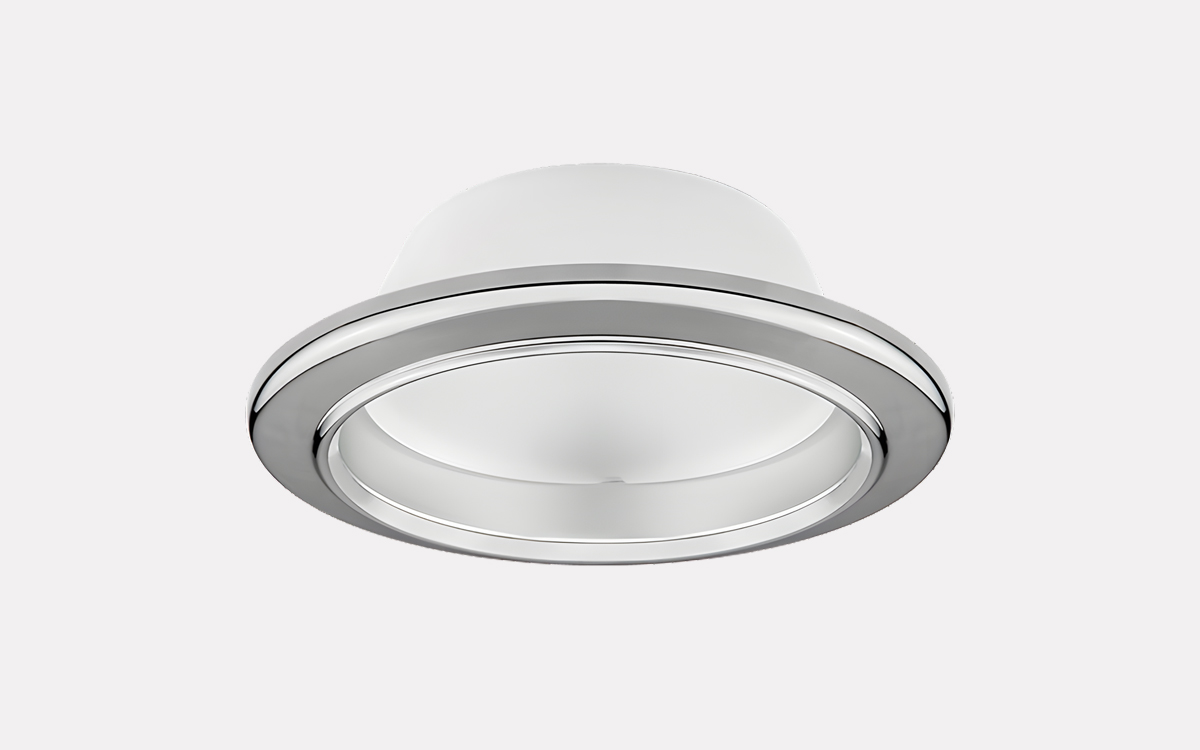

The DL41-R155 (B0) is a low recessed downlight designed specifically to meet marine standards. It is compatible with nearly all ceiling thicknesses and features a B0 fire protection design. The luminaire accommodates cutout diameters of both 145mm and 155mm, making it versatile for various installations. The body of the luminaire is constructed from galvanized steel painted white, providing durability and corrosion resistance. Its reflector is made from anodized aluminum and integrates an opalic polycarbonate diffuser to ensure smooth, even light distribution.
The trims and decorative elements for the DL41-R155 are available in several finishes, including white, chrome, and brushed aluminum. These trims attach easily with a bayonet connection system, while quick connectors simplify the installation process. Note that trim rings, décor pieces, and light control elements must be ordered separately. The downlight is available in different versions including a standard on/off (HF), a night light version (HF-NL), and a central battery emergency light version (HF-Z).
Designed for cabin and public areas such as corridors, staircases, lounges, and shopping areas, the DL41-R155 utilizes LED technology with a warm 3000K color temperature. The driver is integrated with an on/off function for straightforward operation. Electrical connections are made via cables with quick connectors, compatible with Wago (QCA) or Ensto (QCE) systems, or through a cable with a connection box featuring a push-in terminal block.
Mounting is recessed and secured with three screws, without any limitation on ceiling thickness. The design allows installation in B0 fire protection ceilings without the need for an additional fire hat. The optical system includes a light mixing chamber with a silver matte aluminum reflector paired with an opalic polycarbonate diffuser, producing a well-balanced light output. The fixture operates on a voltage of 220-240Vac at 50/60Hz frequency, making it suitable for standard electrical systems.
