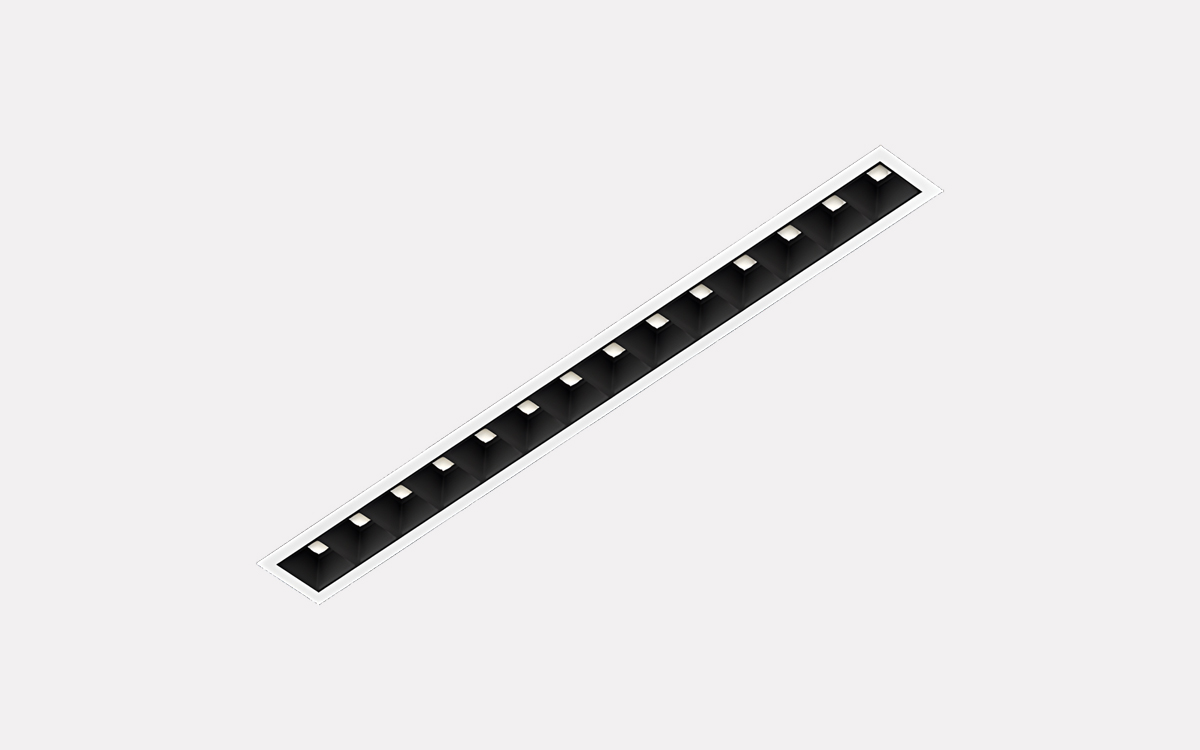

The FX45-R is a universal and timeless addition to the FX family, an elegant linear lighting system designed to create captivating arrangements in any interior setting. Its modern design and simple construction make it an excellent choice for both general and decorative lighting in private homes as well as public buildings. The FX45-R offers four optic versions tailored to specific applications: the reflector option is ideal for hotels, museums, and shopping centers; the louvre suits office environments; the microprismatic diffuser is perfect for offices and schools, providing great lighting uniformity and glare reduction; and the opal diffuser works well in circulation areas, ensuring even light dispersion with a high-quality satin finish.
Constructed with a body and end caps made of extruded anodized aluminium, the FX45-R comes in a sleek white color. Its LED light source delivers between 2000 and 5000 lumens, with color temperatures available at 3000 K or 4000 K, achieving a CRI of Ra 80 and MacAdams step 3 for consistent, quality lighting. The luminaire supports standalone recessed mounting compatible with ceiling thicknesses from 2 to 24 mm. For continuous mounting configurations, special item codes are required.
The FX45-R is available with an integrated emergency system offering 1-hour or 3-hour durations, with options for self-test (ST) or DALI control. Optic choices include an opal diffuser in polycarbonate (OP/PC), a microprismatic diffuser (MP/PC), white or black reflectors (WT or DK), and silver parabolic louvers (SMP), allowing versatile adaptation to different lighting needs. An IP54-rated version is also available, featuring the opal diffuser with a maximum length of 2000 mm and a downward light distribution (0/100).
The luminaire is equipped with either constant light (HF) drivers or dimmable (DALI) drivers, with a driver lifetime of up to 100,000 hours at 10% max failure rate, tested at 25°C ambient temperature. Electrical connection is made through a 3- or 5-pole terminal block, ensuring straightforward and reliable wiring.
