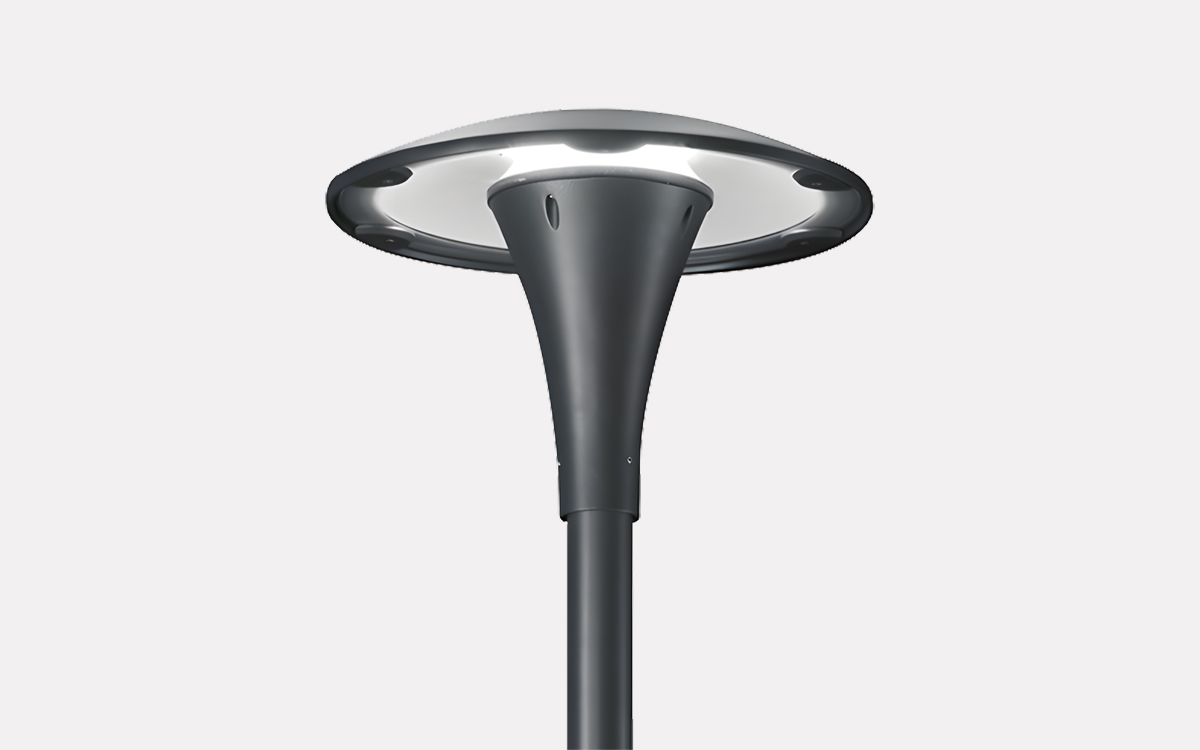

The Glamox O46 is a post top LED luminaire designed for installation on poles ranging from 3 to 6 meters in height, making it an ideal solution for lighting parks, pathways, and other outdoor areas. Its robust housing is crafted from die-cast aluminium and is available in three colors: black (RAL 9005), anthracite (close to RAL 7024), or aluminium grey (RAL 9006). The luminaire is equipped with either a clear or opal tempered safety glass cover, enhancing both its durability and aesthetic appeal. A silicone gasket and stainless steel screws ensure a weather-resistant and long-lasting build.
With a wind-exposed surface area of 0.16 square meters, the O46 is designed to withstand outdoor conditions. It is supplied with a pre-assembled 6-meter rubber cable to facilitate easy installation. The light source offers a luminous output between 2000 and 7000 lumens, available in color temperatures of 3000K or 4000K, with a high color rendering index (CRI) of Ra 80 and a MacAdam ellipse of 3, ensuring consistent and quality light.
This product supports advanced light management technologies, including Glamox NightDim for energy-efficient dimming, and can be equipped with a Zhaga socket to connect communication and sensor units, enabling smart lighting control. For detailed information, users can refer to the "Light control for outdoor lighting" section under Light Management.
The luminaire’s optics feature anodised aluminium reflectors providing either a 240° or 360° radial light distribution, suitable for a range of lighting scenarios. Power options include a fixed output HF driver or a DALI dimmable driver with a 10-100% dimming range. Surge protection up to 4kV is integrated to enhance reliability in outdoor electrical environments.
Mounting is flexible, with installation possible on poles with a top diameter of 60 mm or on walls using an optional wall bracket, which must be ordered separately. Overall, the Glamox O46 combines durability, efficient lighting performance, and versatile installation options for demanding outdoor lighting applications.
