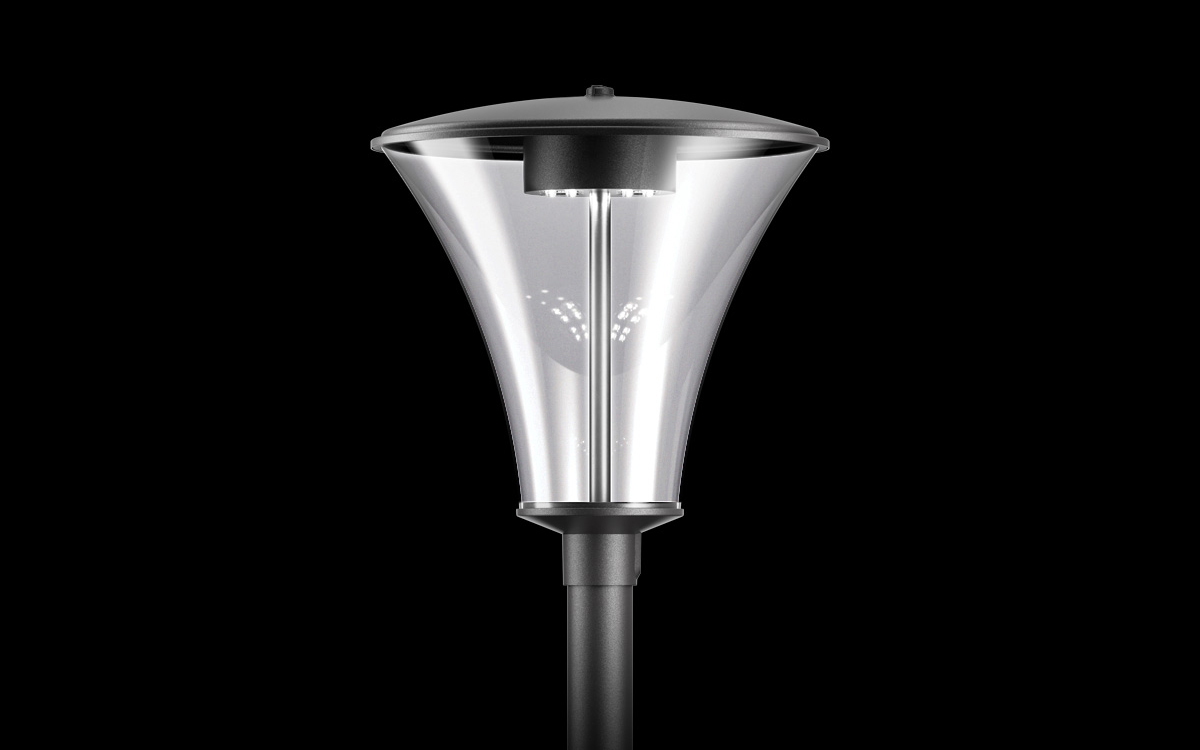

The Lumantix LED post luminaire series combines visual appeal with advanced lighting innovation, offering a decorative yet high-performance solution for outdoor environments. Designed to bring both form and function to public and private spaces, these luminaires feature a sleek cylindrical shape and are customizable with city coats of arms, company logos, or personal motifs—ideal for municipalities and organizations seeking to make a distinct visual statement. The optional canopy adds a classic lantern-style appearance, enhancing their architectural integration into urban, residential, or heritage settings.
Technically, Lumantix is equipped with Multi-Lens Technology (MLTIQ), a sophisticated optical system that ensures precise and efficient light control tailored to the specific needs of outdoor areas. The luminaire is available with three distinct beam distributions: asymmetric wide (AB), rotationally symmetric wide (RB), and extremely symmetric wide (SB), allowing it to adapt to various street and area lighting scenarios. To further optimize visual comfort and reduce glare, side and rear shielding accessories can be retrofitted, and translucent covers are offered without impacting photometric performance.
A major highlight of the Lumantix series is its Smart Lighting Ready (SLR) version. Thanks to Zhaga-standardized interfaces, these luminaires can integrate seamlessly into smart city infrastructure, enabling compatibility with light management systems and sensor networks. The self-regulating power reduction feature, driven by internal evaluation electronics, automatically reduces luminous flux by 50% for a seven-hour period each night. The central point of the switch-on time is recalculated daily, ensuring ongoing energy optimization and operational efficiency.
The LED system delivers luminous flux packages ranging from 1,000 to 4,200 lumens, with energy efficiency up to 115 lm/W. Available in 3000 K and 4000 K, with extended options down to 2200 K, the light colors enhance nighttime ambiance while minimizing light pollution. The CLO (Constant Lumen Output) function ensures consistent illumination over time, supporting a rated service life of 100,000 hours (L80 at 25 °C). The LED system complies with EU ecodesign regulations, with replaceable components that enhance sustainability and maintainability.
Constructed from highly durable materials, the Lumantix luminaire body and canopy are made from corrosion-resistant aluminum and coated in anthracite (similar to RAL 703) for a refined finish. A sea-weather-resistant coating is available for coastal installations. The diffuser is made of translucent, impact-resistant PMMA, offering durability and soft light distribution. The fixture measures Ø 570 mm in diameter and 605 mm in height, with a windage area of 0.190 m², and weighs 7.5 kg. It is rated IP65 for full dust and water ingress protection and IK07 for impact resistance, suitable for ambient temperatures up to 35 °C.
Electrically, Lumantix includes a 6-meter preassembled connection cable for streamlined installation. It uses a digitally dimmable electronic control gear unit conforming to the DALI-2 standard (EN 62386), which is fully replaceable under EU Ecodesign Directive 2019/2020. Surge protection of 6 kV (differential mode) and 10 kV (common mode) ensures reliable performance in outdoor electrical environments. The luminaire complies with all relevant EU directives, carries the CE mark, and holds ENEC certification from an independent testing body.
The Lumantix LED range is ideal for use in collection and residential roads, low-traffic streets, pedestrian zones, park paths, passages, arcades, access stairs, and other landscaped outdoor environments. With coordinated design, high efficiency, and intelligent functionality, Lumantix is a future-proof lighting solution tailored to modern urban needs while maintaining timeless aesthetics.
