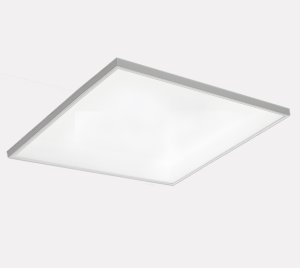

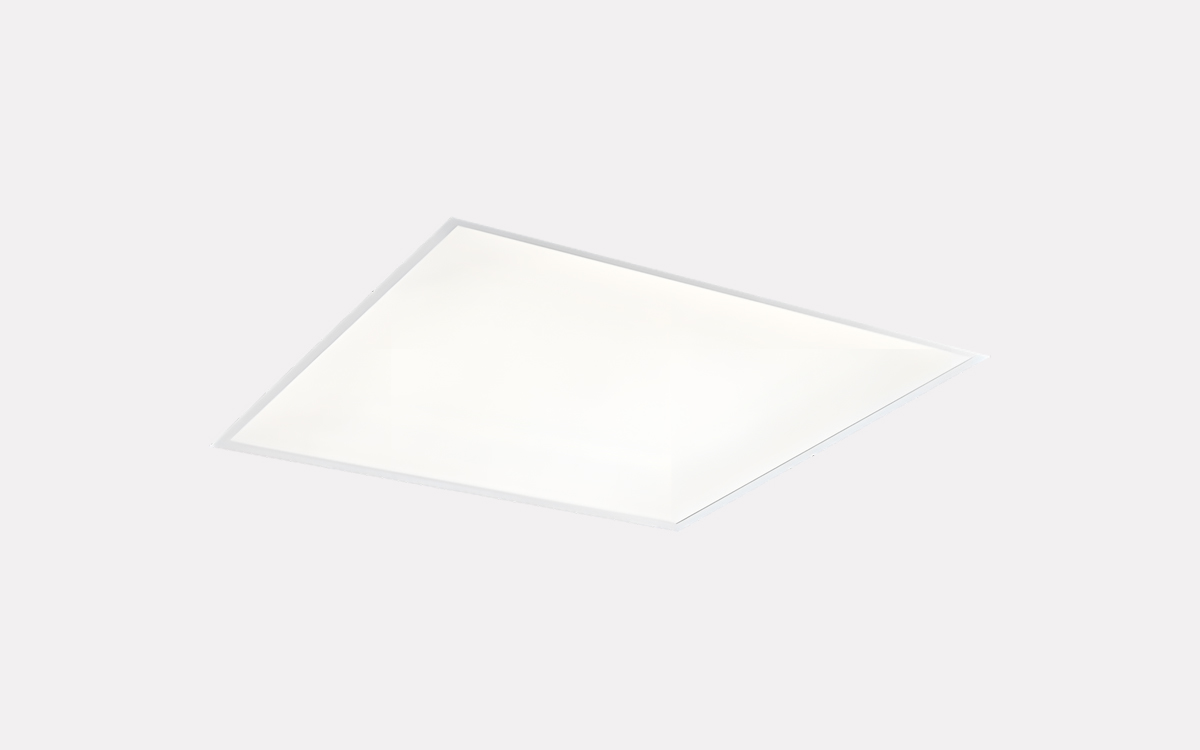

The C90-R family consists of modular LED luminaires featuring fully illuminated surfaces, combining excellent design, flexibility, and superior visual performance. With its high-quality finish and expansive illuminated area, the C90-R integrates seamlessly with the ceiling, creating a clean and modern aesthetic. Designed with premium light quality in mind, the luminaire boasts a perfectly shaped frame made in one continuous piece, just 12mm wide, ensuring the frame remains invisible within a T-bar ceiling system.
The product is carefully engineered to deliver homogenous, high-quality light. Tailor-made LED modules are selected and positioned with precision, optimizing the distance between the LED source and the optics to achieve a flawless lighting effect. This meticulous attention to detail enhances both the comfort and functionality of the luminaire.
C90-R offers great flexibility and is compatible with various ceiling types, including 15mm and 24mm T-bar systems, plasterboard ceilings, as well as Ecophon Focus Ds and Rockfon system T24X (concealed profile). The luminaire is available with four different optic options: Microprismatic (MP), Opal (OP), Circle (CI), and Opalic Drop Out (OD). An external driver box is included for easy connection and maintenance without the need to open the luminaire itself. Additionally, the C90-R family now includes tunable white (CCT) and RGB versions, supporting Human Centric Lighting solutions that positively influence daily rhythms, work performance, and overall well-being by mixing warm and cool whites or red, green, and blue colors.
Accessories include mounting clips (4 pieces) designed for hidden T-bar systems, and a frame accessory for plasterboard ceiling installations. Optic choices vary slightly by model; only the 312x312 version supports OP and MP optics, while CI and OD optics do not accommodate sensors or emergency systems. The luminaire supports integrated PIR sensors, including the SPR-SEN with a relay-based ON/OFF switch and the SPC-SEN wired for corridor function, except on models with CI or OD optics or the 312x312 version.
The C90-R uses HF or DALI drivers, with the CCT versions exclusively using DALI. Driver lifetime is rated up to 100,000 hours at Ta 25°C with a maximum of 10% failure. The luminaire body is constructed from white painted steel with a plastic frame for durability and aesthetic appeal. Emergency lighting options include Standard (S), Self-test (ST), or DALI systems with 1-hour or 3-hour durations, although these are unavailable on certain optic types and the smallest version.
Light output ranges from 1200 to 5000 lumens with color temperatures of 3000K or 4000K, CRI values of 80 or 90, and MacAdams step 3 for consistent color quality. The C90-R is well suited for various ceiling installations, including T-bar systems and concealed profiles, with mounting clips and frames provided for ease of installation. The 312x312 version comes with its own mounting brackets. When installed in clusters, minor color temperature variations may be perceived, though LED tolerances are generally comparable or better than conventional sources.
Finally, the C90-R offers the possibility of delivering an Environmental Product Declaration (EPD), reflecting its compliance with sustainability standards.
