The Series 76ND is part of the Family 76N, which includes a Single version (Series 76N), Double version (Series 76ND), Single Arctic version (Series 76N Arctic), and Double Arctic version (Series 76ND Arctic). The Arctic versions are specifically designed for low-temperature environments and feature a heating foil inside the glass lens to prevent icing.

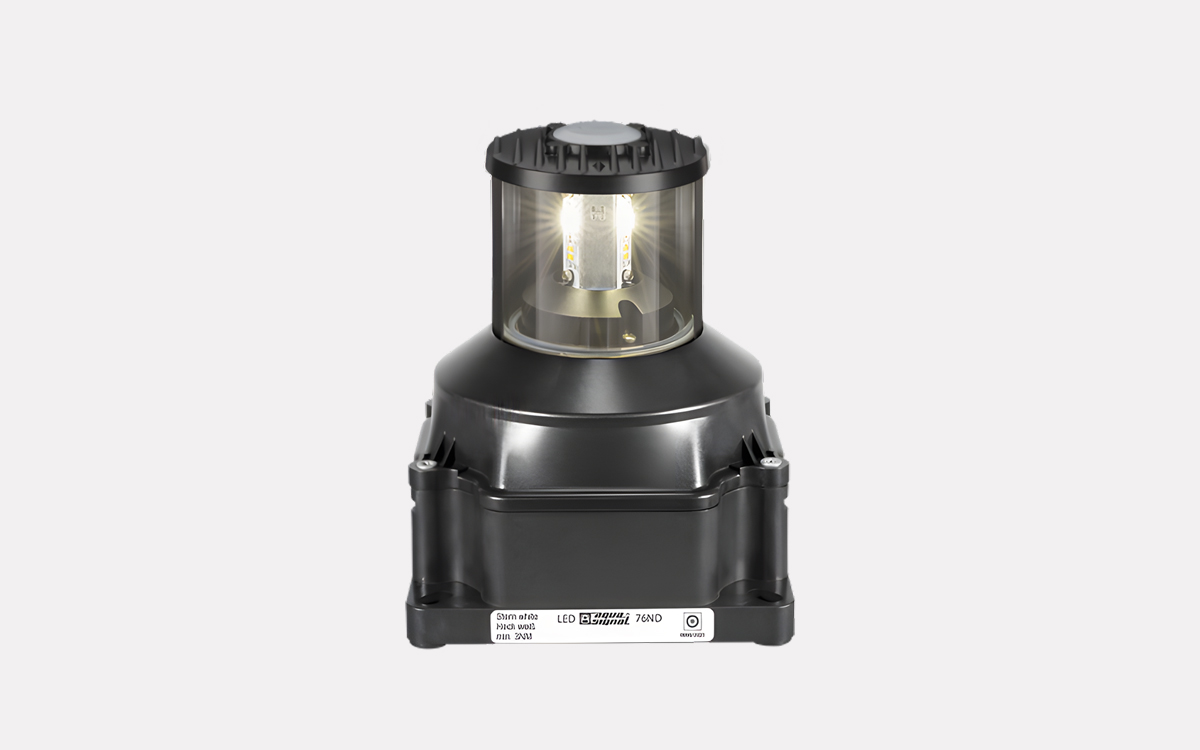

The Series 76ND offers a comprehensive range of LED navigation lights tailored for Naval Patrol and Support Ships measuring 20 meters and longer. These lights comply fully with the International Regulations for Preventing Collisions at Sea 1972 (COLREG) set by the International Maritime Organization (IMO) and also address special Naval requirements such as Night Vision Goggle (NVG) compatibility. Developed to meet the unique demands of Naval vessels, this product range includes special variants like flashing lights, wake lights, and steering lights, with some models designed for upside-down installation.
These naval navigation lights can be grouped and programmed to customer specifications, with the option to include Safe Return To Port (SRTP) functionality on navigation light systems. The standard navigation light voltage is 24V DC, but the navigation light controller supports flexible system input power options, including 24V DC, 115V AC, or 120-240V AC for the switch cabinet. The Series 76ND carries the Wheelmark certification (MED Certificate), approved by DNV, with UL1104 and USCG certifications planned for the future.
