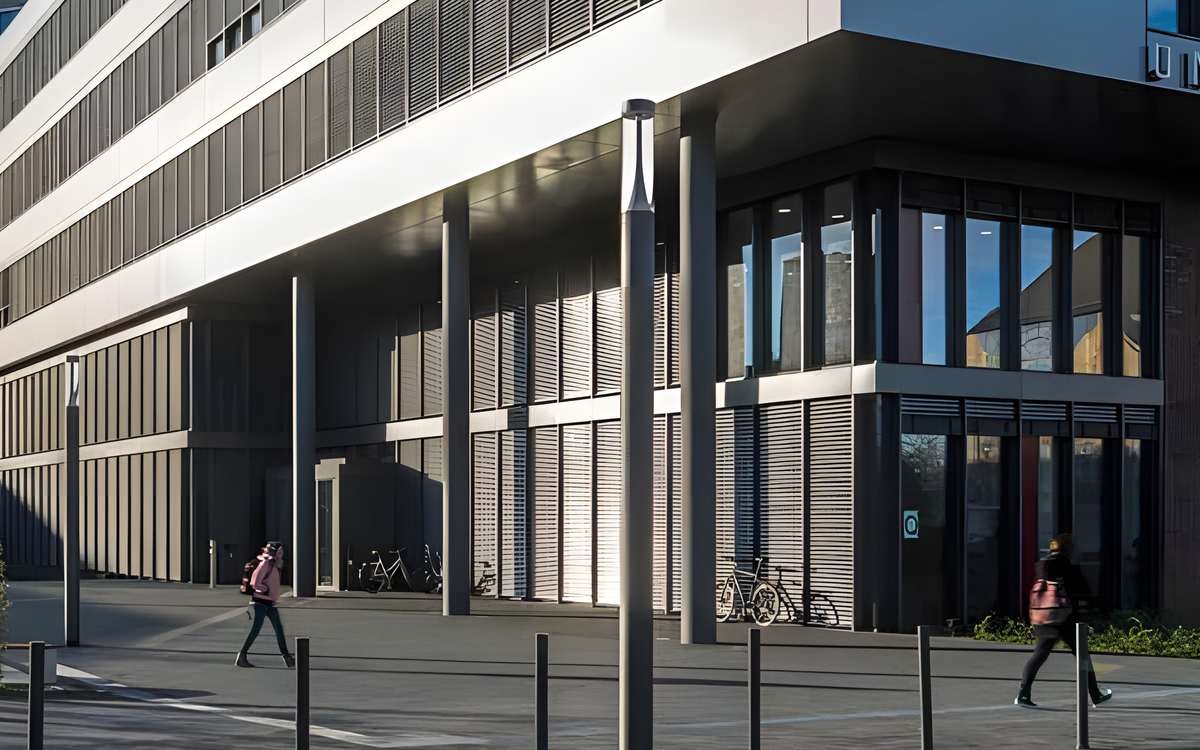

The 8841 LS LED is an elegant light column designed for prestigious outdoor lighting tasks, offering architects and designers a refined and consistent aesthetic for green areas, parks, and building surroundings. This slender luminaire not only ensures visual appeal during nighttime but also enhances the architectural presence of outdoor spaces during the day. The seamless transition between the supporting column and luminaire head creates a sleek, integrated design that complements sophisticated environments such as upscale parks, pedestrian zones, arcades, and access areas.
This versatile luminaire is part of the broader TRILUX 884 LED family, which includes complementary bollard and wall-mounted versions. Together, these fixtures allow for a harmonious and uniform lighting scheme across a variety of outdoor settings. The 8841 LS LED stands out with its advanced Multi-Lens Technology (MLTIQ), which enables tailored light distribution characteristics. More than 20 precision-aligned lenses can be selected to meet the specific illumination requirements of different locations, such as pathways, squares, stairways, and residential zones. The optical system also supports both rotationally symmetric and asymmetric wide light distribution to accommodate various lighting strategies.
Designed with flexibility in mind, the 8841 LS LED is available in two different mounting heights—2.60 m and 3.60 m—offering adaptability for different architectural contexts. Its slender 170 mm diameter contributes to its refined profile, while a robust version with continuous underground support provides enhanced protection against vandalism, making it suitable for high-traffic public spaces. The luminaire features a baseplate for installation into firm ground or can be mounted via an underground support accessory.
The optical system is engineered to deliver a neutral white light (4000 K) with a general color rendering index (CRI) above 70, and a maximum luminous flux of 3500 lumens at just 28 W of connected load. The integrated Constant Lumen Output (CLO) function ensures luminous flux remains stable over the product's rated service life of 100,000 hours. With an efficacy of up to 125 lm/W and a high power factor (>0.9), the 8841 LS LED offers energy-efficient performance that meets the ecodesign requirements of EU Regulation 2019/2020. The light source and control gear are both replaceable, supporting sustainability and long-term maintenance.
Constructed for durability, the supporting column is made of extruded aluminum with a weather-resistant powder-coated finish in anthracite (similar to DB 703), with an optional sea-weather coating available upon request. The luminaire head is encased in an impact-resistant clear PMMA cylinder and includes a rear-access door and built-in junction box for secure electrical connections. It features IP65 protection for the luminaire itself and IP54 for the junction box, along with IK04 impact resistance. Rated for operation in ambient temperatures ranging from -20 °C to +25 °C, the column is built to withstand diverse environmental conditions, with a windage area of 0.610 m² and a total weight of 34.3 kg.
Electrical components include a switchable electronic control gear unit with surge voltage resistance of 6 kV (differential mode) and 10 kV (common mode), ensuring protection against electrical disruptions. The luminaire complies with EU safety and performance standards and is CE certified, making it a reliable and stylish choice for high-quality outdoor lighting projects that demand both design excellence and technical performance.
https://www.trilux.com/en/products/8841-ls-led/
