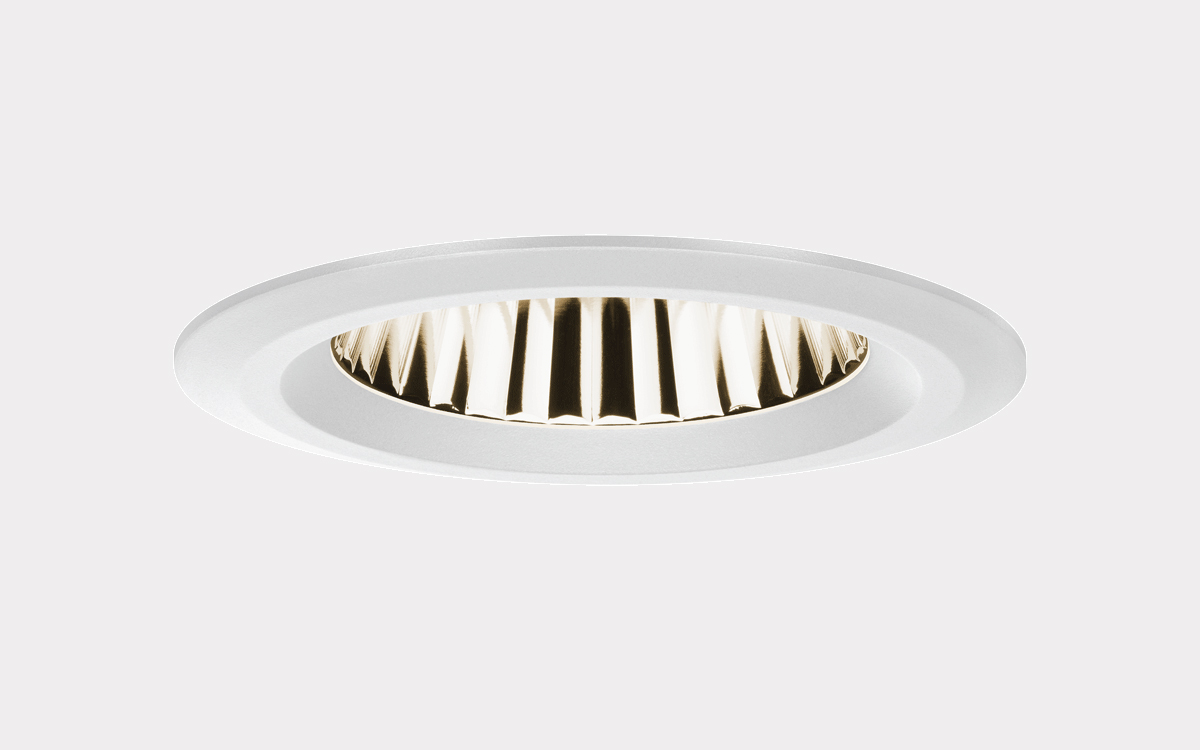

The TOKO PLUS LED is a versatile and high-performance recessed ceiling luminaire that harmonizes with modern architecture while delivering powerful and efficient illumination. Designed for a wide range of interior applications—from sales floors to high-ceilinged stairwells—TOKO PLUS supports both accent and homogeneous lighting needs with precision and elegance. Its clean, minimalistic design makes it a preferred choice for retail and commercial environments, seamlessly integrating into the ceiling for a refined visual impression.
At the heart of its lighting system is the advanced 3D faceted reflector optic, enabling four beam angles between 28° and 60°, allowing for tailored illumination suited to different spatial and presentation requirements. This optical flexibility is ideal for highlighting products, guiding visitors, or ensuring general ambient lighting that enhances orientation and comfort. Even in tall spaces, TOKO PLUS excels, delivering up to 7,000 lumens of crisp, evenly distributed light—ensuring areas such as escalator landings, foyers, or store aisles are properly and efficiently illuminated.
The luminaire offers lumen packages from 3,000 lm to 7,000 lm and supports a rich spectrum of white light color temperatures, including 2700 K, 3000 K, 3100 K, 3500 K, and 4000 K, as well as specialized options like Efficient White, Efficient Cool, Brilliant Colour, and tailored spectrums for meat and fish displays. This allows lighting designers to create precise atmospheres that meet visual and branding goals while ensuring visual comfort.
One of the key installation advantages is the patented Oktalite folding spring system, which significantly simplifies ceiling mounting—especially beneficial in areas with limited access or elevated installation heights. With a height of 117 mm and an outer diameter of 193 mm, the luminaire’s die-cast aluminium body ensures durability while maintaining a lightweight profile of just 0.9 kg.
The luminaire system delivers a rated luminous flux of 7480 lm with a connected power load of 54 W, achieving a luminous efficacy of 139 lm/W. It is designed to operate at 230 V / 50-60 Hz, features digitally dimmable DALI compatibility, and includes a control gear unit in line with DALI-2 (EN 62386). The luminaire is CE marked, Ecodesign-compliant, and supports smart lighting control systems such as LiveLink and Casambi, enabling wireless control and integration into modern building management systems.
TOKO PLUS is available in standard RAL finishes such as Jet Black (RAL 9005), White Aluminium (RAL 9006), and Traffic White (RAL 9016), supporting both contemporary and traditional design palettes. Its optical system ensures a Medium Flood (MF) distribution and provides a UGR rating around 20.6, maintaining visual comfort for tasks including computer-based work in retail or office settings.
With a protection rating of IP20, class II safety classification, and L80 rated lifetime of 50,000 hours at 25°C, TOKO PLUS is a robust and sustainable solution that supports circular design principles with a replaceable LED module and control gear. Ideal for new constructions and 1:1 retrofit projects, TOKO PLUS LED is engineered to combine performance, aesthetics, and long-term efficiency—delivering lighting that stands the test of time.
