The Glamox AL60 family is a robustly designed series of luminaires with an elegant and modern expression, specially crafted for LED technology. This versatile family includes a variety of lighting options such as berth lights, mirror lights, circular lights, two indoor square lights, and two outdoor square lights. These luminaires are well suited for applications in cabins, corridors, lounges, and entrance areas. Designed and approved to meet stringent marine requirements, the AL60 series reflects Glamox’s commitment to quality, backed by a 5-year warranty.

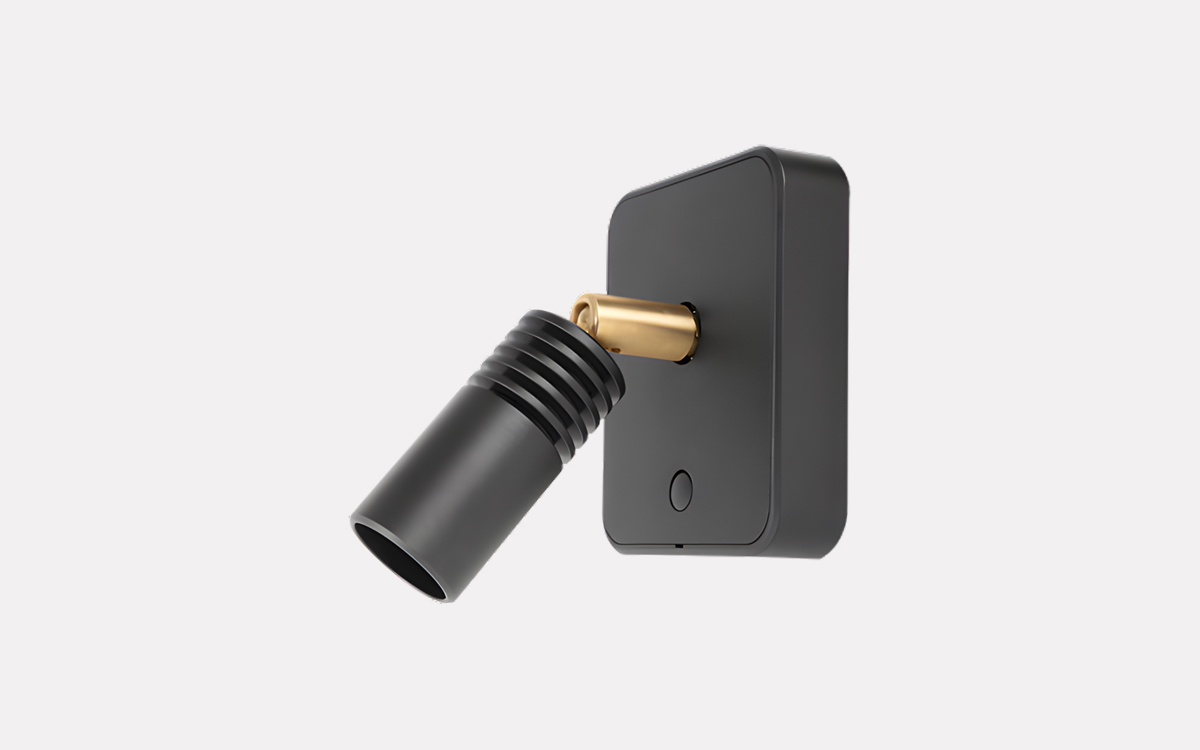

Among the AL60 family, the AL60-Cabin II bedlight stands out with its compact design and integrated touch switch that supports smooth dimming. It features a sleek and elegant appearance, complemented by brass or chrome joints and an adjustable light head that allows users to direct light precisely where needed. The lamp head, available in black, white, or chrome, is engineered for effective cooling, which extends the LED’s lifetime. This model is also available with an integrated USB socket for charging, enhancing its functionality. Thanks to the energy-efficient LED technology, the light remains cool to the touch, providing comfortable use without heat concerns.
The light source in the AL60-Cabin II delivers 300 lumens with color tolerances conforming to MacAdam ellipse 3 and a color rendering index (CRI) greater than 80. It is available in warm white (3000K) or neutral white (4000K) on request, with a lifetime of at least 50,000 hours at an ambient temperature of 45°C (L70 rating). This luminaire is ideal for cabins and lounges, connecting via a two-pole push-in terminal block housed in a wall box with double insulation for safety.
In terms of design, the AL60-Cabin II fully complies with marine standards. It includes an integrated LED driver and a dimmable switch, allowing adjustment of brightness from 5% to 100%. The housing is made from solid polyamide (PA) and comes in black (RAL 9005), with the USB version optionally available in white (RAL 9016). The lamp head is crafted from aluminum and can be finished in either black anodized or polished chrome. Decorative plates, fastened magnetically to the luminaire, are available in chrome, grey, or black, with copper and white options upon request. The joint connecting the light head to the housing is offered in brass or chrome finishes.
For clarity on color combinations, the luminaire configurations are described as follows: BL/BL/BR/BL features a black housing, black décor plate, brass joint, and black lamp head; BL/CH/CH/CH includes a black housing, chrome décor plate, chrome joint, and chrome lamp head; while WH/CH/CH/CH consists of a white housing, chrome décor plate, chrome joint, and chrome lamp head. This variety ensures flexible styling options to suit diverse interior preferences and marine environments.
