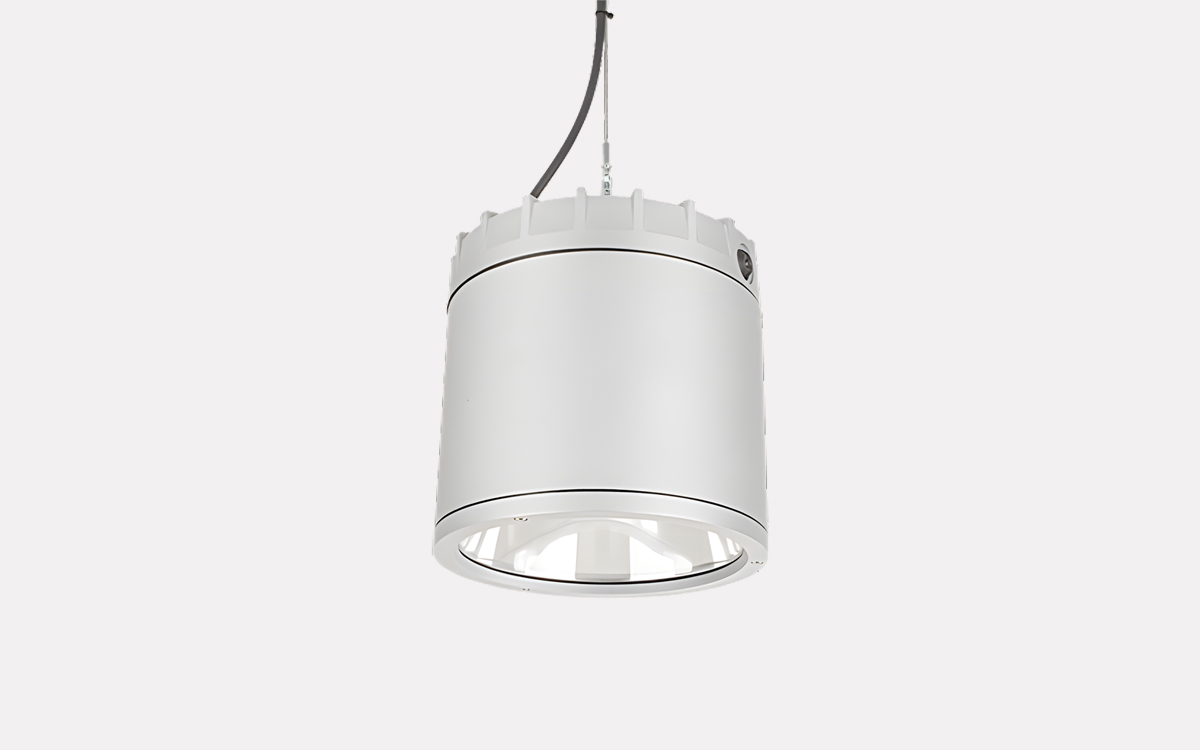

The Glamox i75 is a compact and versatile LED luminaire designed for both pendant and surface mounting. Its adaptability makes it suitable for a wide range of applications, including assembly halls, open spaces, cinemas, industrial premises, warehouses, and cold storage facilities. The luminaire housing is constructed from a combination of die-cast and extruded aluminum, finished with an aluminum grey (RAL 9006) epoxy/polyester powder-coated paint for durability and corrosion resistance. It is equipped with a reflector made of anodized aluminum and offers a choice of front covers in either laminated tempered glass or impact-resistant clear acrylic. Installation is simplified through top access, allowing easy reach to all internal components. Additionally, Glamox offers custom solutions for the i75 to accommodate specific customer requirements.
The i75 features two membrane glands for cables ranging from 7 to 11 mm in diameter, as well as an M20 polyamide cable gland for cables between 7 and 14 mm. It includes a 3- or 5-pole 2.5 mm² push-in terminal block prepared for through wiring. For outdoor use, appropriate flexible cables must be used to maintain the watertight integrity of the membrane glands.
Lighting options for the i75 include wide (WB), medium (MB), and narrow beam (NB) reflectors, all made from anodized aluminum to ensure efficient light distribution. The luminaire is available with fixed output (HF) or DALI dimmable drivers, allowing smooth dimming from 1 to 100 percent. The driver has a rated lifetime of up to 100,000 hours at 25°C with a maximum failure rate of 10%.
The light source provides between 1,700 and 5,000 lumens with color temperatures available in 3000K or 4000K. It delivers a color rendering index (CRI) of Ra 80 and a MacAdam ellipse of 3, ensuring consistent and natural color quality. The luminaire’s body includes EPDM gaskets for sealing and stainless steel screws for durability and corrosion resistance.
Mounting options include a solid suspension spring hook designed for vertical wire suspension. Additional mounting accessories such as suspension kits for mounting rails, horizontal wires, or ceiling brackets are available separately to accommodate various installation needs.
