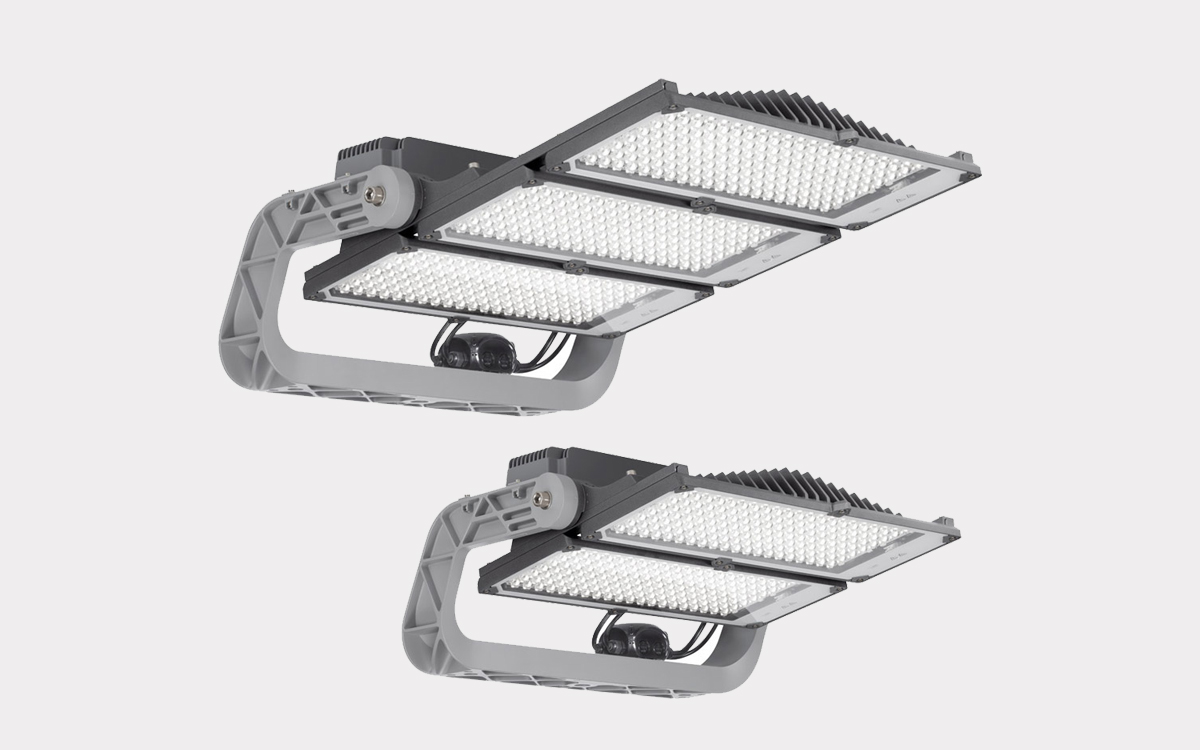

The Lumena Plus 80/90 floodlight is a top-tier lighting solution engineered for the most demanding outdoor environments and large-area illumination tasks, such as sports arenas, industrial facilities, logistics terminals, and expansive work zones. Designed and manufactured in Germany, the Lumena Plus 80/90 stands out for its exceptional material quality, robust construction, and highly efficient optical system based on Multi-Lens Technology (MLT). It delivers precise, glare-free illumination, even at extreme luminous outputs of up to 190,000 lumens, while ensuring light is directed only where it’s needed.
With its high protection rating and advanced thermal management, Lumena Plus 80/90 offers maximum reliability and longevity under harsh outdoor conditions. The luminaire features a service life of 100,000 hours (L90 at 25 °C), combining operational excellence with long-term cost-efficiency. The high-performance MLT optics are UV- and temperature-resistant, arranged in four-fold lens configurations, and provide asymmetric narrow-beam distributions for targeted lighting. Additional beam characteristics are also available to accommodate specific project requirements.
Available in two sizes, Lumena Plus 80/90 is designed to offer scalable lighting performance, with configurations powered by 120 MLT LED modules containing four LEDs each. The system operates at a connected load of 1275 W, with a luminous efficacy of up to 149 lm/W, neutral white light at 4000 K, a CRI > 70, and a MacAdam tolerance ≤ 5 SDCM. It is DALI-2 dimmable and supports intelligent lighting control through integration with light management systems and sensors, significantly enhancing energy savings and operational flexibility.
Ideal for both new installations and retrofit projects, Lumena Plus 80/90 is part of a full-service offering that includes lighting audits, planning, installation, and system operation. Whether the goal is to upgrade to smart LED lighting or create dynamic light scenes—such as for training, competitions, or celebrations in sports environments—Lumena Plus delivers professional-grade results. With optional LiveLink light management, users can create adaptive lighting scenes, including pre-set profiles and dynamic effects like goal celebration light shows.
The floodlight is suitable for a wide range of outdoor applications, including container areas, construction sites, logistics terminals, parking facilities, storage zones, power plants, and sports centers. It meets the requirements of EN 60598 and is engineered to withstand wind loads in accordance with EN 1991 (Eurocode) for wind speeds up to 30 m/s, compliant with terrain category 1 and wind zone 4 in Germany.
For installation, Lumena Plus 80/90 features a die-cast aluminum mounting bracket with three-hole configuration, allowing for both central single-point and two-point mounting. The projector head is pre-assembled with the bracket, and its orientation can be adjusted using toothed locks for secure, precise alignment. Post-mounting options are available for single or multiple fixtures using accessories.
The luminaire body and cover support are constructed from die-cast aluminum, and the front lens is made from non-laminated safety glass. The housing is powder-coated for high weather resistance, offered as standard in anthracite (similar to DB 703) with silver-grey mounting elements (similar to RAL 9006). Other RAL and DB color options are available on request. The unit’s dimensions are 983 mm x 784 mm x 346 mm, with a weight of 38.7 kg, ball impact resistance (DIN 18032-3), IK08 mechanical protection, and an IP66 ingress rating for full protection against dust and strong jets of water. It is designed for ambient temperatures from -40 °C to +25 °C, with a windage area of 0.630 m².
Electrically, the fixture is equipped with a digitally dimmable DALI control gear conforming to EN 62386 (DALI-2 standard). The gear is replaceable in accordance with EU Ecodesign Directive 2019/2020. It features high surge protection with 10 kV differential and common mode resistance, ensuring durability even in challenging grid conditions. Certified with the CE mark and ENEC approval, Lumena Plus 80/90 meets stringent EU regulatory and safety standards.
Altogether, Lumena Plus 80/90 is a professional-grade, high-output floodlighting system that delivers performance, efficiency, and flexibility—making it the ideal solution for illuminating large outdoor spaces in both industrial and sports environments.
