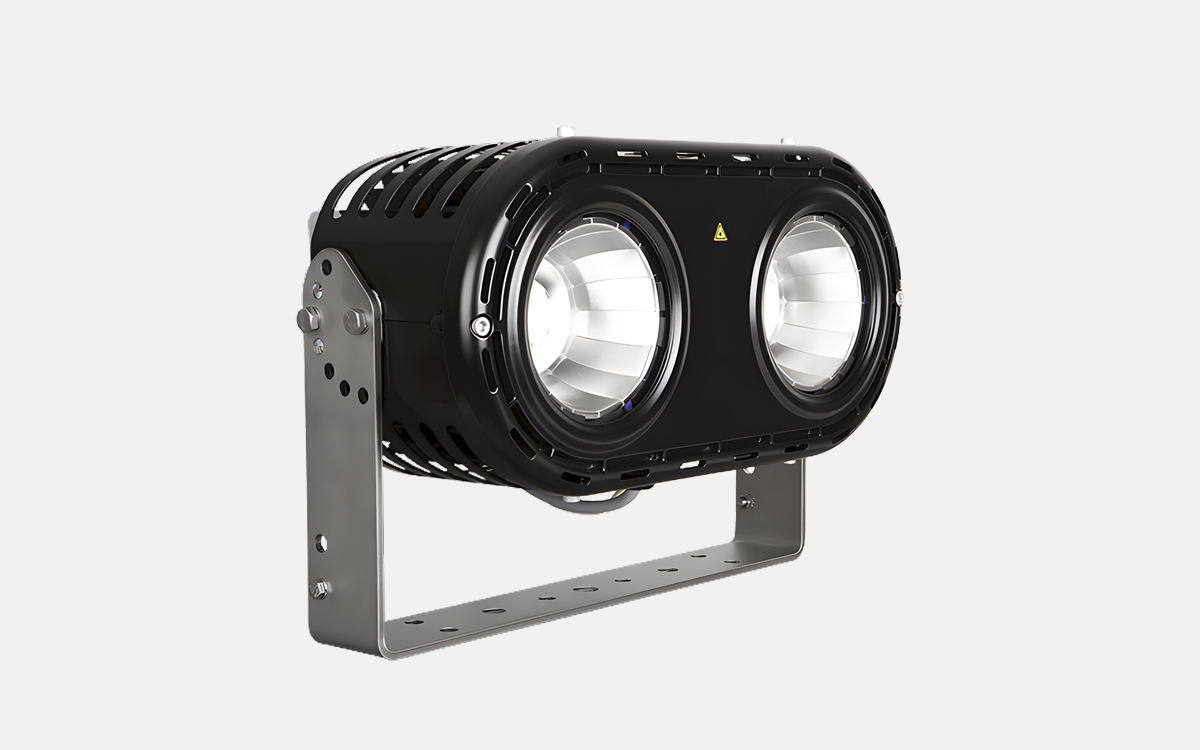

The FL70 LED UL is a high-performance floodlight designed for safe area applications, offering an efficient and virtually maintenance-free lighting solution for demanding industrial environments. Utilizing the latest Chip-On-Board (COB) LED technology and advanced driver systems, the FL70 achieves exceptional lumen output while maintaining high energy efficiency. It delivers an impressive luminous efficacy of up to 147.5 lm/W, making it one of the most efficient floodlights available in its class.
The fixture is housed in a black powder-coated, anodized, seawater-resistant aluminum body, engineered for durability in harsh outdoor and coastal environments. The design has undergone extensive thermal simulations for heat conduction and dissipation, ensuring all internal components operate under optimal conditions to maximize lifespan. A clear safety glass diffuser protects the optics, while the UL certification affirms its compliance with stringent safety and performance standards.
The FL70 is available in single or double-module versions, delivering 27,000 lumens or 54,000 lumens respectively. It uses COB LEDs with a 5000K color temperature, providing bright, crisp illumination suitable for high and medium intensity applications. The fixture is powered via a wide-range 120–277V AC, 50/60 Hz driver, with a power factor of 0.9, ensuring reliable operation in varied electrical conditions. Each module consumes 176 watts, optimized for energy savings and performance.
Engineered for robust environmental protection, the FL70 carries an IP66/67 ingress rating, making it resistant to dust, heavy rain, and temporary immersion. It operates reliably in extreme temperatures, from -35°C to +55°C, and is ideal for marine, port, industrial, and infrastructure lighting.
Mounting is facilitated by a stainless steel 316L bracket, ensuring corrosion resistance and mechanical stability in tough environments. The floodlight supports multiple beam angle options, ranging from super narrow (18°) to extra wide beam (120°), allowing tailored light distribution for specific tasks or site requirements.
The electrical connection is housed in a GRP (glass-reinforced polyester) junction box, which is UV-resistant, seawater-resistant, and vibration-proof. It includes two M25x1.5 brass nickel-plated cable glands for secure and flexible wiring, along with reducer inserts to accommodate cables with diameters from 7 to 17 mm. The single-module version weighs 13 kg, while the dual-module version weighs 26.8 kg, inclusive of the junction box.
With its combination of advanced LED technology, durable construction, and high lumen output, the FL70 LED UL is an ideal lighting solution for safe-area applications requiring reliability, longevity, and high-intensity illumination.
