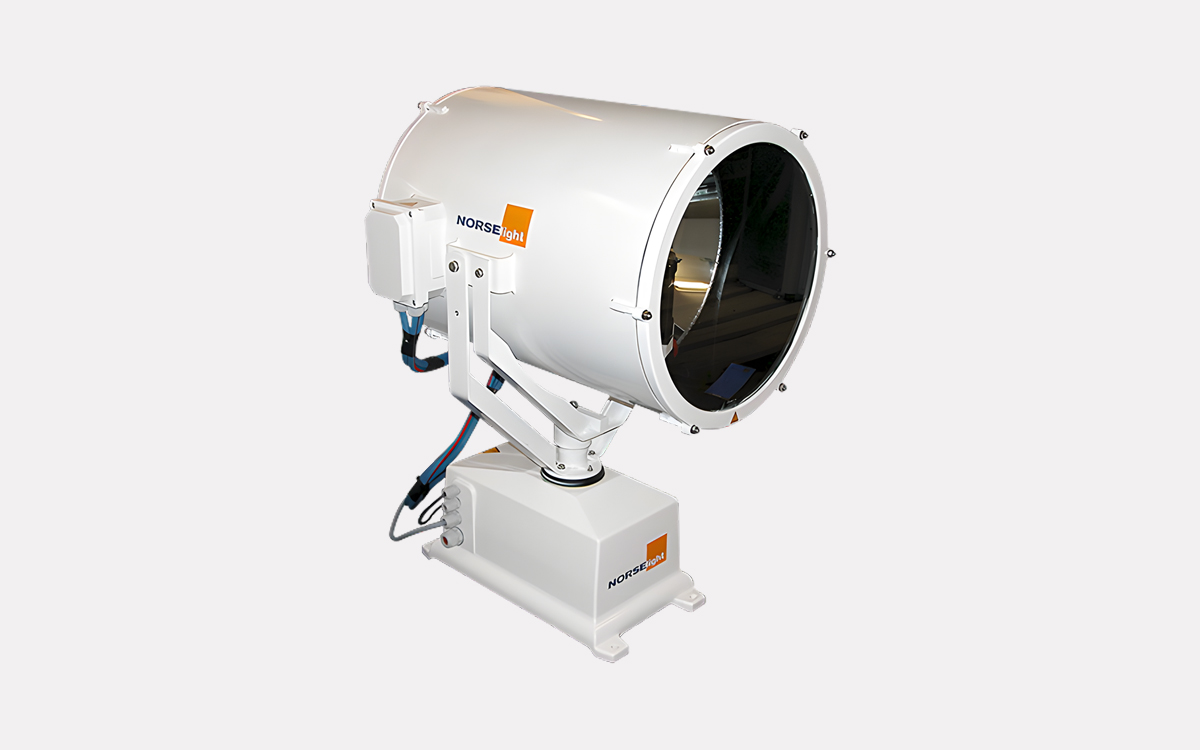

The SL40 R5 Xenon Searchlight is engineered to meet the rigorous demands of marine environments, offering high performance, durability, and ease of operation. With a lightweight design featuring an aluminium motorhouse and lamphouse, the SL40 R5 is simple to mount and built to resist corrosion. Its compact, streamlined structure makes it ideal for vessels operating in extreme conditions such as tugs, icebreakers, offshore supply vessels, and other ice-classed ships. Designed to withstand arctic environments, the SL40 R5 performs reliably at temperatures as low as -40°C.
This searchlight system is built for vessels with high lighting output demands. It is available in various wattages and voltage configurations, with Xenon lamps ensuring intense illumination and long operating life. A major advantage of the SL40 R5 is its integrated xenon power supply. Unlike traditional systems requiring large and heavy external units, this built-in supply simplifies installation, reduces engineering time, and eliminates the need for additional cables and external enclosures. This results in significant cost savings and easier system integration.
The SL40 R5 offers advanced control through a reliable, proven electronic system. It is compatible with both conventional multi-core cable setups and the modern R60 BUS touchscreen control system. Each unit can be operated from an unlimited number of main panels. These panels include a joystick and buttons for lamp power, movement control, and speed adjustment in both horizontal and vertical directions. Certain versions also offer lamp focus functionality. The main panel is IP67-rated (front-facing), suitable for ambient temperatures from -20°C to +50°C, and supports cable runs up to 5000 meters—ideal for large vessels.
Mechanically, the SL40 R5 is equipped with a unique Norselight-designed geared motor drive that enables smooth and reliable movement in both horizontal and vertical directions. The sealed gear mechanism is maintenance-free and built to withstand the harshest maritime environments, providing long-lasting operation. Vertical movement capability reaches up to 60 degrees, offering wide-angle coverage and versatile positioning.
For optical performance, the SL40 R5 incorporates high-quality reflectors made from polished aluminium, optimized for Xenon light sources to provide superior beam focus and clarity. Most versions feature adjustable beam capability, allowing precise control over illumination areas. Lamps are sourced from top-tier manufacturers, ensuring reliable, powerful light output in all weather conditions.
Housed in high-grade seawater-resistant aluminium with a durable white polyester coating, the SL40 R5 ensures long-term resistance to saltwater and environmental wear. Custom RAL colors are available on request to match vessel aesthetics or operational preferences. Mounting is straightforward, with direct deck mounting or pedestal options available.
Each SL40 R5 unit comes as a complete searchlight package (CFP), including the main control panel and integrated power supply in Xenon configurations. These versions always include beam focus adjustment. Electrical connections are made through polyamide cable glands, ensuring secure and weather-resistant installations.
With its robust construction, high-output lighting performance, and flexible control architecture, the SL40 R5 Xenon Searchlight is a reliable and powerful choice for maritime professionals operating in the world’s toughest conditions.
