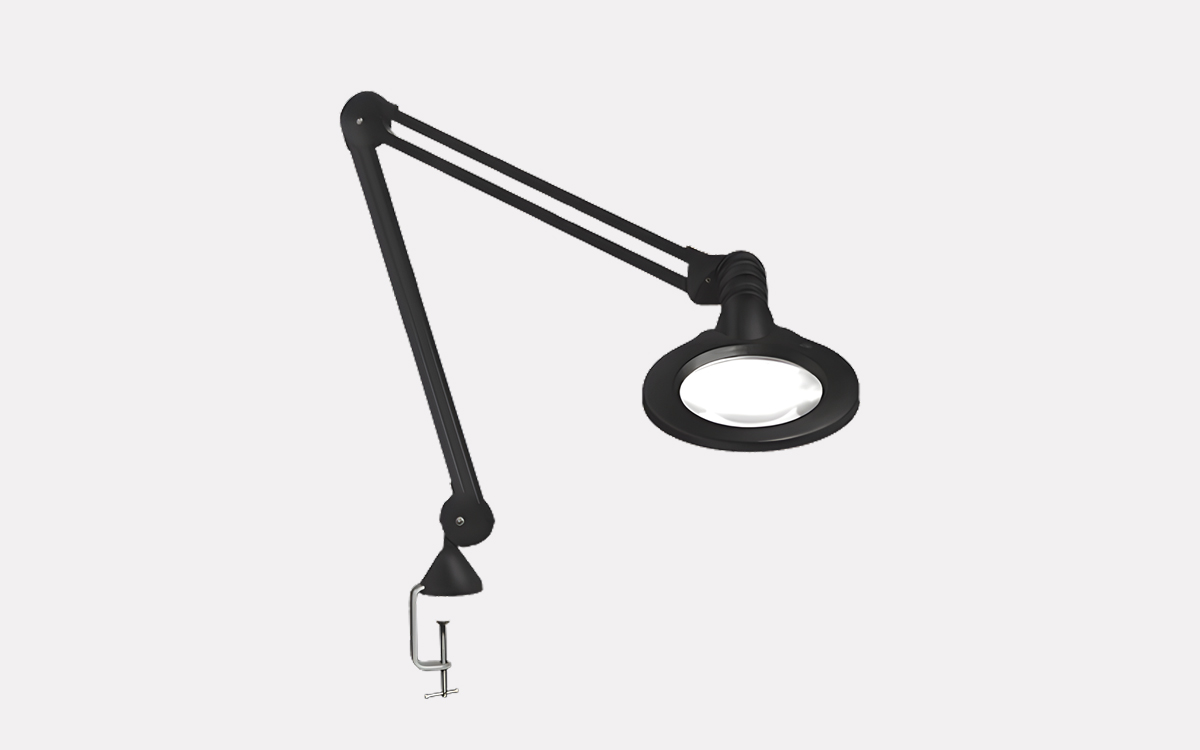

The KFM LED ESD is an industrial LED magnifier specifically designed for the electronics industry, where electrostatic discharges can be harmful or even fatal to sensitive electronic components. This magnifier is engineered to safely dissipate static charges as they occur, preventing damage. Its robust all-metal construction combines durability with a sleek, professional design. A flexible arm and an adjustable joint between the lamp head and arm ensure precise positioning for optimal use. The magnifier features a 127 mm optical-grade glass lens of the highest quality, delivering an exceptional viewing experience. Thanks to the carefully positioned LEDs, the magnification is virtually shadow-free, providing excellent color rendering for clear and accurate detail.
The KFM LED ESD offers maximum flexibility and precision through its spring-balanced arm, which allows for smooth vertical and horizontal movement while maintaining position without drifting. The magnifier’s body consists of a steel arm and an aluminum shade, finished in black. For easier handling, an optional matching handle accessory is available to aid in adjusting the shade. The standard version comes with either a 3 or 5 diopter glass lens, and a protective cloth cover is included to shield the lens from dust and prevent it from accidentally focusing sunlight like a burning glass.
Equipped with two semi-circular LED modules, the KFM LED ESD represents the future of illumination. These LEDs are dimmable from 1 to 100 percent and have a long lifespan of approximately 50,000 hours—equivalent to 25 years or more of normal use—meaning the light source will never need replacement. To conserve energy, the LED modules automatically shut off after either 4 or 9 hours of operation. The correlated color temperature (CCT) of the LEDs is 4000 K, providing neutral white light, and the color rendition index (CRI) is 80, ensuring colors appear natural and true.
The magnifier is designed with practical mounting options. It comes standard with a table clamp (AH clamp), while other clamps, integrated table mounts, and trolleys are available upon request. The arm technology consists of a parallel, three-pivot arm with a length of 105 cm, allowing for versatile and stable positioning. Additional magnification options include secondary lenses with 4D, 6D, or 10D diopters that can be attached to the standard crown glass lens to suit various detailed inspection needs. For more information about magnification principles and how Luxo illuminated magnifiers assist users across different fields, further resources are available.
