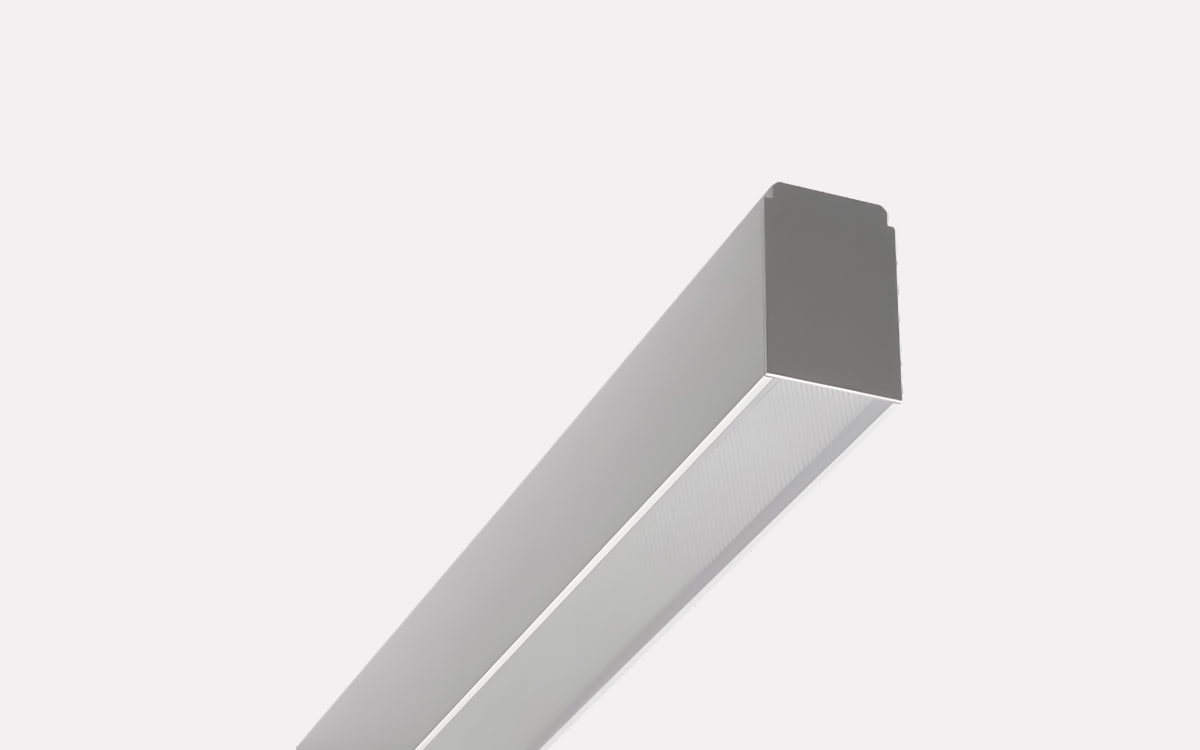

The SLIMLUX® 610 SR is a versatile LED luminaire designed specifically for surface mounting or suspended installation with an accessory kit, accommodating lengths up to 4 meters. It is ideal for a variety of applications including corridors, large meeting rooms, and other spaces where aesthetically pleasing and energy-efficient lighting solutions are required for illuminating long linear areas. With a slim profile of just 66 mm wide, this high-efficiency fixture delivers colour 840 light output in a direct, linear form, making it a sleek addition to modern interiors.
To ensure visual comfort, the SLIMLUX 610 SR offers different optic options tailored to specific lighting needs. The glare control optic MP/PC features a micro-prismatic diffuser that suppresses high-angle light above 65 degrees, helping the luminaire achieve a Unified Glare Rating (UGR) of less than 19 and meeting the luminance limits recommended by standards such as BS-EN 12464, CIBSE LG7, and the British Council for Offices (BCO). This makes it particularly suitable for work environments by providing a comfortable and glare-free illumination. Alternatively, the OP optic with an opal diffuser is designed for general area lighting.
The luminaire is available in white, grey, or black finishes, with an extruded aluminium body that combines durability with modern aesthetics. For mounting, SLIMLUX 610 SR supports surface row mounting through a modular system that includes starter (SRS), middle (SRM), and end (SRE) housings to complete continuous runs, all supplied with diffuser optics and endcaps on starter and end units. For pendant mounting without uplight, suitable suspension accessories can be ordered separately.
Light output ranges from low (LO) to high (HI), delivering between 1,260 and 10,400 lumens depending on the configuration. Colour temperatures are offered at 3000K or 4000K with a CRI of 80 and MacAdam step 3 consistency, with tuneable white and CRI 90 options available upon request to meet specific lighting design needs.
The SLIMLUX 610 SR is equipped with a dimmable DALI driver as standard and offers a 3-hour integral emergency system, which comes in multiple variants including Standard (E3/S), Self-test (E3/ST), addressable DALI (E3/DALI), or wireless (E3/WR-D). Additionally, integrated sensor options are available, including Wireless Radio Sensor (CPW2-SEN), Zigbee Wireless Sensor (MPW-SEN), and DALI-2 Sensor (CPD2-SEN), supporting smart lighting controls.
For those requiring environmentally conscious solutions, an Environmental Product Declaration (EPD) is available on request, reflecting the product’s sustainability credentials. Overall, the SLIMLUX® 610 SR combines high performance, customizable lighting control, and elegant design to deliver efficient, comfortable illumination for demanding architectural spaces.
