Dark Sky-Compliant LED Street Light for Urban Roads, Paths, and Building Perimeters
Trilux

Dark Sky-Compliant LED Street Light for Urban Roads, Paths, and Building Perimeters

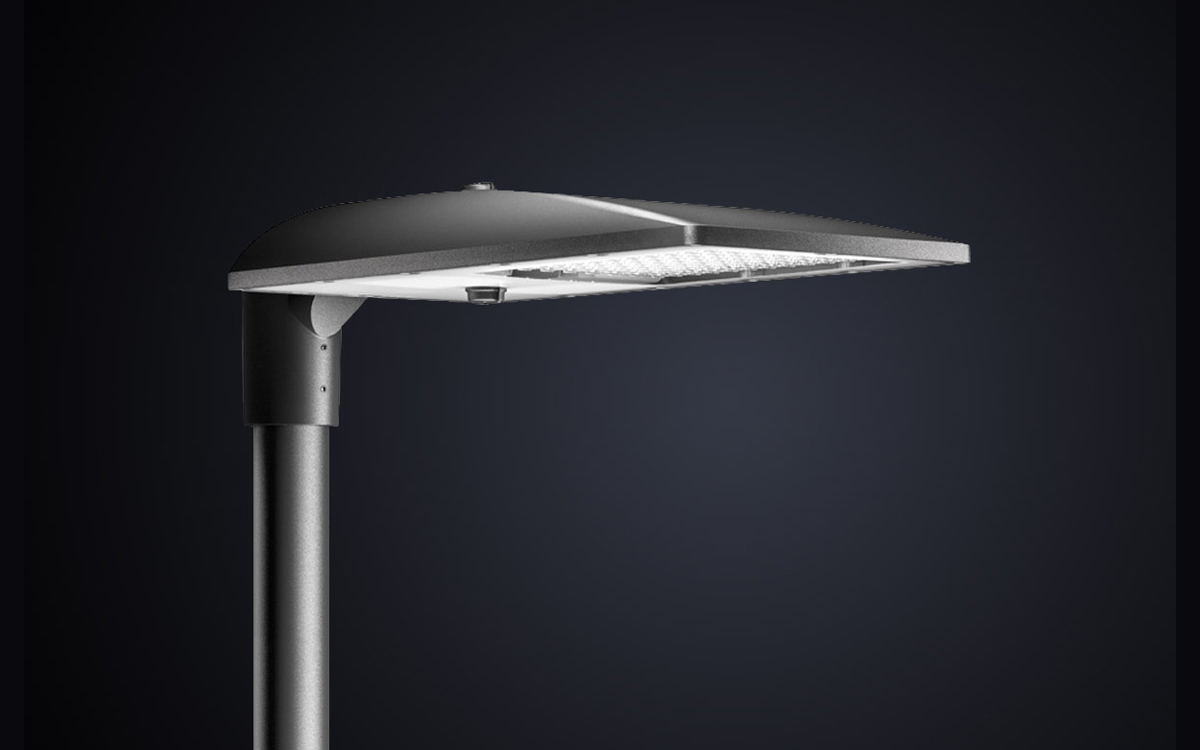

The Jovie LED luminaire is a versatile, high-performance solution for illuminating streets, plazas, car parks, and the areas around commercial, industrial, or retail buildings. It combines sleek, modern design with advanced optical and control technologies, offering both aesthetic appeal and top-tier lighting performance. Equipped with Multi-Lens Technology (MLTIQ) and Constant Light Output (CLO), the Jovie ensures optimal visibility, uniform illumination, and long-term reliability across a wide range of urban and architectural applications.

Designed with adaptability in mind, the Jovie LED series supports a variety of switching variants and lumen packages from 1,000 to 24,000 lumens. It offers precise light control through beam options including asymmetric wide (AB), asymmetric medium wide (AM), extremely symmetric wide (SB), and even a lens configuration optimized for pedestrian crossings. It is also available in a Multi-Lumen version (ML) for adjustable luminous flux and dimming profiles and can be specified in several colour temperatures, from 2200 K to 4000 K, ensuring tailored performance in both functional and decorative settings.

Future-ready and sustainability-focused, the Smart Lighting Ready (SLR) version of the Jovie supports Zhaga-compliant interfaces and D4i-certified integration for smart city applications, enabling seamless integration of sensors and lighting control systems. It also features advanced monitoring capabilities including light and energy monitoring, supporting data-driven urban lighting strategies. The luminaire’s sustainable design includes Dark Sky compliance (ULR = 0), directing all light downward to preserve views of the night sky and reduce environmental impact.

Jovie’s construction is equally robust and refined. The die-cast aluminium luminaire body, coated in a weather-resistant anthracite powder finish (similar to RAL 703), ensures durability in harsh conditions. A printed PMMA cover adds visual refinement and can be custom-designed with logos, patterns, or city emblems, transforming the fixture into a branding or decorative element. Behind the cover, a weather-protected label can be included for service information. The unit weighs 9.0 kg, has an impact rating of IK08, a protection class of IP66, and a windage area of 0.220 m². For marine environments, a sea-weather-suitable coating is available.

Electrically, the Jovie LED uses a digitally dimmable (DALI) or switchable control gear unit, with variants for self-regulating (LA), power-reduced (LR), or smart-ready (S) configurations. Its electronic transformer is replaceable according to EU Ecodesign Directive (VO 2019/2020), and the luminaire is ENEC-certified and CE-marked, offering surge protection of 6 kV (differential) / 10 kV (common mode) for reliable operation in exposed locations. The connection cable is routed externally, allowing tool-free installation without opening the luminaire body, improving installation speed and safety.

Mounting options are equally flexible. Jovie can be installed as a post-top luminaire (spigot Ø76 mm / Ø60 mm) or bracket-mounted (spigot Ø42 mm / Ø60 mm) with post fixing accessories. The luminaire head is adjustable in inclination, with angle settings of 0°, 5°, 10°, and 15° for post-top mounting, and 0°, -5°, -10°, and -15° for bracket mounting. Additional accessories allow cross-arm mounting for larger area applications, and with its high luminous efficacy up to 135 lm/W, the Jovie can even function as a floodlight for industrial zones.

In every configuration, the Jovie LED luminaire offers a powerful blend of modern aesthetics, smart technology readiness, and sustainable outdoor lighting performance. Its customizability, efficient optics, and long service life of 100,000 hours (L80B10) make it a future-proof solution for municipalities and developers committed to quality, flexibility, and environmental responsibility.

https://www.trilux.com/en/products/jovie-led/
