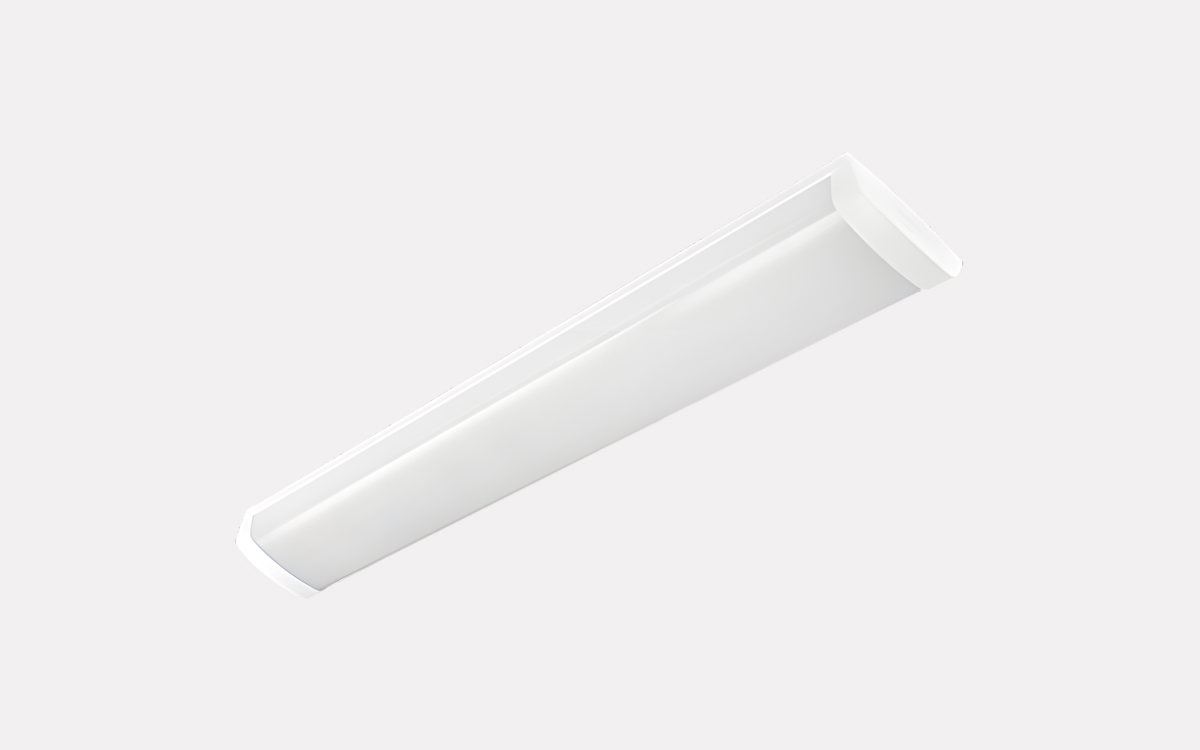

The Glamox TL44-S G2 LED is a sleek, splash-proof luminaire designed for surface mounting, offering a versatile and reliable lighting solution for a wide range of indoor and semi-outdoor applications. With its streamlined profile and efficient functionality, it provides an elegant yet durable option suitable for use in corridors, bridges, engine rooms, or any setting that demands a high IP rating, excellent EMC performance, and consistent high luminosity. The luminaire can be easily mounted onto ceilings or walls, making it an ideal fit for environments requiring both visual appeal and technical resilience.
Engineered for long-term performance, the housing of the TL44-S G2 LED is constructed from galvanized, pre-painted steel and finished with a second layer of white epoxy/polyester powder coating, offering superior resistance to corrosion. The end caps are made from injection-molded ASA plastic and feature an integrated locking mechanism, preventing unauthorized opening without tools. The diffuser is made of extruded, fire-rated opal polycarbonate, providing even light distribution and added safety in demanding environments.
The luminaire is available in two standard configurations: a 662 mm version delivering 2000 lumens, and a 1222 mm version producing 3600 lumens. Both are offered with a choice of 3000K or 4000K color temperatures and a CRI of 80 as standard, with CRI 90 and tunable CCT options available on request. The color consistency is maintained within a 3-step MacAdam ellipse for visual uniformity.
For enhanced energy efficiency and control, the TL44-S G2 LED is compatible with DALI dimming and can be equipped with integrated sensors, such as the SMR-SEN ultrasonic motion sensor. These smart lighting options not only help reduce energy consumption but also extend the lifetime of internal components. Emergency versions with an integrated three-hour battery backup ensure continued illumination during power outages, supporting critical safety requirements.
Electrical connectivity is streamlined with one membrane gland located in each end cap and two additional membrane glands on the top of the luminaire housing. A five-pole, 2.5 mm² push-in terminal block is provided for standard wiring, with through-wiring capability (5 x 2.5 mm²) available as an option. Accessories such as suspension kits are also offered to support a variety of installation needs. The Glamox TL44-S G2 LED combines durability, efficiency, and versatility into a single lighting solution tailored for professional, industrial, and maritime environments.
