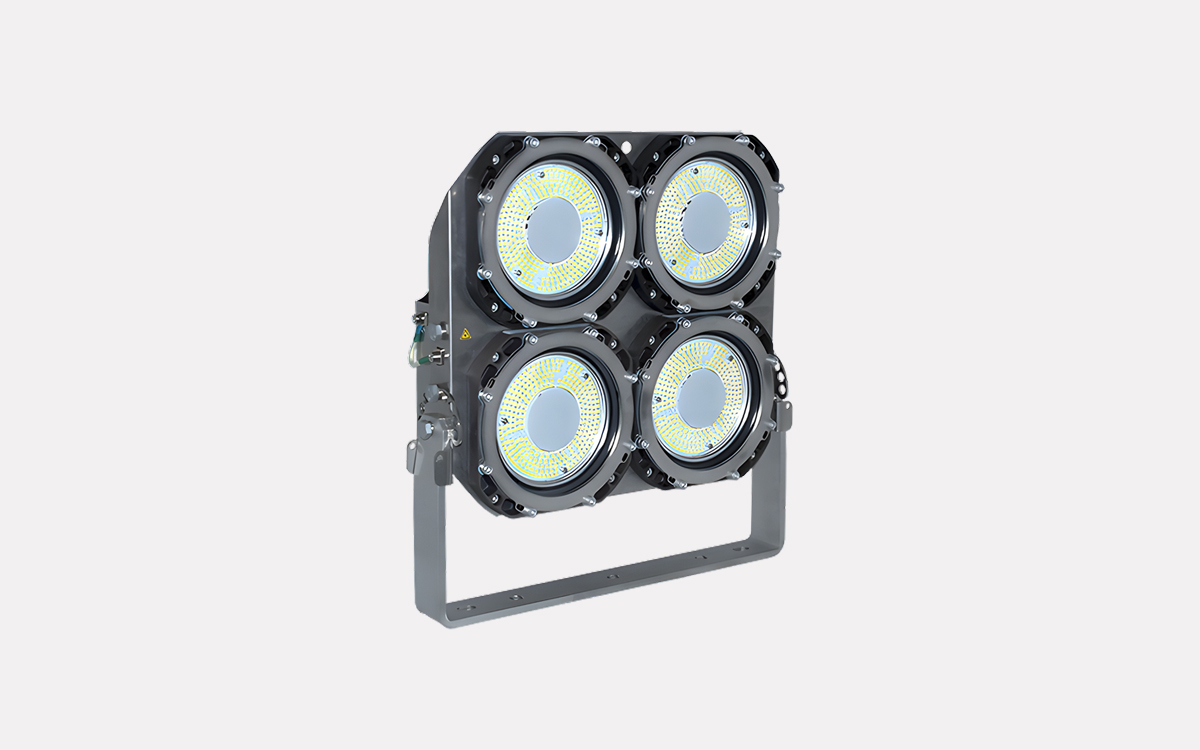

The FX60 LED UL is a rugged, high-performance Ex de LED floodlight engineered for use in hazardous environments, specifically Zone 1 and Zone 2 classified areas. Designed for durability, safety, and longevity, this floodlight delivers reliable illumination with no maintenance requirements. It is CSA certified and built in compliance with maritime classification society rules and North American safety standards, ensuring its suitability for offshore platforms, chemical plants, refineries, and other demanding industrial applications.
The fixture features an Ex d LED module that is completely enclosed without a flame path, paired with an Ex e external connection box for safe and simplified wiring. This dual-certification design separates the light engine and the wiring connections, improving safety and facilitating easy maintenance. The seawater-resistant die-cast aluminum housing is anodized for maximum corrosion resistance, while the mounting bracket and frame are constructed from stainless steel AISI 316, making the fixture ideal for harsh marine and offshore conditions.
Electrically, the FX60 LED UL includes an integrated IC driver that operates efficiently on 120Vac, 230Vac, or 254Vac at 50/60Hz, consuming just 40W per module. The driver technology eliminates inrush current, enhancing reliability and reducing the load on electrical circuits. Each module functions independently and is connected through the Ex e-certified external terminal box, which includes two M25 brass nickel-plated cable glands, accommodating cable diameters from 10 to 17 mm and supporting wire cross sections up to 6 mm².
The light source is a high-efficiency LED array, delivering 4500 lumens per module with a rated lifetime of 100,000 hours at 45°C ambient temperature. The FX60 can be configured with one to four modules, providing total system output ranging from 4500 to 18,000 lumens in a 5000K color temperature with excellent color rendering. Optical options include wide, medium, or narrow beam distributions, all enclosed within a clear safety glass dome to ensure both performance and protection.
Operationally, the FX60 functions in extreme temperatures, from -50°C to +55°C, maintaining stability and brightness in harsh climates. Mounting is handled by an adjustable bracket made from uncoated stainless steel (AISI 316), with hole plates and position locks on both sides for secure installation—especially beneficial in multi-module configurations.
Overall, the FX60 LED UL offers a robust, energy-efficient, and maintenance-free floodlighting solution for hazardous and marine environments, with superior thermal management, CSA-certified safety, and modular flexibility to meet the most demanding illumination requirements.
