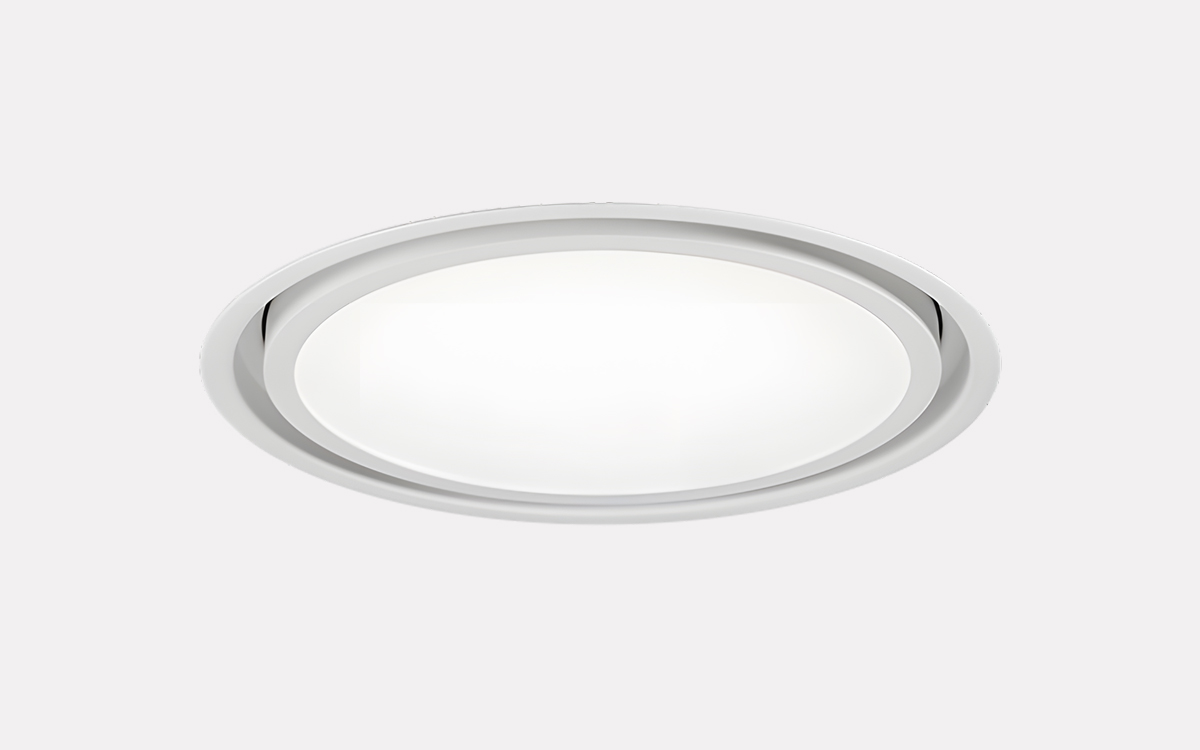

The Glamox C90-RC is a circular recessed LED panel light designed for high-specification environments. It features an evenly illuminated diffuser and is available in white or black finishes, with other colours available upon request. For added flexibility, the semi-recessed version of the C90-RC allows the luminaire to be adjusted out from the frame by either 30 mm or 50 mm using an accessory.
As part of the comprehensive C90 product family, the C90-RC can be combined seamlessly with surface-mounted or pendant-mounted variants, ensuring a consistent aesthetic throughout any project. This harmonized design approach supports high-quality, cohesive lighting solutions across different spaces.
The C90-RC supports advanced light management capabilities, including DALI dimming and compatibility with all Glamox Light Management Systems. Additionally, it can be supplied with tunable white technology, making it suitable for Human Centric Lighting applications that promote wellbeing through dynamic lighting.
This luminaire is suitable for recessed mounting in plasterboard ceilings or soft tile structures within T-bar systems. It delivers an output of 2800 lumens, available in colour temperatures of 3000K or 4000K, with a CRI of Ra 80 and MacAdam step 3. It also offers tunable white (CCT) options to enhance lighting flexibility.
For improved energy efficiency and automation, the C90-RC is available with integrated PIR sensors—either a relay-based ON/OFF switch sensor (SPR-SEN) or a corridor-function wired sensor (SPC-SEN). The product can be supplied with an Environmental Product Declaration (EPD), underscoring its sustainability credentials.
Connection is facilitated through an external driver for LINECT, compatible with 3- or 5-pole connections. The optic options include opal (OP) and microprismatic (MP) diffusers. Emergency lighting versions are available, including Standard (S), Self-test (ST), or DALI systems, with 1-hour or 3-hour durations.
Additional accessories include a recessed mounting weight distribution plate designed for soft structure ceilings. The luminaire can also be installed as semi-recessed with 30 mm or 50 mm extension using an accessory. The driver options consist of electronic ballast (HF) or DALI dimmable variants, both rated for up to 100,000 hours lifetime with a 10% maximum failure rate at 25°C.
The body is constructed from powder-coated aluminium, available in white or black finishes, providing both durability and a sleek, modern appearance.
