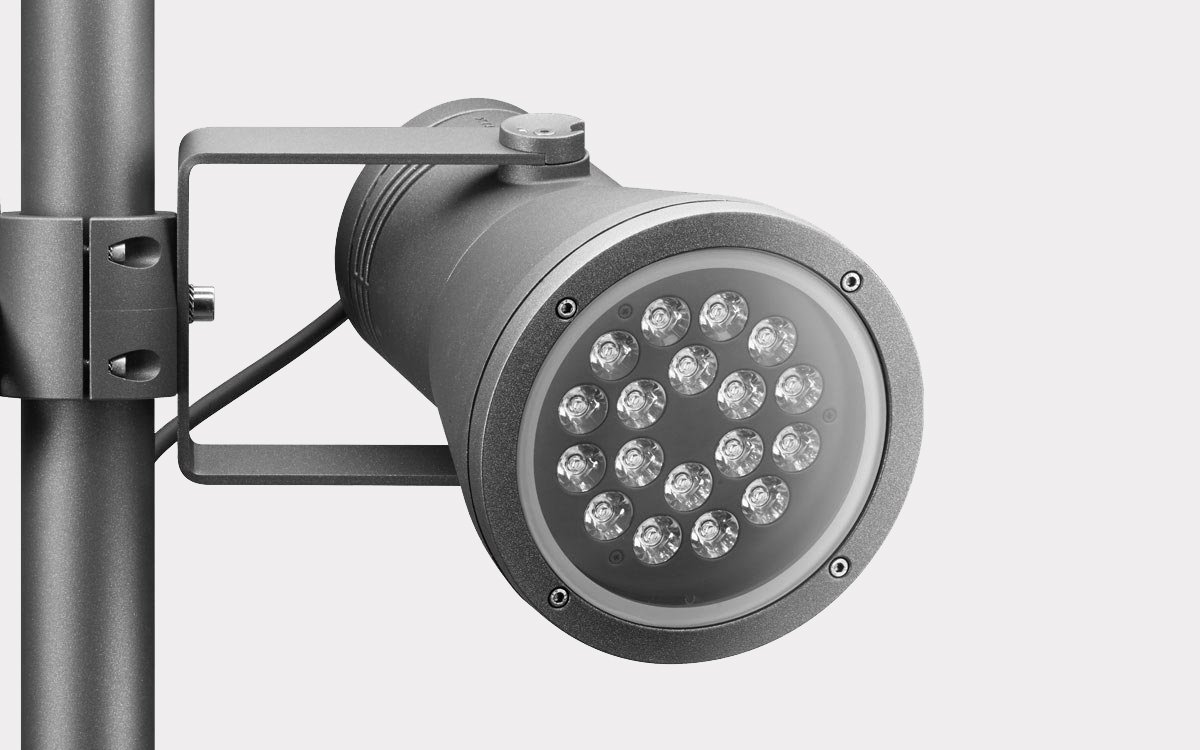

The Faciella LED projector is a versatile and high-performance lighting solution designed to highlight objects, surfaces, and architectural elements with precision and elegance. Engineered for a wide range of exterior applications—from arcades and pedestrian zones to passages, building facades, and accent lighting—the Faciella LED series offers a unified, aesthetically consistent design across multiple lighting tasks. Whether illuminating a single surface or an entire building, this projector simplifies the path to perfect light through flexibility, efficiency, and ease of installation.
Available in three construction sizes—Faciella 08, 15, and 20—the luminaire accommodates various lighting demands while maintaining a consistent design language. Each size is tailored to suit different scales of architectural illumination, making it ideal for both small accent areas and large structural surfaces. With multiple luminous flux packages (ranging from 500 to 4,200 lumens) and beam angles—including rotationally symmetric narrow, medium-wide, and wide distributions—the Faciella LED can be fine-tuned to emphasize architectural features with clarity and style. Light distribution types such as RT (narrow low), RE (narrow), RM (medium-wide), and RB (wide) further expand its design versatility.
Installation is straightforward and efficient. The luminaire is delivered with a pre-connected cable, eliminating the need to open the housing during mounting. It supports direct ground installation, as well as optional accessories like a ground stake or post-fixing via stainless steel strap, suitable for pole diameters between 40–130 mm. This streamlined approach minimizes setup time and effort, while ensuring robust and secure installation in various outdoor environments.
The Faciella LED is equipped with a high-quality LED system based on a COB LED module, delivering up to 3,800 lumens at a connected load of 41 watts and achieving a luminous efficacy of up to 102 lm/W. The luminaire supports fixed luminous flux and color options, including warm white (3000 K) or neutral white (4000 K), with excellent color rendering (CRI > 80) and consistent light quality (MacAdam ≤ 4 SDCM). It boasts a long service life of 50,000 hours (L80 at 25°C), and the light source is replaceable in accordance with current EU ecodesign regulations.
Constructed from die-cast aluminium, the Faciella LED spotlight features a highly weather-resistant anthracite finish (similar to RAL 703) with a metallic effect. The luminaire's housing integrates a pan-and-tilt mechanism, offering a swivel range of 195° and a full 360° rotation for precise light targeting. A 5 mm thick, extra-clear flat cover enhances light transmission while maintaining protection. The housing is rated IP65 for both the body and the lamp compartment, with impact resistance classified at IK06, making it suitable for tough outdoor environments.
Electrically, the Faciella LED is equipped with a factory-installed 5,000 mm connection cable and a cable gland (Pg13) that accommodates cable diameters from 5 to 12 mm. The luminaire includes a switchable electronic transformer and features surge protection (1 kV differential mode / 2 kV common mode). It operates reliably on direct voltage supply grids, and both the control gear and light source are replaceable per ecodesign standards. Compliant with EU product safety directives, the Faciella LED bears the CE marking and meets all relevant quality and safety requirements.
With its robust construction, optical precision, and wide configurability, the Faciella LED projector is a durable and intelligent lighting tool for professional outdoor lighting applications, where both performance and design coherence are paramount.
