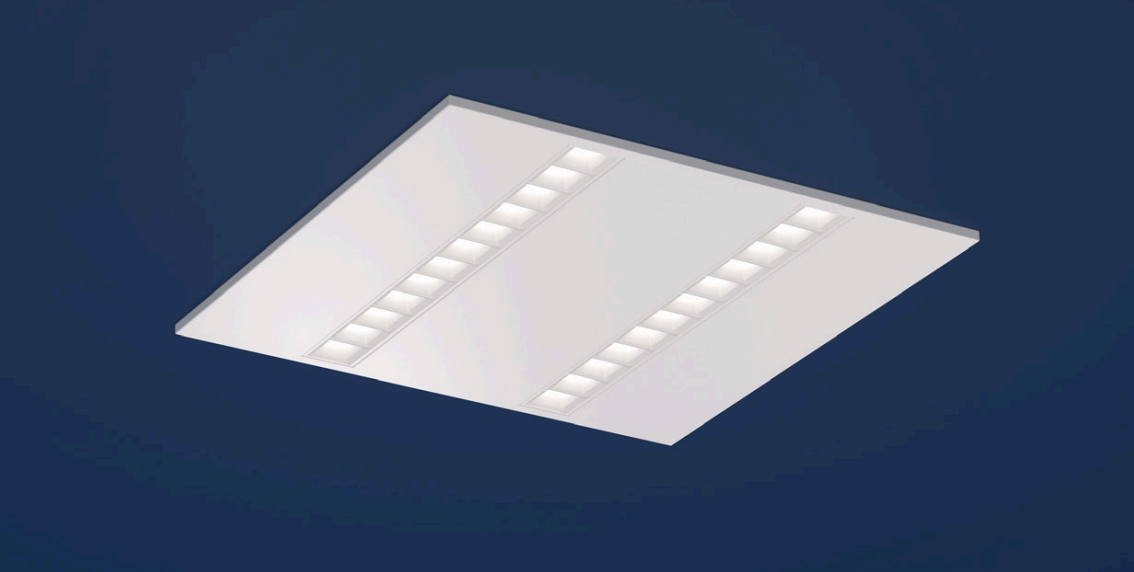

Omega Moduline is Thorn’s new sustainable recessed panel with replaceable LED modules and driver. Designed for the demands of today’s world, Omega Moduline is a stylish recessed LED panel perfect for education and office usage. Not only is it high-performance, the luminaire features replaceable LED modules and is easy to install.
Available in three panel sizes (600x600, 625x625 and 300x1200 mm), Omega Moduline features two linear LED modules both containing 12 cells with primary lens optics. It also features an output of up to 5000 lm that is carefully controlled to provide low-glare light (UGR <19) as well as a high efficacy of up to 153 lm/W.
- The key feature of OMEGA MODULINE is the ability to replace LED modules, drivers & sensors making it an upgradeable, more environmentally friendly option with prolonged lifetime with careful maintenance.
- Each complete linear LED module can be easily replaced tool-free and offers a simple click-in mechanism, this allows a change of LED modules at end of life or the change of colour temperature or colour rendering if desired.
- A combination of deep cells with primary lenses provide high quality lighting with even light distribution and efficient glare control at very high brightness of the LED modules.
- Available in sizes 600 x 600 mm, 625 x 625 mm, 1200 x 300 mm in different lumen packages (3300, 4100, 4800 lumen), colour temperatures of 3000 K, 4000 K and VCT 2700 K…6500 K and options of CRI 80 and CRI 90.
- The design allows the clean integration of sensors, controls and emergency options into the front of the panel with all components neatly stored within a gear tray on the back of the panel.
A choice of colour temperatures are offered, including 3000 K and 4000 K. In addition, Omega Moduline is available with Variable Colour Temperature (VCT) technology which uses high-quality LEDs to tune the colour temperature from a warm 2700 K up to a very cool 6500 K, depending on the needs of a space. To learn more, click here.

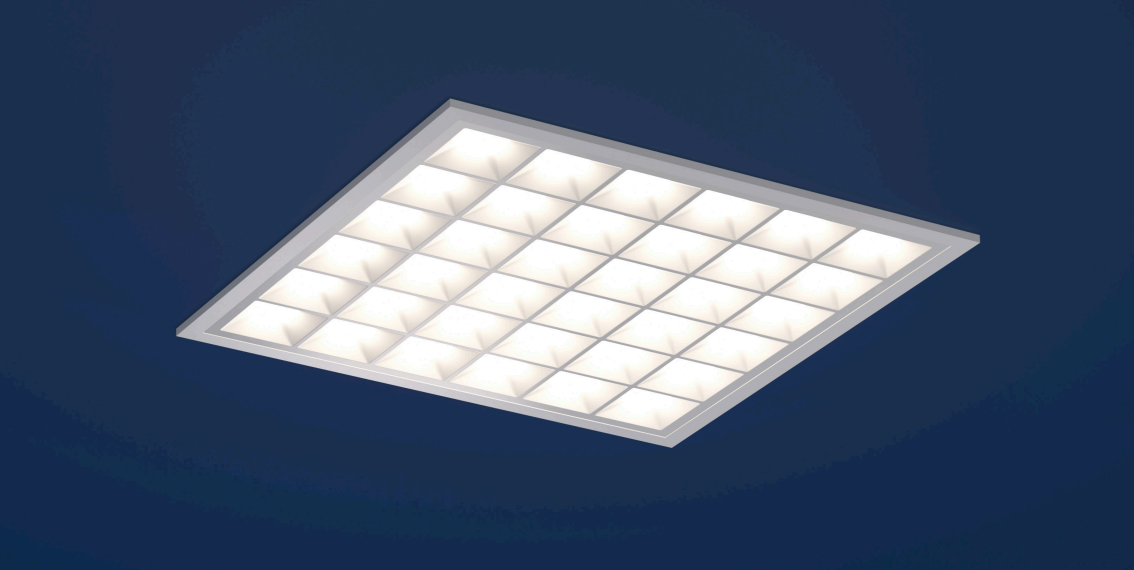

Beta Cell combines a distinctive cellular design with high efficacy and excellent glare control. Thorn’s newest recessed indoor luminaire is designed for quick and easy installation and benefits from a cellular design with prismatic lenses. As a stylish alternative to a typical LED flat panel, Beta Cell easily meets the demands of office and academic settings.
Available in two different sizes (600 x 600 mm and 625 x 625 mm) and colour temperatures (3000 K and 4000 K), the luminaire has an efficacy of up to 133 lm/W and a durable 50,000 hour lifetime. Additionally, Beta Cell offers carefully controlled glare levels and fixed output or DALI dimmable options along with CRI 80 and high colour rendering CRI 90 LEDs. The result? An aesthetically pleasing option that’s different to the norm. Click here for more information.
- Available in square 600 and 625 sizes suitable for modular ceilings and when combined with the required mounting accessories can be suspended, surface mounted or installed in plasterboard ceilings
- Offering a modern, alternative appearance to standard flat panels, Beta Cell is an ideal, cost effective solution, for replacing old existing luminaires during a refurbishment project
- The 36 LED cells (arranged in a 6x6 pattern) each have a prismatic primary lens to allow for higher light output with low glare and user comfort
- Easy to install with twist and lock wiring connectors to the LED driver

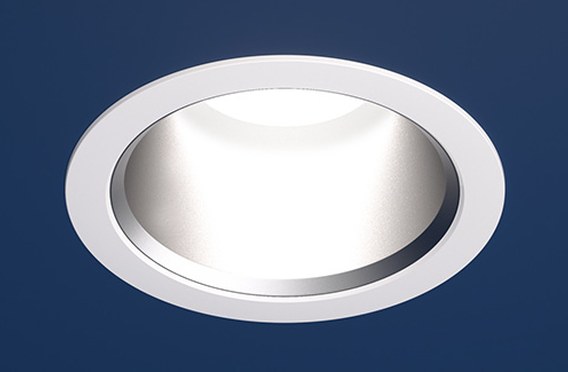

A high efficient and sustainable LED downlight range with recessed height <100mm, cut out of 100mm, 150mm or 200mm, and output of up to 5000 lm. The refined downlight family where performance meets state-of-the-art efficiency with durability, ingress protection and circular design quality.
Improving on the best of Chalice and Chalice Pro, the newly launched third-generation Chalice delivers an adaptable, in-depth range that can meet a plethora of demanding downlighting needs, ensuring it is suitable for installation in numerous applications. This includes office, education, retail health and care, residential, as well as industry and transportation (plus many others).
High efficient thermal management from diecast aluminium with recycling content >90%. IP54 as standard or IP65 with pre-mounted cover. IK09 rating. Fixed or dimmable driver (EHF, HFIX, COR, NLX) optional in combination with emergency E3/E3D. Colour temperature is 3000K/4000K/ with CRI >80 or CRI >90. Reflector made from PC with three surfaces: RSB in satinbrite finish with wide beam, RMB in high glossy/specular finish (UGR19 according to EN12464), RWH in white finish with wide beam. Luminaire luminous flux: 800–5000 lm. Lifetime is 50,000 hours at L90 (Ta 25°C).
Features
- Highest possible luminaire efficiency for the application with up to 155lm/W for reduced energy cost
- Complete with colour temperature 3000K, 4000K LED in CRI80 or CRI90. Available lumen packages between 800 and 5000 lm (depending on size)
- Three smooth reflector surfaces: RSB in satinbrite finish with wide beam, RMB in high glossy/specular finish for improved glare control UGR19 according to EN 12464), RWH in white finish with wide beam
- Tool free spring clip installation, out of the box for mounting in a wide range of ceiling types with ceiling thicknesses of 1-40mm. Remote pluggable driver makes installation quick and easy. Through-wiring possible
- IP54 as standard for recessed luminaires, IP65 available in myProduct. High ceiling (5000lm) luminaire in IP20, IP43 available in myProduct. Surface mounted IP43 as standard, IP54 available.

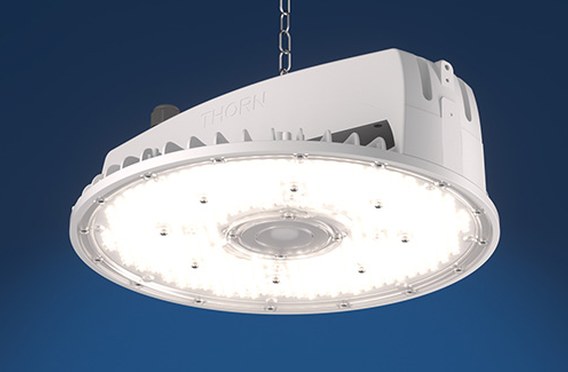

The latest generation of our HiPak high bay is a highly efficient one-for-one replacement for conventional industrial luminaires. But with an efficacy of up to 180 lm/W – it promises the quickest payback than ever before.
With a choice of three sizes and six lumen outputs up to 35,000 lm, the next generation of HiPak is a solid option for refurbishment and retrofit projects. Its perfectly crafted optics and refractor accessories also mean that HiPak can just as easily be used in retail applications where appearance and visual comfort are essential, as well as logistics, manufacturing or warehouse facilities.
But we’ve not forgotten about sustainability. HiPak features a range of control options to enable even greater energy savings.
The new generation of Thorn’s innovative industrial high bay luminaire offers stunning performance and a compelling ROI
- Introducing our new high bay luminaire with two light distributions: wide beam for open spaces and rack beam for high shelves. Illuminate your space with precision and efficiency.
- Highly efficient one-for-one replacement for conventional industrial luminaires – and with a higher efficacy than its predecessors, it promises a quicker payback than ever.
- With three sizes and six lumen outputs ranging up to 35000 lm, HiPak is an ideal option for point-for-point replacements on retrofit projects.
- With wide beam (WB) and rack beam (RK) light distributions available, and specially designed reflectors, HiPak is also suitable for applications such as retail, where appearance and visual comfort are high priorities.
- HiPak enables greater energy savings through DALI versions, and motion and daylight sensor integration. Emergency option is also available.
- For even higher energy-saving potential, a sensor can also be combined with basicDIM wireless. This offers a simple and convenient way to connect the luminaires wirelessly across our portfolio.
