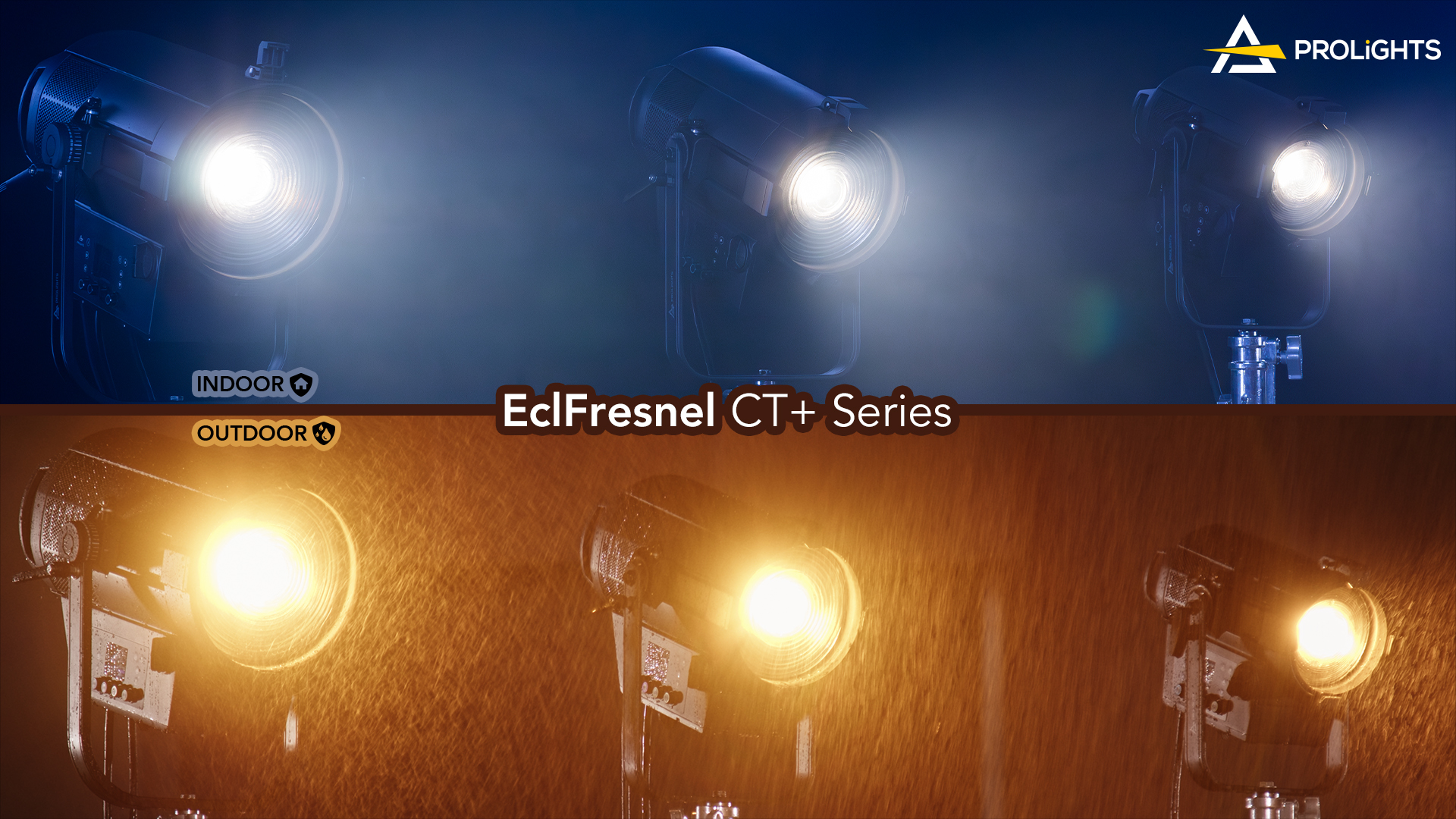

Prolights proudly introduces the EclFresnel CT+ series, an innovative range of LED Fresnel fixtures designed to redefine the standard in the category. With an newly engineered 6-color Spektra calibrated LED source, designed and manufactured in Europe, this series sets industry standards for performance, versatility, and control.

Comprising six fixtures, the EclFresnel CT+ series caters to a wide range of lighting needs. It is thoughtfully divided into three sizes, ensuring seamless integration into indoor theaters, studio sets, and demanding outdoor on-location Film with IP65-rated models. The size consistency simplifies setup and enhances adaptability.
  • S and S IP models: Featuring a 200 Watt Fresnel with a 150 mm (6 inches) lens.
  • M and M IP models: Boasting a 350 Watt source paired with a 200 mm (8 inches) lens.
  • L and L IP models: The largest in the range, housing a powerful 600 Watt source with a 250 mm (10 inches) lens.
The new 6-color Spektra calibrated LED sources significantly boost flux across whites (average 30% higher in white than previous generations) while delivering exceptional performance on mixed colors and primaries with a 15% increased gamut and two times the flux on colors than previous models. These fixtures achieve outstanding scores in Color rendering, R9, and TLCI, and can enable an SSI optimized mode, elevating the quality of lighting output.

With a more compact light source, the EclFresnel CT+ series, coupled with a glass Fresnel lens, offers an impressive beam angle range, from an ultra-narrow 8° to a wide up to 80°, all while maintaining high efficiency across its beam spread. This combination ensures precise projection cutting with barn doors and produces crisp shadows without color aberrations.

The series comes with an upgraded Spektra OS, featuring a larger display and four backlit pushable encoder knobs. This provides users with an elevated level of precision and ease in color control. Explore expanded color control modes, advanced color filter emulation, and interactive real-time user color calibration. Selectable color spaces, Tungsten Emulation, and customizable PWM settings empower users to achieve their desired lighting output with exceptional accuracy and simplicity.

EclFresnel CT+ fixtures can also be operated using external power sources and batteries through the onboard 48v DC power input. The IP versions come equipped with a CRMX Timo Two wireless card onboard, ensuring seamless wireless control.

The adjustable yoke enhances weight balance and allows for height customization, tailoring the fixtures to specific applications. For further beam control, the optional Pole Operated Yoke with XY&Zoom expands flexibility in studio applications.F or those seeking even greater beam control, our optional PC lens kit replaces the Fresnel with a Plano Convex optical unit.

From dry hires to TV and film sets, grand theaters to intimate stages, the EclFresnel CT+ series redefines the standard in lighting technology, offering unparalleled performance and versatility.

Prolights is pleased to present Astra Hybrid330, a hybrid moving head with an LED source designed for everyday use. Compact, powerful, and silent, it can be used in any application, such as live, corporate, theater, or television events, creating a standard device for any type of event or project with a single luminaire.

Astra Hybrid330 is equipped with a 330W LED source, combined with a large 140mm optical group and a zoom ranging from 3,5° to 52°, allowing high performance even as a high-intensity long-throw beam light. This unique combination enables an intense beam and homogenous spotlight, providing an exceptional lumen output and surpassing the evenness offered by arc-discharge fixture in its category. Compared to traditional discharge beam light with arc lamps, its beam is fat and consistent, with smooth projection when used as a spotlight.

Astra Hybrid330 offers a rich set of features and effects, including the CMY mixing system, 3 color wheels, 2 gobos wheels, 1 animation wheel, 2 overlapping prisms (one linear and one circular), and a linear frost for applications such as wash light or soft-edge on gobos.

The dimensions and low weight of only 21Kg allow Astra Hybrid to be installed on both large and small stages for flexible use, while its silent operation and linearity of dimming, compared to older generation lamp projectors, make it possible installation also in theater applications and television studios.


Meet the NEW Mosaico FX100!

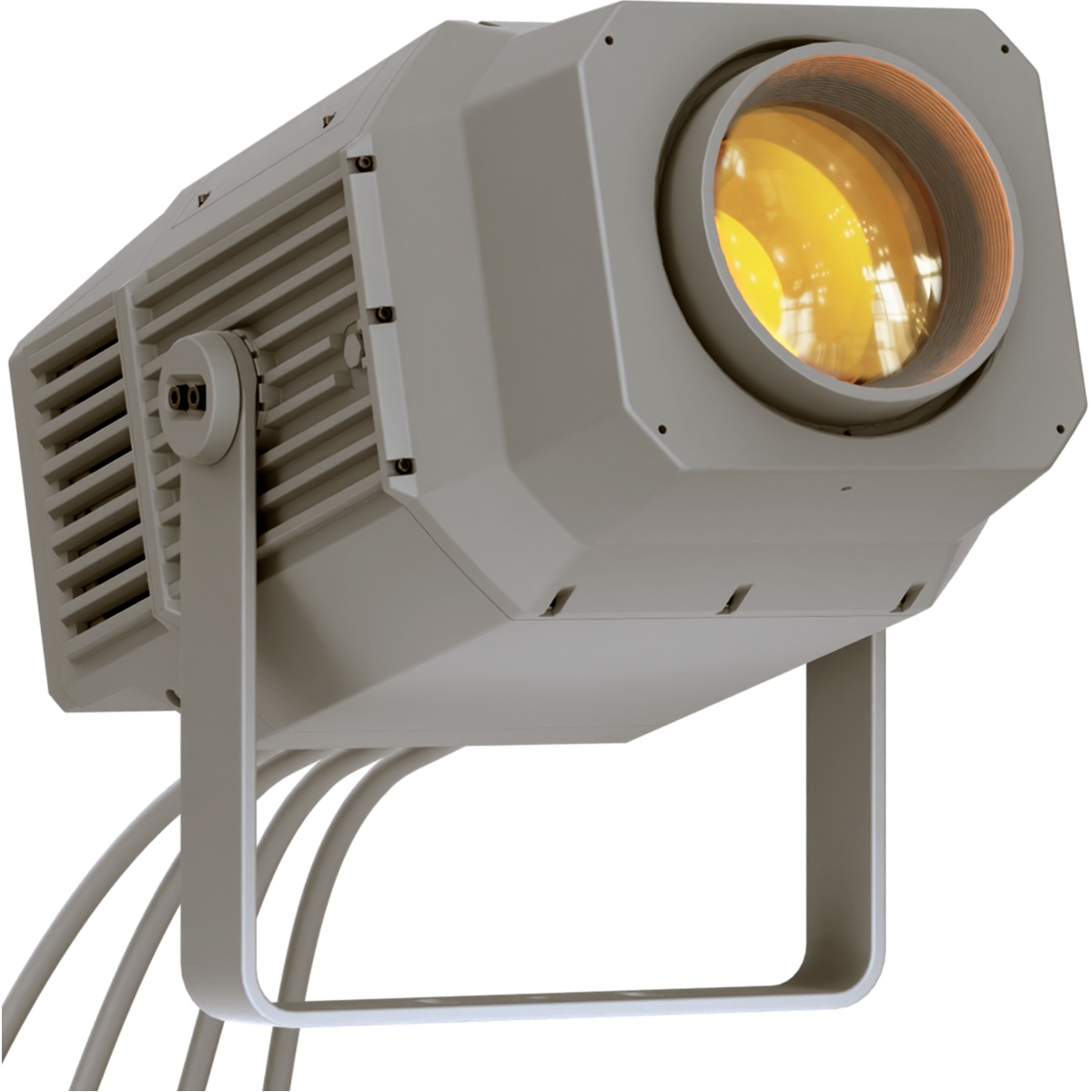

We are pleased to present Mosaico FX100, a series of exterior lighting fixtures designed to project animations and images in permanent outdoor installs, extremely easy to use.

Mosaico FX100 is an 100W white source LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.

Mosaico FX100FC is an 100W RGBW Full Color LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.

Mosaico FX100 and FX100FC are supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, blowing fire or northern lights effects. The kit contains also one indeaxable gobo holder and a colour holder both with magnetic attachment.

Mosaico FX100 and FX100FC are compatible with a wide range of high definition optics, each optimized for the required application (animation or image projection): 15°, 30°, 50° and 70°.

Mosaico FX100 and FX100FC can be controlled via DMX, both wired and wireless and also easily operated locally through the simplified stand alone operations.
