NLS Lighting

The iconic design blends and enhances any contemporary architectural outdoor setting with complete set of product offering for Area, Site & Roadway, Decorative, Garage, Canopy, Ceiling, Wall Mount, Floodlights, and Bollards applications. The Organix product family with multiple sizes and orientations give flexibility to illuminate any exterior space.

• Silicone Micro Optics—50% more heat resistant than acrylic to UV and heat exposure. Do not brittle, crack, or yellow
• Dark Sky Compliant—Recessed LEDs. Full cut-off design. Specify HSS for applications with stringent property cutoff criteria
• Uniform light distribution—using fewest number of fixture heads and poles while exceeding required IES foot-candles. Less material, less energy, less cost
• Heavy Duty Die Cast Aluminum
• Digital Dimming Driver (120-480V)—best voltage variance resistance
• High Surge Protection 20KVA

Check out the new NLS Lighting, LLC Radian Impact Bollard! With a robust TG Core-In Protection System, it achieves an impressive S10 impact rating. It seamlessly complements any environment, from corporate spaces to hospitals and airports. The Radian Impact Bollard is controls-agnostic for easy integration. It's eco-friendly, reduces energy consumption, and lasts over 100,000 hours. Choose a Buy American option for sourcing preferences.

Specification features

• ASTM F3016 full scale crash tested at an accredited test center; the 6” version offers a S10 impact rating (rated to stop a 5,000 lb vehicle up to 10 mph), while the 8” version comes with an impressive S20 impact rating (rated to stop a 5,000 lb vehicle up to 20 mph)
• Blends beautifully into any storefront or pathway environment where protection from traffic intrusion is required: Corporate, Schools, Hospitals, Airports, Hotels, Municipalities, and Industrial Settings
• A variety of optic Type distributions for any application at 3000K, 4000K, and 5000K CCT multichip high power 70 CRI LEDs with Unlit option available
• Surge Protection—20kA Surge Protection (120V – 480V), 0–10V programmable, dimming LED drivers
• Buy American option compliant
• 8 standard finishes, marine grade finish and custom finish available
• Controls agnostic, compatible with most control systems and sensors
• Aluminum Housing with flushed, recessed and no visible hardware
• Environmentally Friendly Product which reduces energy consumption, L70 > 100,000 hours
• Cost competitive, supply chain friendly, and short shipping Lead Times in days & weeks

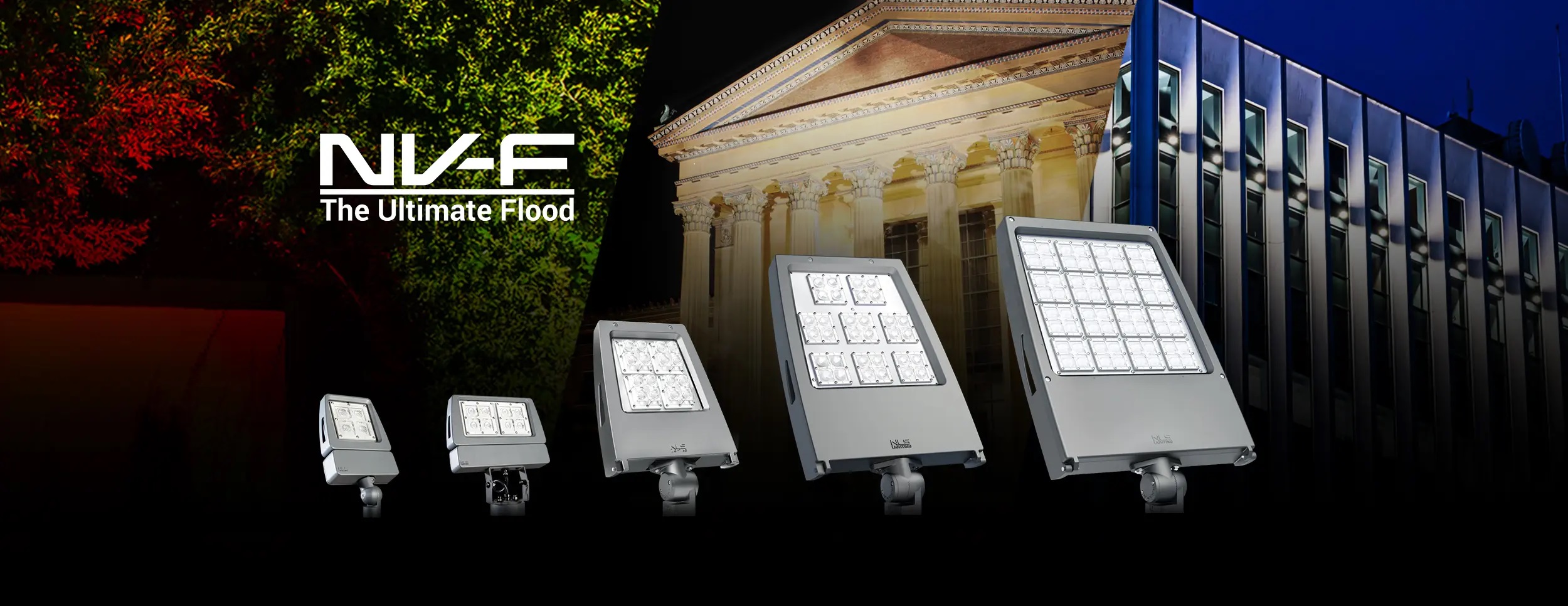

Introducing the powerhouse of flood lights, NLS Lighting, LLC's newest addition to the NLS Flood Family: NV-F5! Designed for large flood and area applications, this sleek and robust flood light is perfect for building façades, wall washes, commercial spaces, and more. With up to 103,000 lumens of power and 5 different color temperatures ranging from Very Warm to Cool White, your project will truly shine. Want to add a vibrant touch? Choose from 4 color options for a captivating atmosphere. Plus, the NV-F5 is Buy America, easy to install, and ships fast.

• Ideal for Large Flood and Area Applications: Building Facades, Wall Washes, Up Lighting, , Commercial, Security Lighting, Roadways, and Airports Aprons
• Sleek Robust Adaptable Design of the NV-F5 (Weight: 44 lbs.) Compliments the Entire Flood Family: NV-F1(up to 6,000 Lumens), NV-F2 (up to 10,000 Lumens), NV-F3 (up to 25,000 Lumens) , and NV-F4 (up to 51,000 Lumens)
• Distributions Options: 15° Very Narrow, 30° Narrow Beam, 55° Medium Beam, 85° Wide Beam, NEMA 7H x 5V, NEMA 7H x 6V, Forward Throw T4, and Symmetrical T5
• 256L LED Configurations, 537 to 805 Watts
• 2700K, 3000K, 3500K, 4000K, 5000K CCT Multichip High Power 70 & 80 CRI LEDs, Static Amber, Red, Green, Blue LEDs as Options
• IP66 Rated Against Dust & Water Ingress
• IK10 Rated for Impact Protection, Tamper Proof and Vandal Resistant Options Available
• Mountings available have a 1.5G to 3G Vibration Rating: Knuckle Mount, Trunnion Mount, and Wall Mount
• 20kA Surge Protection (120V – 480V), 0 – 10V Programmable, Dimming LED Drivers
• LED Drivers Ambient Temp. Min (°C) is -40°C and Ambient Temp. Max (°C) ranges to 55°C
• Silicone Micro Optics providing 96% Clarity and Heat Resistant up to 150°C
• 9 Standard Finishes, Custom and Marine Grade Finish Available
• Controls Agnostic, Compatible with Most Control Systems and Sensors
• Environmentally Friendly Product Which Reduces Energy Consumption, L70 > 100,000 hours
• Buy American Option Available, Easy to Install Mounting
• Cost Competitive and Short Shipping Lead Times in Days & Weeks
