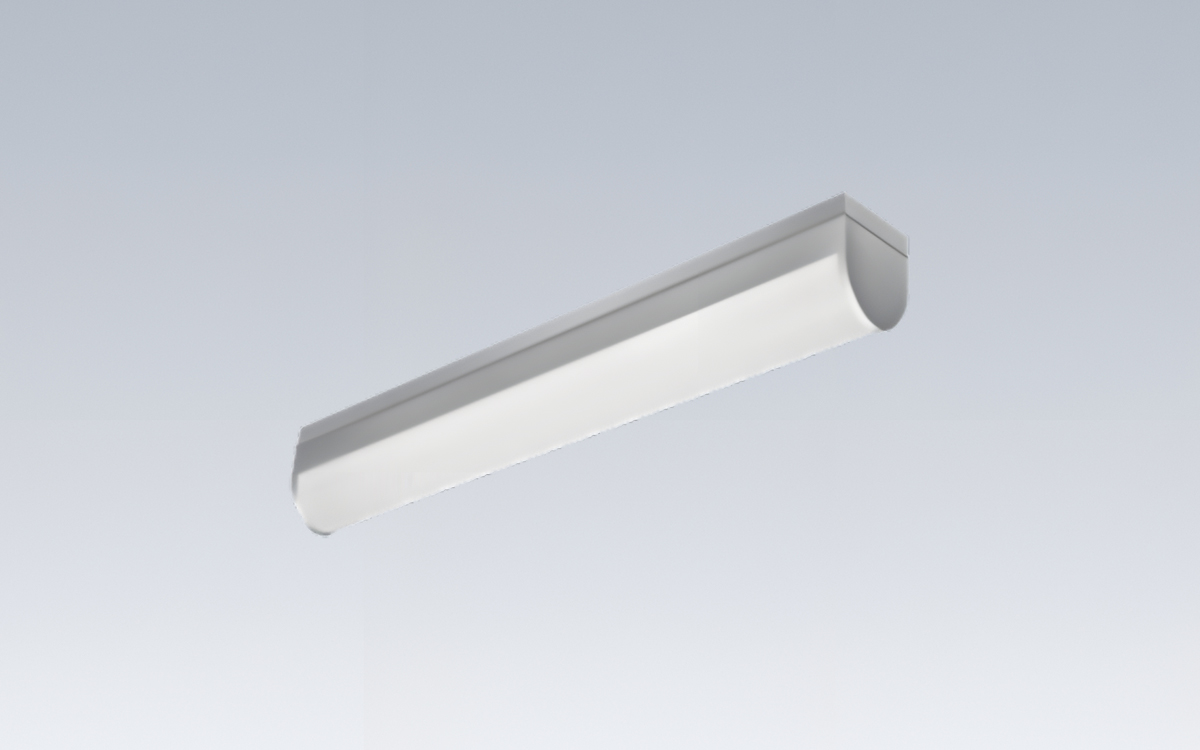

The 5-inch wide linear wraparound LED light is a durable and versatile fixture designed for both ceiling and wall surface mounting. It is available in multiple lengths—24, 36, and 48 inches—allowing flexibility in different architectural and functional layouts. The luminaire’s design features a hinged door, providing easy access for maintenance and service. Fully compatible with the SmartSense™ Control System, it enables automated lighting control and supports energy-conscious operation through integrated sensors and adaptive dimming capabilities.
Ideal for demanding environments, this fixture serves a range of applications including parking garages, transportation platforms, and underpasses or tunnels. Engineered for rugged reliability, it features a one-piece, seam-welded 16-gauge type 304 stainless steel housing combined with a continuous seam-welded 18-gauge stainless steel baseplate that mounts flush to the ceiling or wall. A continuous 1-inch open-leaf stainless steel hinge secures the housing to the baseplate, ensuring structural integrity and straightforward access during maintenance. Each end cap includes a 0.875-inch punched and flattened knockout for convenient conduit entry.
Lighting performance options include color temperatures of 3500K, 4000K, and 5000K with a color rendering index (CRI) of 82, providing consistent and accurate color output across installations. The fixture operates on 120-277VAC, 50/60Hz electrical input and is equipped with a serviceable, high power factor electronic constant-current driver (<20% THD, >0.95 PF). Standard 0-10V dimming is available with a smooth 10–100% range and a maximum driver source current of 500 μA, offering flexibility in lighting control and ambiance adjustment.
For enhanced durability, the fixture uses Torx® Head stainless steel fasteners as standard, with options for center-pin reject Allen Head (AH) or Phillips Head (PH) fasteners to accommodate various security requirements. It is finished in either a brushed stainless steel (#4B) or a white TGIC polyester powder coat, featuring a five-stage pre-treatment process and a salt spray test rating of 1,000 hours, ensuring corrosion resistance and longevity. The finish also provides a high reflectance of 92%, optimizing light output efficiency.
The lens is fabricated from UV-stabilized polycarbonate in either clear prismatic or pearlescent finishes. It features a smooth exterior and a linear prismatic interior that ensures balanced light diffusion and glare control. The lens, with a nominal thickness of 0.125 inch, is sealed to the housing using a linear silicone gasket for moisture and dust protection. Lens retention is achieved through stainless steel fasteners that secure it within integrated channels.
This luminaire is designed for durability and performance in harsh environments, with UL and CUL listings for wet locations when installed on covered ceilings or horizontal walls. It is UL certified to IP65 standards per IEC 60598, providing reliable protection against dust and water ingress. Additionally, the fixture has been tested to an IK10 impact protection rating under IEC 60068-2-75:1997-08, demonstrating its capability to withstand heavy mechanical impacts.
For ease of installation, a four-point mounting system and polycarbonate lens are required to qualify for the Peace of Mind Guarantee®. Fixtures may also be ordered without pre-drilled wiring and mounting holes through the Field Drilled Installation Holes (FDIH) option for maximum installation flexibility. Internally, the fixture employs shock-resistant fluorescent sockets with internal locking collars that ensure positive lamp retention, preventing accidental dislodgement in vibration-prone environments.
Combining robust stainless steel construction, versatile mounting configurations, SmartSense™ compatibility, and IP65-rated performance, this 5-inch linear wraparound LED light delivers long-lasting dependability and precision lighting control in even the most challenging architectural and transit environments.
