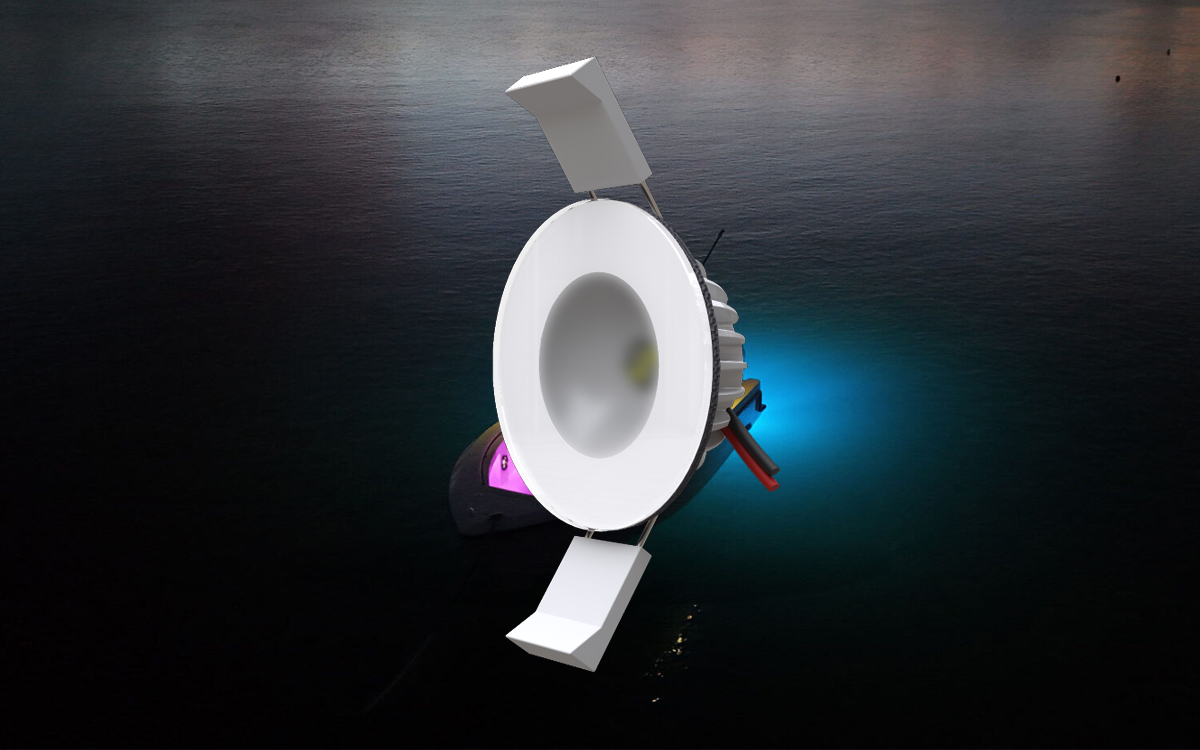

The Lumishore DL55 ECLIPSE Downlights are designed to deliver high-performance, energy-efficient illumination for both indoor and outdoor overhead spaces aboard marine vessels. Whether you're lighting cabins, cockpits, hardtops, or walkways, the DL55 ECLIPSE series offers a sleek, low-profile lighting solution that blends aesthetics with durability.
Built for demanding marine environments, these downlights feature a fully water-sealed construction with an IP67 ingress protection rating, ensuring resilience against water, salt, and outdoor exposure. With a slim installation depth of just 21mm (0.83”), the DL55 is ideal for confined spaces. The simple two-wire electrical connection streamlines setup, making installation quick and hassle-free.
The DL55 is available in several color configurations to meet diverse lighting needs: single-color white (5000K) or blue, dual-color blue and white, or full RGBW capability with options for red, green, and blue combined with white light. Users can choose between black or white bezel finishes to suit their vessel’s design theme.
Each fixture houses high-intensity 3W LEDs and supports control via a basic on/off switch or the optional ECLIPSE Command Center for more advanced functionality. Designed for 12V DC systems, the light operates within a voltage range of 10–15V DC and draws a maximum current of 0.4A.
Mechanically, the DL55 installs securely using stainless steel spring clips, with optional marine adhesive for added stability. The fixture requires a 50.8mm (2.0") cutout and has a bezel diameter of 64.0mm (2.519") with a minimal installed profile height of just 3.00mm (0.118").
Elegant, robust, and easy to install, Lumishore’s DL55 ECLIPSE Downlights are a reliable choice for high-quality, compact marine lighting.
