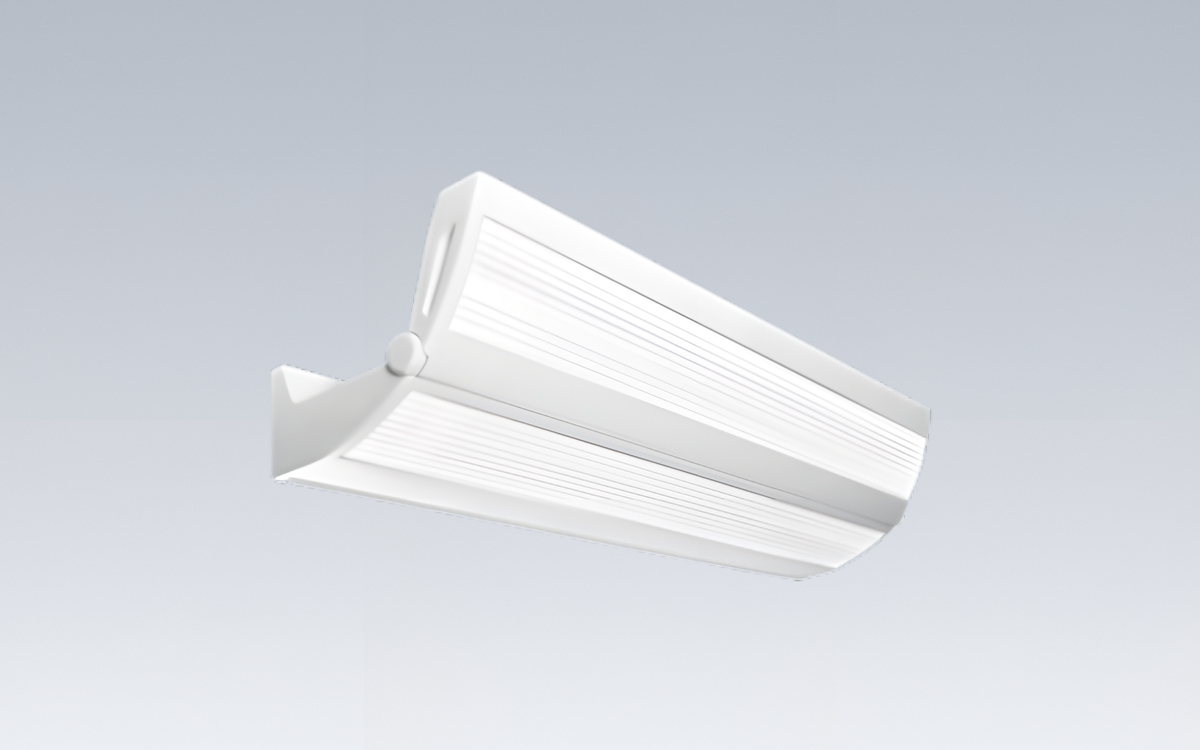

The wall-mounted multi-function luminaire is available in 36" and 48" lengths and offers versatile lighting capabilities tailored for patient room applications. It provides focused reading light through a down-light function, gentle indirect ambient light via an up-light function, or, by flipping the luminaire open, both functions can operate simultaneously to serve as high-output examination lighting. The luminaire is constructed with an extruded aluminum body and die-cast aluminum end caps, ensuring durability and stability while maintaining a clean, modern aesthetic. Standard antimicrobial finish on all exposed surfaces supports infection control and maintains hygiene in patient environments.
Electrically, the luminaire utilizes high-output, high-CRI LED sources, available in 3000K, 3500K, and 4000K color temperatures with a color rendering index of 82. The fixture operates on 120–277VAC or 347VAC at 50/60Hz, supported by a serviceable, high-power-factor electronic constant-current driver with less than 20% total harmonic distortion and a power factor greater than 0.95. Standard 0–10V dimming is included with a full 1–100% range and dim-to-dark capabilities (available 1–100% only with 347V input), with a maximum source current of 330μA, enabling precise control of light output for reading, ambient, or examination tasks.
The housing is crafted from marine-grade aluminum with die-cast end caps and attaches securely to a baseplate for wiring via an integral swing hook. After wiring, the housing swings closed and is secured with countersunk fasteners, providing both convenience during installation and a clean, finished appearance. The luminaire is finished with a white TGIC polyester powder coat applied over a five-stage pre-treatment, passing a 1,000-hour salt spray test, and the matte white antimicrobial coating on all exposed surfaces further enhances infection control.
The lens system consists of a UV-stabilized, high-impact-resistant extruded linear DR/acrylic blend (50/50), with a smooth exterior and fluted interior to optimize light distribution. The nominal lens thickness of .125" is securely held within the body channels, ensuring long-term stability and protection. The luminaire is UL and CUL listed for damp locations and has been certified by an independent laboratory to meet OSHPD seismic loading standards. It is pre-approved by OSHPD for installation in California healthcare facilities, ensuring compliance with rigorous regional safety and seismic regulations.
