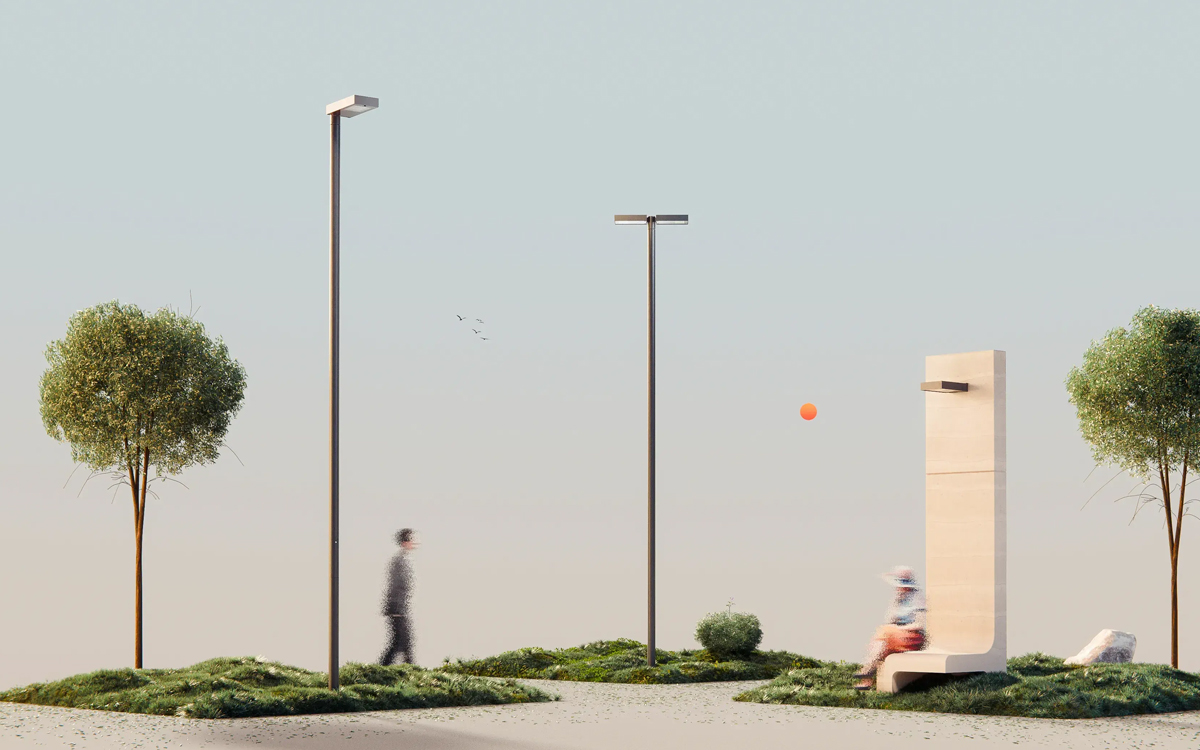

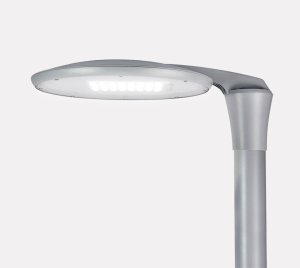

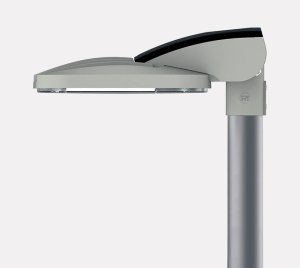

The FO product family is a highly versatile lighting system that pairs a timeless design with advanced functionality, making it suitable for a wide array of outdoor applications. Available in both wall-mounted and pole-mounted configurations, the luminaire offers adaptable performance through a variety of light distributions and lens options. With multiple configurations, the FO luminaire proves to be an ideal solution across many environments, offering flexibility without sacrificing aesthetic appeal or efficiency.
Designed to be both cost-effective and powerful, the FO system comes in two housing sizes—420 mm and 600 mm—and can be installed on walls or poles. The luminaire’s streamlined housing maintains a clean appearance while prioritizing performance and long-term durability. Its solid construction features a low copper content (≤ 0.08%) and the option for enhanced corrosion protection through ewoECP, making it ideal for demanding environments.
The FO600 version can accommodate up to five LED modules, delivering a wide spectrum of luminous flux options and customizable light distributions. Additional factory-installed features such as the ewoLightLayers RBL (backlight shield) and AGR (anti-glare protection) further enhance adaptability and user comfort. These features make the FO system particularly effective in creating tailored lighting solutions for diverse urban and architectural settings.
The system is divided into two main variants: the A–Series and the T–Series. The A–Series supports current feeds from 200 mA to 650 mA (with a FO600 max of 550 mA) and delivers a maximum luminous flux of 15,900 lm. It includes an electronic operating device with interfaces for DALI, 1–10 V control, stand-alone programming, or Line Switch operation. Available color temperatures range from 2,200 K to 5,700 K with various CRI levels, and options such as Constant Lumen Output (CLO), emergency power supply (AC/DC), and smart lighting controls are also offered.
The T–Series operates with current feeds up to 225 mA, achieving a maximum luminous flux of 4,600 lm. It includes a DALI T8 interface and supports Tunable White light from 2,200 K to 6,500 K, with standard CRI ≥ 80 and optional CRI ≥ 90 upon request.
Overall, the FO product family delivers unmatched configurability, with the A–Series alone offering nearly 1.8 billion lens combinations. Technologies like ewoLightTile and ewoLightLayers allow light output to be finely tuned for specific project needs. Furthermore, optional integration of smart lighting control modules and compatibility with external Zhaga interfaces ensure that the FO system can seamlessly fit into modern smart city infrastructures.
