ewo Lighting

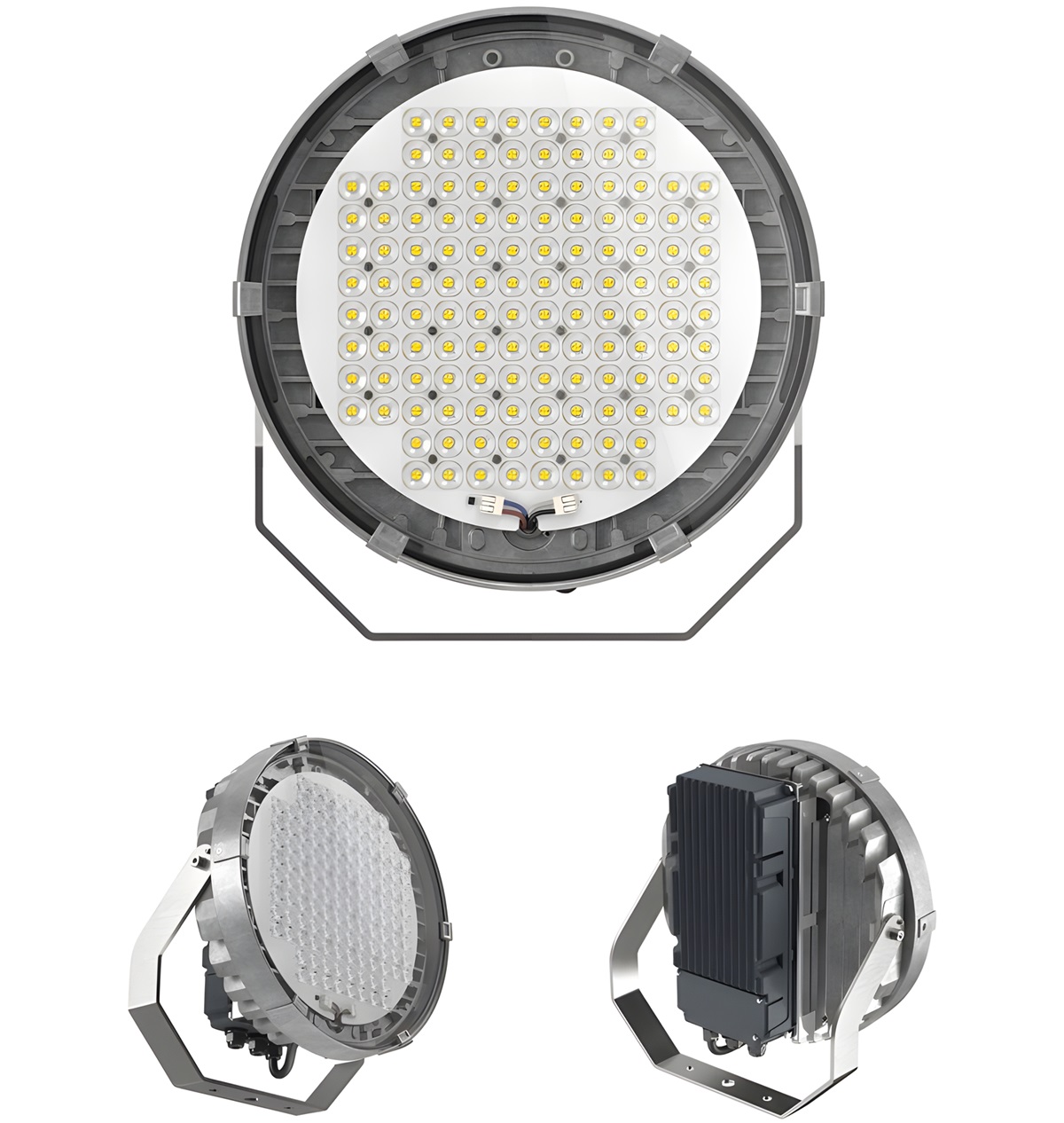

The R–System floodlight family continues to grow! A round version of the R1 floodlight is now expanding our product portfolio for illuminating large areas. The floodlight is ideal for sports halls and hangars, enabling us to meet even the most complex customer requirements.

• Compatible with our A–Series lenses
• Available with PC lenses
• Various light distributions for large-area, high bay or street lighting
• Current feed: up to 1,100 mA (from -40° C to +55° C)
• Max. luminous flux: 60,600 lm
• Smart Lighting: control modules for different communication standards available upon request
• Ball-proof
• Driver with DALI or DMX-RDM protocol
• Color temperatures: 3,000 K, 4,000 K, 5,700 K
• Efficiency of up to 160 lm/W

The C210 (Slice & Integral) version of the award-winning Chameleon spotlight is now also available as a GOBO projector. Project flawless images, logos, texts or photos in all imaginable colors onto even distant surfaces – thanks to an imaging optical system.

• High-efficiency condensor unit
• Image size: Ø40 mm
• Objective lens: Ø85 mm, f=77 mm, f/1.4, 30° beam
• Broad-band anti-reflective coated
• Optimized for highest possible optical efficiency
• Total length: 285 mm
• External driver
• Max. power: 50 W
• Total system flux: 4,300 lm
• Total system efficacy: 85 lm/W
• Photometric data available on request

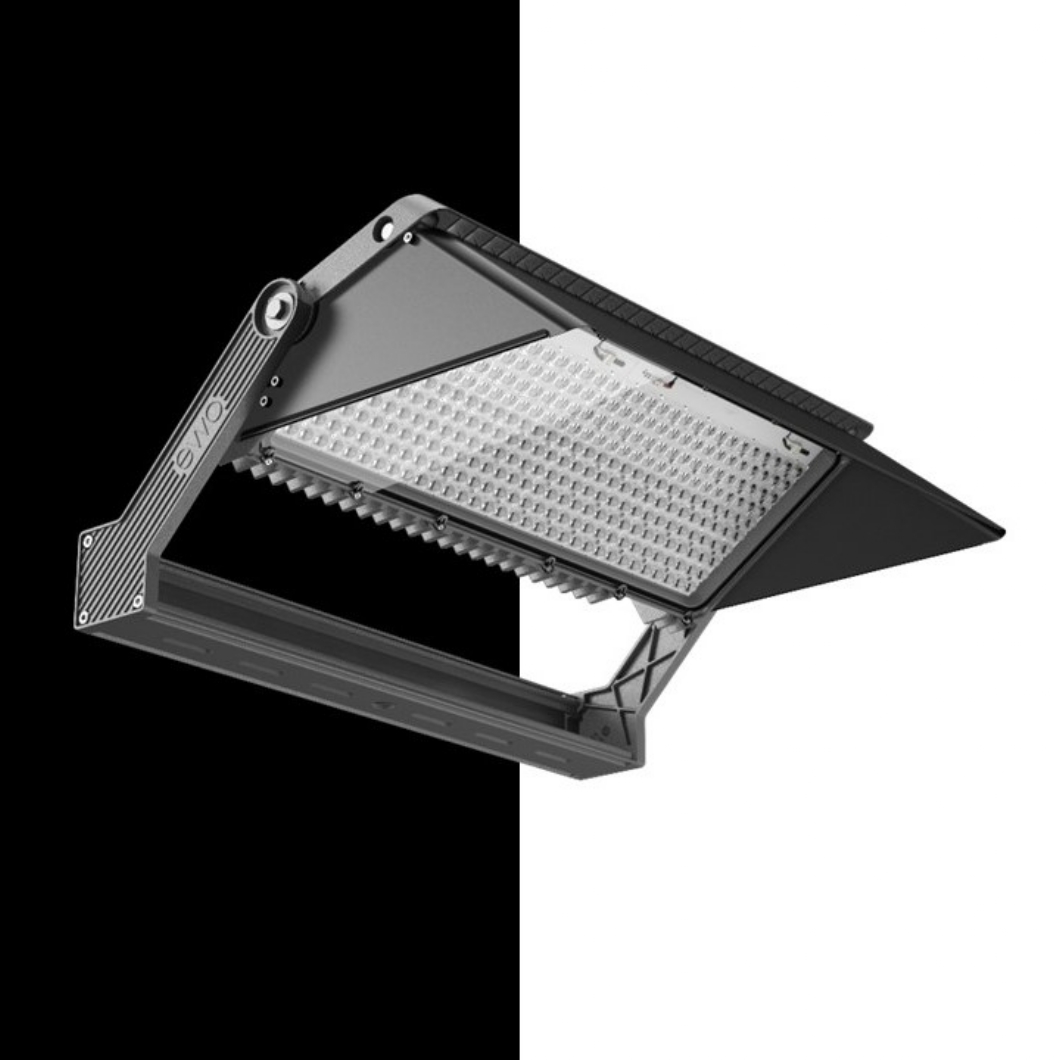

ewo is launching a new sports lighting floodlight! Revolutionary high-power floodlight that sets new standards in sports lighting. With optimized optics, lightweight design, and precise illumination, RIVAL enhances the wellbeing of athletes and reduces costs with up to 20% fewer fixtures required. What sets RIVAL apart is its unique horizontal design, eliminating light spillage into the sky and surrounding areas, while delivering exceptional lighting quality on the pitch.

RIVAL lives up to its name by setting new standards in sports lighting. With its specially developed lighting technology, RIVAL prevents light spillage into the sky and surrounding areas, while delivering exceptionally uniform and efficient illumination of the pitch.
