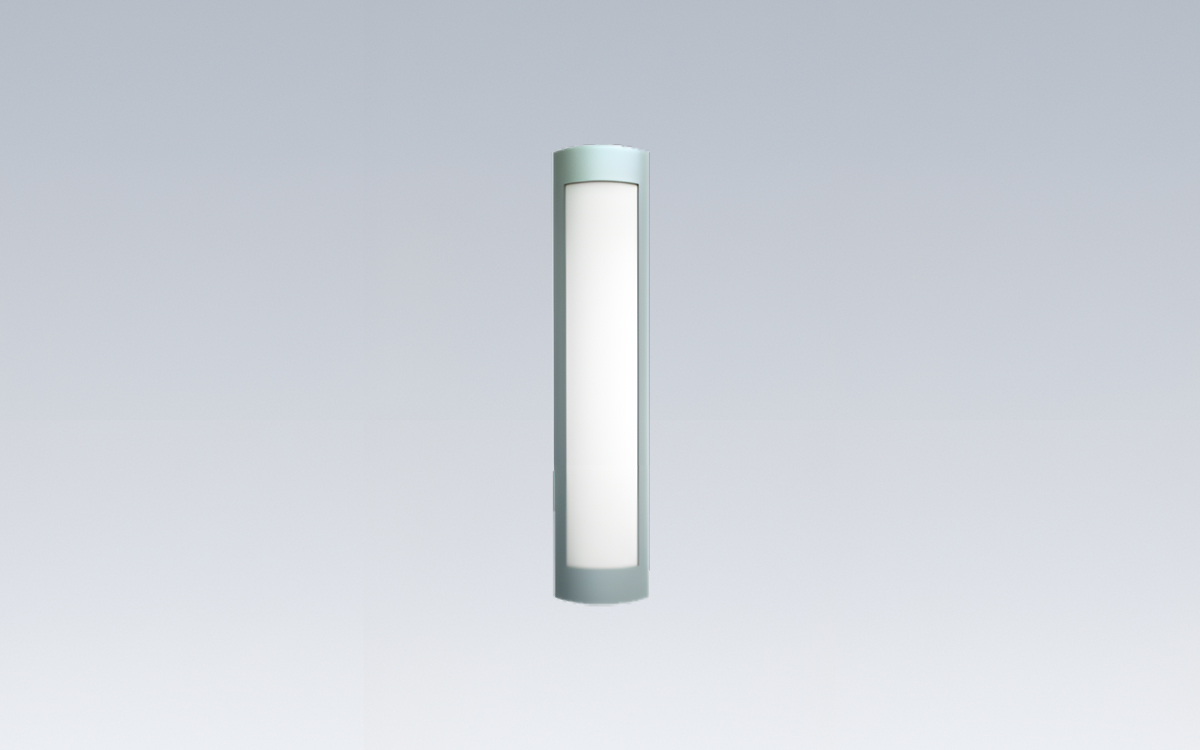

The architectural LED wall sconce for high abuse environments combines refined aesthetics with exceptional strength and durability, making it an ideal lighting solution for demanding interior and exterior applications. With an 8-inch width and 38-inch height, this surface-mounted luminaire delivers a visually balanced vertical form that complements both architectural facades and interior corridors. Constructed from marine-grade extruded aluminum with die-cast aluminum end caps, the housing is engineered for longevity in environments where impact resistance, corrosion protection, and weather sealing are essential. The luminaire is finished with a TGIC polyester powder coat applied through a five-stage pretreatment process and tested to withstand 1,000 hours of salt spray exposure, ensuring long-term surface integrity and color retention.
Designed for versatility, this LED wall sconce performs exceptionally well in locations such as parking garages, parks and recreation centers, multifamily housing, cafeterias, and walkways. It is equally suitable for correctional washrooms, public restrooms, patient rooms, and nursing stations where durability and safety are priorities. Additional suitable settings include schools and universities, transportation platforms, foyers, lobbies, isolation areas, corridors, exteriors, and entryways. Its robust, sealed design allows consistent operation and aesthetic appeal in both wet and damp environments, making it a reliable fixture choice for public, institutional, and healthcare facilities.
The housing design incorporates precision engineering for structural integrity and long-term protection. Six stainless steel Torx® fasteners with center pins secure the assembly, providing tamper resistance while maintaining accessibility for maintenance. All internal brackets and fasteners are non-corrosive to preserve structural integrity in humid or exterior environments. A Surface Conduit Adapter (SCA) accessory is available, constructed from aluminum with an integral junction box and trim frame, color-matched to the fixture’s lens frame for seamless appearance. Water-tight conduit fittings are to be supplied by others, ensuring the installation meets specific site requirements.
The lighting system delivers dependable optical performance through a combination of high-quality lenses and reflectors. The inner lens is a UV-stabilized, extruded frost lens made from 100% DR acrylic with a nominal thickness of 0.100 inches, providing high impact resistance and soft light diffusion. It is securely positioned within the lens frame to maintain a tight seal against moisture and debris. The outer lens is thermoformed from UV-stabilized, impact-resistant polycarbonate and is available in frost or clear acrylic finishes, each with a nominal thickness of 0.125 inches. This dual-lens construction ensures uniform light distribution while maintaining resistance to vandalism and environmental wear.
The reflector system is constructed from die-formed marine-grade aluminum, delivering 92% reflectivity to maximize lumen output and visual comfort. This full reflector and wire cover assembly ensures optimal light redirection while protecting internal components. The fixture’s electrical system supports 120–277VAC, 50/60Hz operation, using a serviceable high power factor electronic constant-current driver with less than 20% total harmonic distortion and a power factor greater than 0.95. Standard 0–10V dimming is included, providing smooth dimming from 1% to 100%, with a maximum driver source current of 200 μA. Available color temperatures include 3500K, 4000K, and 5000K, each delivering consistent light quality with an 82 CRI rating. Fluorescent options may be available upon request from the manufacturer.
Certified and tested to meet stringent safety and performance standards, this wall sconce is UL and CUL listed for wet location use in vertical wall mount applications and carries an IP64 certification per IEC 60598 standards. The fixture meets ADA compliance requirements, except when installed with the SCA accessory. Photometric testing is conducted in accordance with the IESNA LM-79-08 standard by an ILAC/ISO 17025 accredited laboratory, ensuring verified performance and accuracy in published data. The luminaire also meets an IK10 impact protection rating per IEC 60068-2-75:1997-08, confirming its exceptional resistance to physical abuse.
With a Peace of Mind Guarantee® ensuring durability against breakage and a patented design protected under U.S. Patent No. D610,294, this architectural LED wall sconce stands as a premier choice for architects and facility managers seeking an elegant yet rugged fixture solution. Its combination of robust construction, reliable electrical performance, and refined aesthetic appeal makes it perfectly suited for public infrastructure, institutional environments, and architectural projects that demand both visual sophistication and superior endurance.
