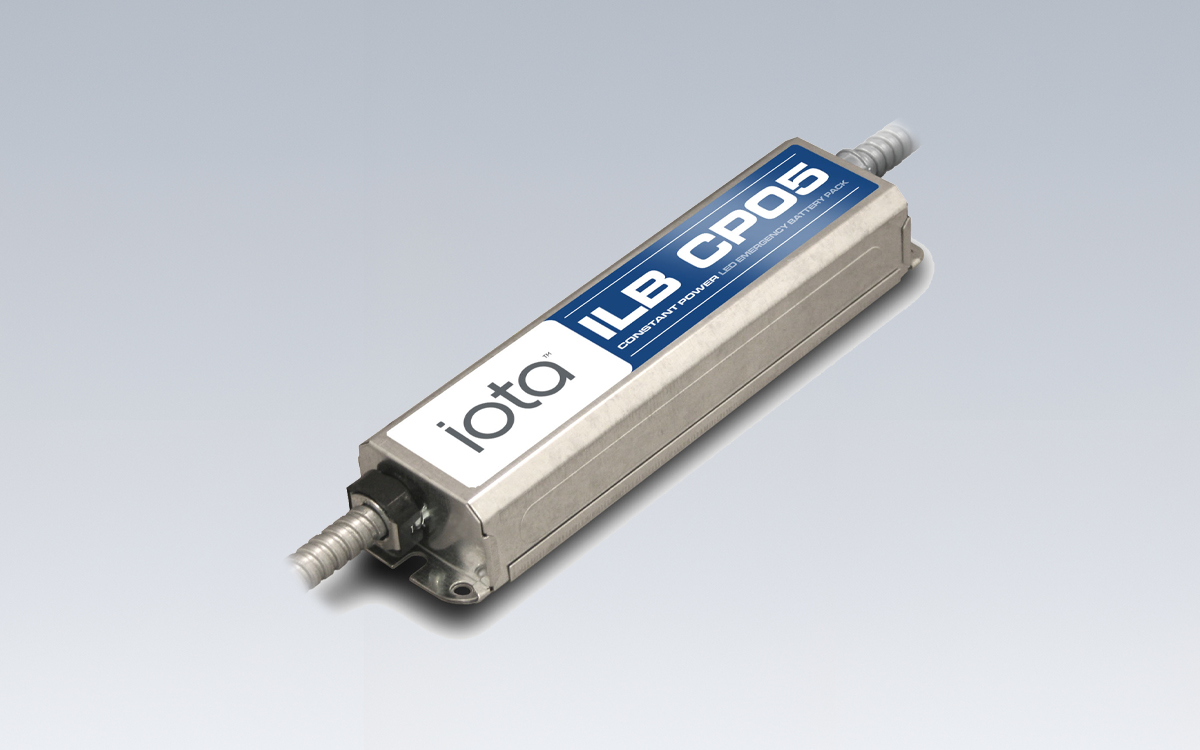

The IOTA ILB CP05 is a UL Listed LED emergency driver designed to enable a single LED fixture to operate in both normal and emergency modes. During a power outage, the unit automatically switches to emergency operation, providing continuous illumination for up to 90 minutes. The ILB CP05 integrates a battery, charger, and converter circuit within a single compact galvanized steel housing, offering a streamlined solution adaptable to different fixture configurations. Its Constant Power design ensures a steady 5-watt output to the connected LED array, maintaining consistent brightness throughout the full emergency runtime, even as system voltage decreases.
Engineered for versatility, the ILB CP05 delivers a nominal output of 10–60 VDC with automatic voltage sensing, allowing it to operate a variety of LED fixtures such as downlights, troffers, and strip lights. This flexibility reduces the need for multiple emergency driver models across different fixture types. The driver operates on a universal 120–277 VAC input at 50/60 Hz, with a maximum input power of 2.7 watts and a power factor of 0.9 or greater. The unit is fully compliant with Class 2 standards and maintains a total harmonic distortion (THD) of less than 20%.
Built for reliability, the ILB CP05 uses a long-life, high-temperature Nickel-Cadmium (Ni-Cd) battery with a 24-hour recharge time and an expected lifespan of 7 to 10 years. The battery is recyclable and rated for dependable operation in demanding conditions, with a temperature range of 0°C to 55°C. The driver is available in multiple mounting configurations to accommodate different fixture installations, with unit weights ranging from 2.5 to 3.0 pounds depending on the model.
The ILB CP05 meets or exceeds all applicable National Electric Code (NEC), International Building Code (IBC), and Life Safety Code emergency lighting standards. It carries multiple certifications and listings, including UL 924, UL 1310, CSA C22.2 No. 141, and FTBV classification, making it suitable for both factory and field installation in the United States and Canada. The unit is rated for use in plenum spaces, damp locations, recessed Type IC fixtures, and enclosed or gasketed luminaires. It is also RoHS compliant, underscoring its environmentally conscious design.
For convenience and safety, the ILB CP05 includes a single-piece TBTS test switch and charge indicator accessory kit, supporting easy manual life safety testing. The emergency driver can be used with both switched and unswitched fixtures and features auto-sensing Class 2 output that dynamically adjusts to LED forward voltage requirements. Backed by a 5-year warranty, the IOTA ILB CP05 provides dependable emergency illumination performance with consistent light output, robust construction, and broad installation compatibility.
