IOTA Engineering

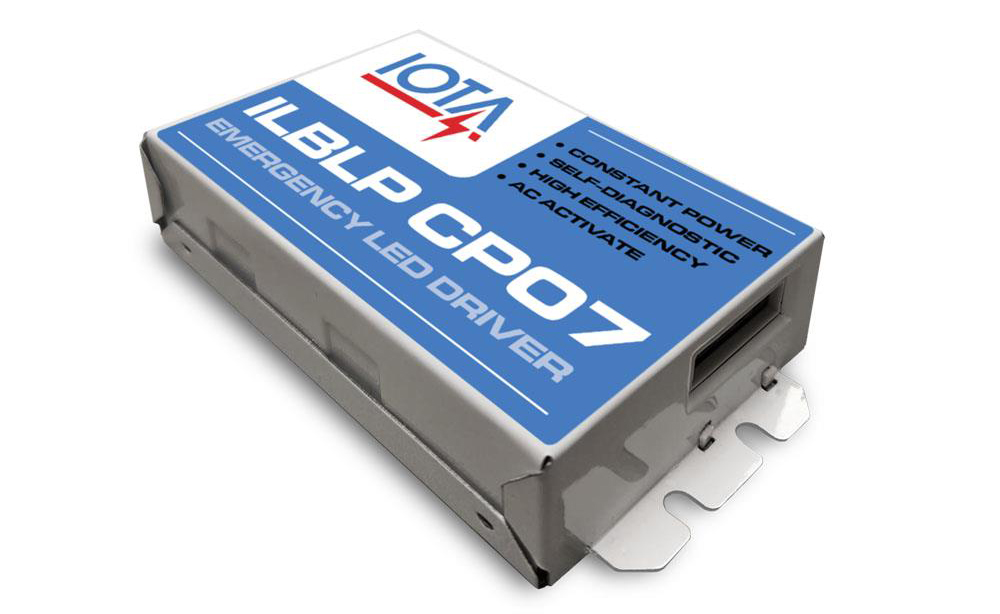

The IOTA® ILBLP CP07 Constant Power Emergency Driver establishes a new standard for small form factor emergency solutions. Using advanced lithium battery technology, the ILBLP CP07 brings the advantages of constant power emergency to the limited compartment and channel spaces of today’s compact fixture designs. The ILBLP CP07 packs specification-grade emergency performance in a minimal shallow profile enclosure.

The ILBLP CP07 HE SD from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILBLP CP07 HE SD switches power from the normal AC Driver and operates the fixture for 90 minutes in the emergency mode from the unit’s battery supply. The unit contains a battery, charger, and converter circuit in a compact form factor for integral installation in smaller fixtures. Features lithium battery technology for significantly decreased form factor and includes automatic monthly and annual self-testing features as standard.

The compact design of the ILBLP CP07 is 60% smaller than comparable nickel-cadmium options and includes the following features as standard:

• Constant Power Output for non-diminishing emergency illumination
• Automatic Monthly and Annual Self-Diagnostics
• AC Activate eliminates the need for manual battery installation after installation
• High-efficiency battery charging to help meet CA Title 20 requirements
• Stainless steel test accessory complements fixture aesthetics

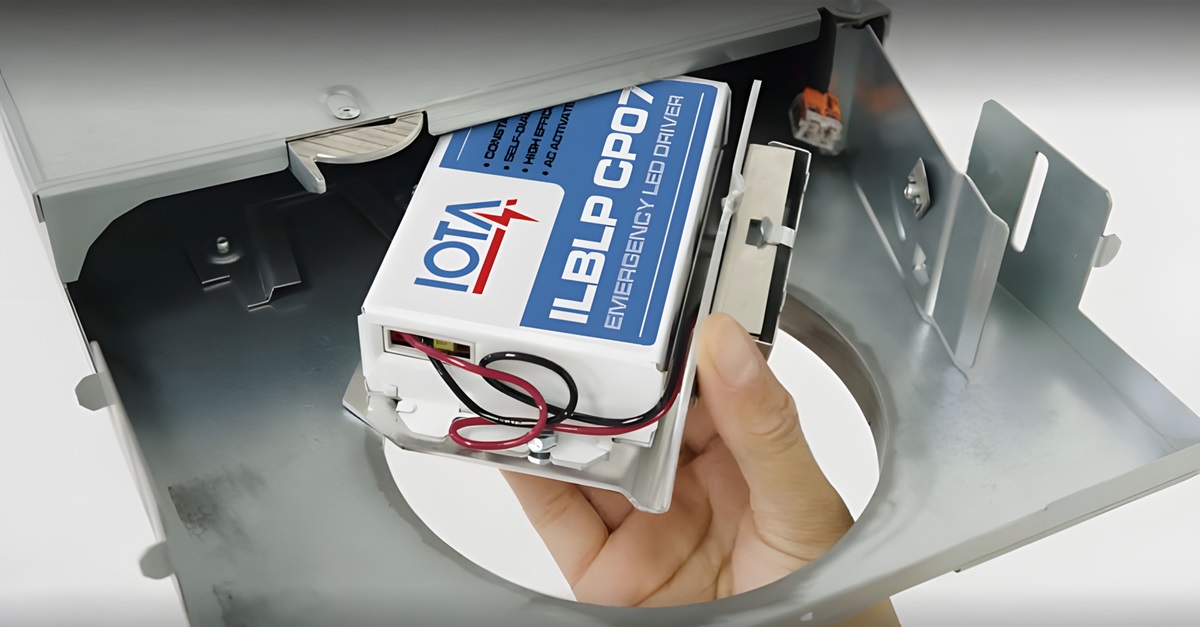

• Two mounting configurations to match installation requirements

Introducing the IOTA ILBLP CP07 (Constant Power Emergency Driver) - a groundbreaking solution for compact emergency needs! The ILBLP CP07 HE SD from IOTA is a UL Listed 7W constant power small form factor emergency driver with self-diagnostics and high-efficiency performance, allowing the same LED fixture to be used for both normal and emergency operation.

The IOTA ILBLP CP07 brings a revolutionary option to the IOTA Low Profile emergency portfolio that combines the recognized advantages of IOTA ILBLP emergency drivers in an unsurpassed size.

• The Constant Power (“CP”) design means wattage output of the emergency driver remains unchanged during operation, resulting in non-diminishing light output for the full runtime with no lost foot-candles.
• The compact design provides significantly reduced size and weight, resulting in 60% less size over comparable nickel-cadmium options.
• Monthly and annual tests are a Life Safety Code requirement for emergency lighting. The ILBLP CP07 automatically conducts these required tests and provides diagnostic codes if an issue is encountered.
• AC Activate automatically engages the battery charging circuitry with no need for a service contractor to revisit the jobsite and manually connect the emergency battery after the fixture is installed.
• Features high-efficiency (HE) battery charging to help meet CA Title 20 energy requirements and is registered in the Modernized Appliance Efficiency Database (MAEDBS.)
• Attractive single-piece stainless steel test accessory provides a discreet indicator solution to complement luminaire aesthetics.

Leveraging advanced lithium battery technology, the ILBLP CP07 brings constant power benefits to tight fixture spaces, ensuring reliable illumination in compact designs. With a compact profile that's 60% smaller than nickel-cadmium alternatives, it offers non-diminishing emergency lighting, automatic diagnostics, AC Activate for simplified battery installation, efficient battery charging, and versatile mounting options. Elevate your compact fixture designs with the power of ILBLP CP07!

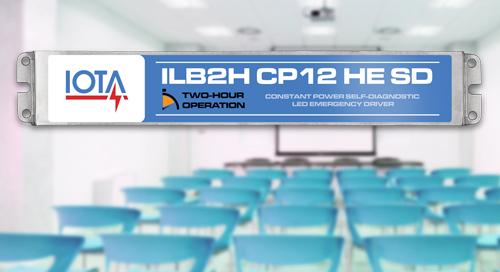

Exciting news! We are proud to introduce the IOTA ILB2H and ILBHI 2H emergency drivers, delivering 120-minute runtime for FEMA, Canada, and local codes that require extended operation beyond the standard 90-minute outlined in Life Safety Code. The new ILB2H Series provides 2-hour solutions for applications using 120-277VAC input and the ILBHI 2H Series provides options for 347-480VAC requirements.

With the addition of the ILB2H and ILBHI 2H products, IOTA now offers expanded constant power wattage options for delivering the right amount of illumination for the occupied space. Constant Power performance provides no degradation of emergency illumination, which is ideal for occupants in 'shelter in space' applications like FEMA tornado shelters.

In addition, the new ILB2H and ILBHI emergency drivers include the following:

• Lithium battery design for decreased size and weight
• Self-Diagnostics for automatic monthly and annual testing
• AC Activate for easier installation
• High-Efficiency Performance for meeting CA Title 20 energy standards

Experience an extended 120-minute runtime for enhanced safety compliance. Choose versatile solutions for 120-277VAC and 347-480VAC applications. Enjoy constant power performance with no degradation of illumination while benefiting from compact lithium batteries and automatic self-diagnostics.

We're excited to announce the launch of our new ILBLP Cold Weather Solutions for outdoor emergency egress lighting!

The ILBLP "CW" products offer three levels of emergency illumination (18 watt/ 12 watt / 7 watt) to match the requirements of your outdoor egress application. These three new emergency driver options deliver top-notch performance even in extreme cold temperatures down to -20°C, and provide three levels of emergency illumination to match your application's requirements. Plus, they come with an IP-rated indicator and test switch for added convenience.

These Cold Weather emergency drivers also feature the full advantages of IOTA's ILBLP Series Solutions, including automatic self-diagnostics, AC Activate for easy installation in sealed outdoor fixtures, and compliance with CA Title 20 energy requirements.

These latest Cold Weather emergency drivers include the performance features IOTA's ILBLP are known for:

• Self-Diagnostics - ILBLP CW products automatically conduct the code-required monthly and annual tests.
• AC Activate - no manual battery connections are required after installation, making them ideal for sealed outdoor fixtures. Learn more about AC Activate here!
• CA Title 20 - Designed to meet Title 20 energy requirements and registered in the MAEDBS (Modernized Appliance Efficiency Database).

Learn more about how these solutions can enhance the emergency capabilities of your outdoor fixtures today!

Introducing IOTA® ILBLP Cold Weather Solutions
