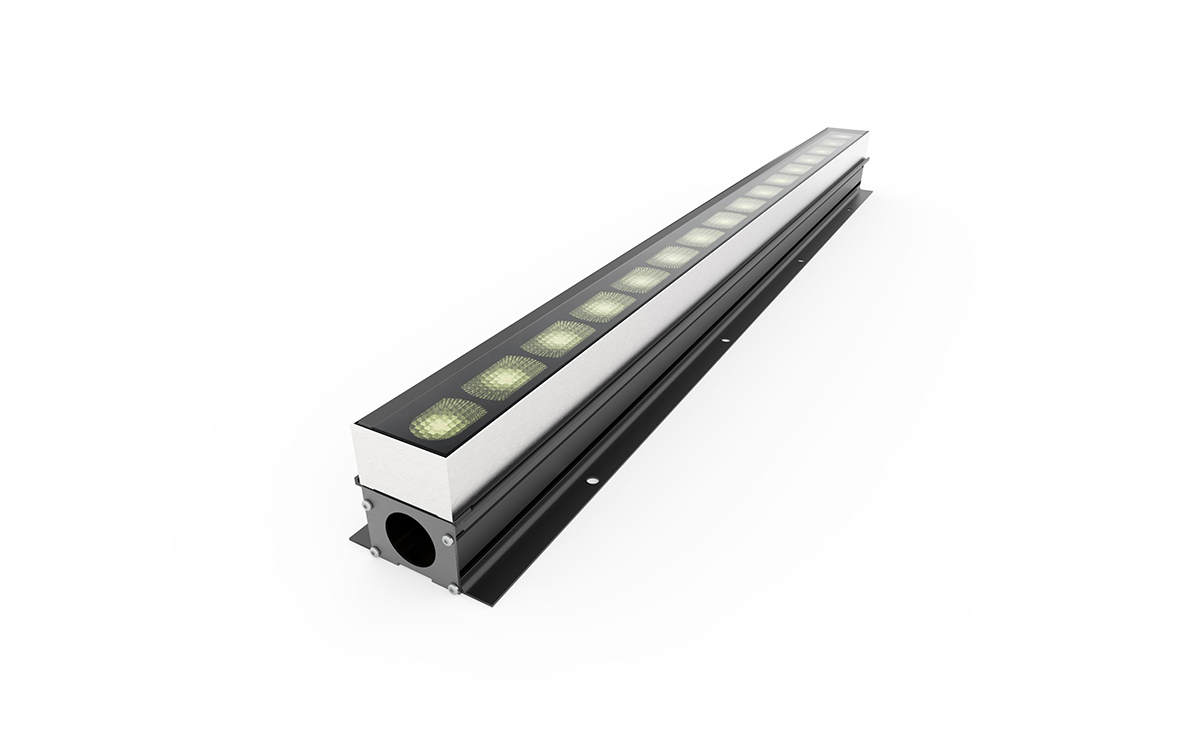

The INGROUND Dynamic White is a high-performance linear LED luminaire engineered for wall washing and grazing applications in inground installations. Designed with a full glass top and a robust glare control system, it delivers uniform, high-quality illumination that begins immediately adjacent to the fixture. Leveraging a 4-in-1 LED package, the luminaire offers dynamic white color tuning across a wide range of color temperatures, from warm 2200K to cool 6000K. Its advanced COLOR-AMP® technology enables up to three times greater light output in targeted color temperatures, ensuring optimal brightness and performance across various applications.
This trimless luminaire features a sleek, compact profile—measuring just 77 mm (3.03 inches) wide and 108 mm (4.2 inches) high—with a stainless steel top frame and an extruded anodized aluminum body that enhances thermal performance. Each unit undergoes a proprietary sealing process and electronic micro leak detection testing to ensure IP68 protection, making it suitable for dry, damp, or wet environments. The solid UNIBODY™ construction offers superior durability, while the 10mm optically clear tempered glass lens resists yellowing and withstands impacts with an IK10 rating. The luminaire also meets the 3G ANSI C136.31-2010 vibration standard, making it reliable for installations on bridges and overpasses.
Offering up to 3514 lumens per meter (1071 lumens per foot), the INGROUND Dynamic White ensures consistent color mixing without visible striations or color separation. It supports through-wiring via secure snap-in and lock connectors, simplifying end-to-end connections. Control is enabled via DMX through GVA’s power-data system, with a 300mm addressability resolution that allows each section to be individually addressed and configured. Compatible with 48VDC, 120–277VAC, and 220–240VAC input voltages, the luminaire is available in lengths of 600mm (2 ft), 900mm (3 ft), 1200mm (4 ft), and 1500mm (5 ft). It is built to last, with a projected L70 lifetime of over 65,000 hours at 50°C (122°F) and an operational temperature range of -40°C to +50°C (-40°F to 122°F).
