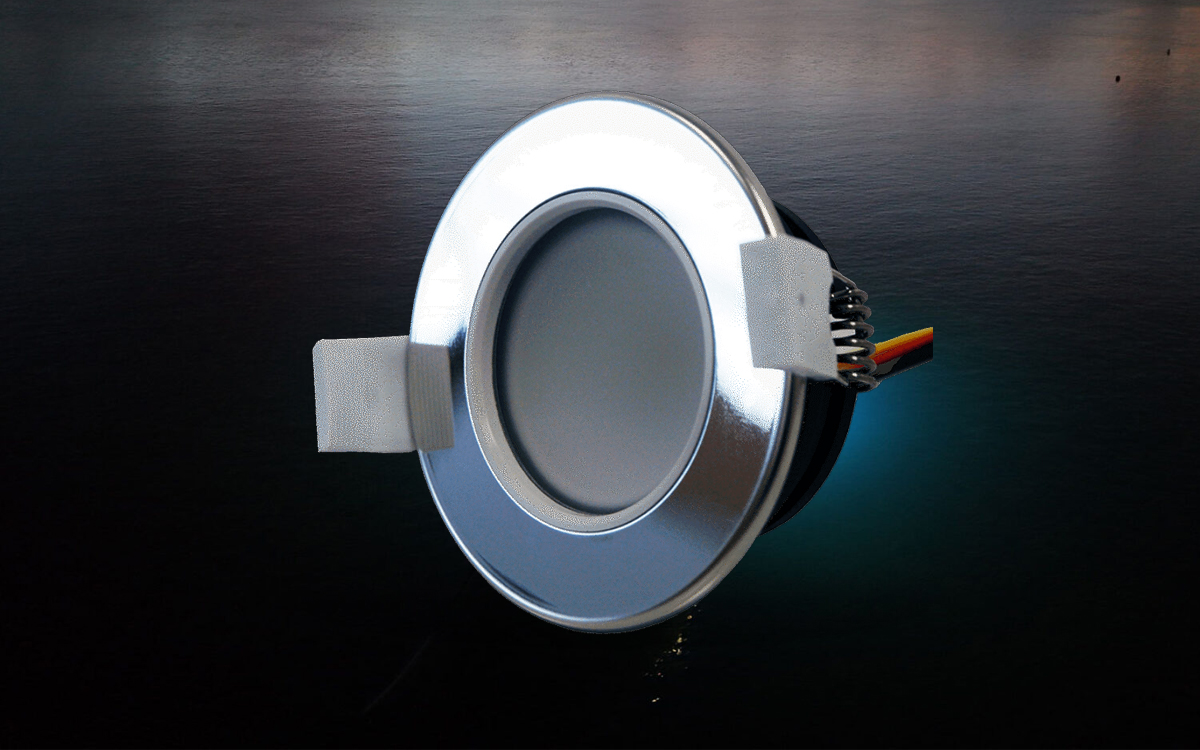

The LUX DL65 Downlights provide an ideal lighting solution for both interior and exterior overhead applications, designed to fit all cabin ceiling heights. These downlights feature a full spectrum CRGBW configuration, including cold white, red, green, blue, and warm white LEDs, along with white color temperature tunability ranging from 2700K to 6500K—all within the same unit. This versatile lighting capability allows users to customize ambiance and mood according to their preferences.
Constructed with a stylish chrome bezel and a durable hard-anodized aluminum body, the DL65 complements the aesthetics of any boat’s interior or exterior environment. The fixture is dimmable as standard and is powered by the LUX Light Control Module, offering smooth and flexible lighting control. Users can operate the downlights via a simple momentary switch or upgrade to full integration with compatible multifunction displays (MFDs) and the optional Lumishore Display for advanced control capabilities.
Designed for reliable performance in marine environments, the DL65 downlights carry an IP68 ingress protection rating, ensuring they are fully waterproof and suitable for wet or submerged conditions. The supply voltage ranges from 10.5 to 31 volts DC, and the unit draws a maximum current of either 0.6A or 0.3A depending on the setting. Mechanically, the downlights are installed using screw fittings for outdoor applications and spring clips for indoor use, providing installation flexibility and security.
The fixture measures 82mm in bezel diameter with a hole diameter of 65mm for fitting, making it compact yet effective for overhead lighting. Each LUX Light Control Module can manage up to 16 DL65 downlights, allowing extensive lighting coverage with centralized control. This combination of elegant design, advanced LED technology, and versatile control options makes the LUX DL65 Downlights a premium choice for marine lighting applications.
