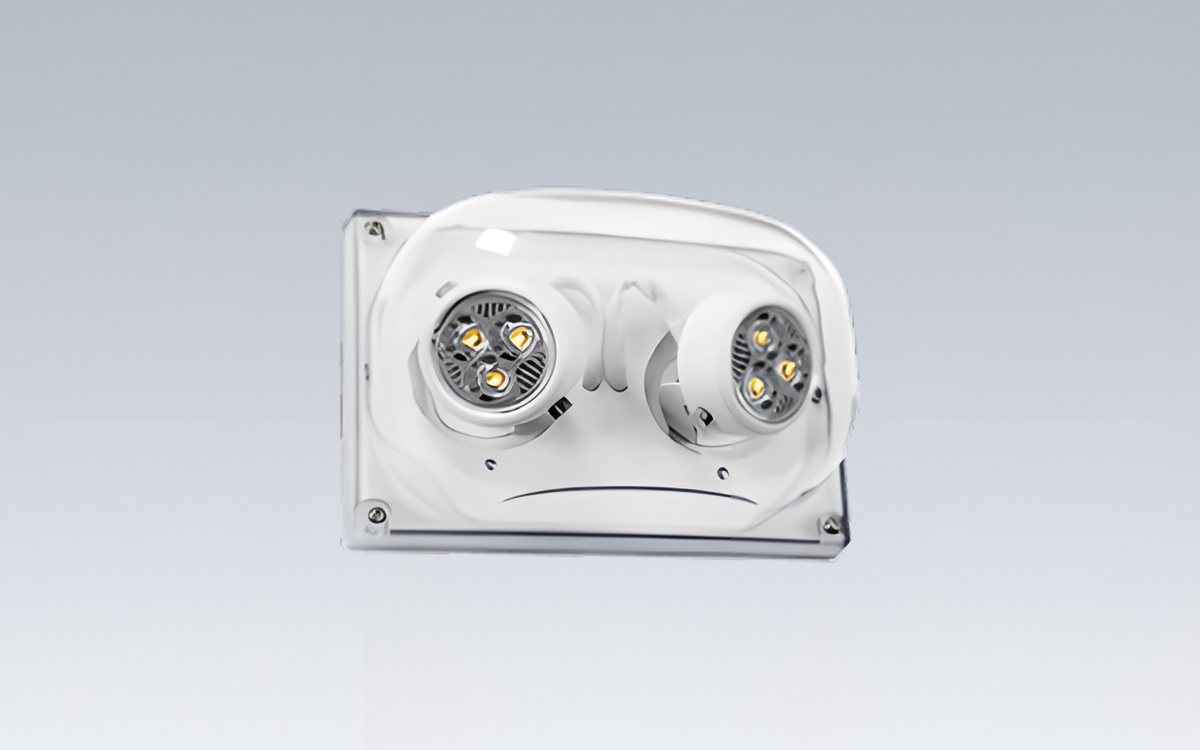

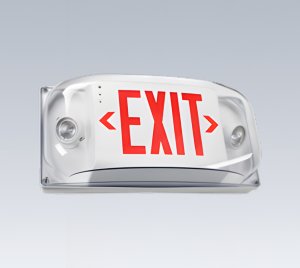

The surface mount exit and emergency light is designed for wall or ceiling installation, providing reliable guidance and emergency functionality in both everyday and critical situations. Equipped with an emergency remote unit, this fixture ensures illumination of exit paths during power interruptions, maintaining occupant safety and compliance with emergency codes. The design is ADA compliant, making it suitable for public spaces and facilities that require accessible, code-compliant emergency signage. Constructed with a 16-gauge cold-rolled steel baseplate, the fixture offers robust mechanical support and long-lasting durability, while the UV-stabilized high-impact clear wraparound polycarbonate lens ensures protection against impacts and environmental exposure.
Applications for this versatile fixture include parks and recreation centers, packaging and staging areas, dayrooms in correctional facilities, multifamily housing, cafeterias, restrooms, foyers and lobbies, corridors, gymnasiums, multipurpose rooms, indoor correctional recreational spaces, and natatoriums, as well as general emergency lighting requirements. Its design supports a wide range of institutional, commercial, and public environments where safety, durability, and compliance are critical.
The baseplate of the fixture is crafted from 16-gauge cold-rolled steel and features four-point mounting holes and a wireway hole for flexible installation. Finished with a white TGIC polyester powder coat through a five-stage pre-treatment process, the baseplate is tested to withstand 1,000 hours of salt spray and achieves 92% reflectance, ensuring both corrosion resistance and visual performance. The electrical system operates on 12V AC or DC and includes field-adjustable emergency lamps, powered by external 12VDC power supplies as provided by Kenall METEC, METEL, or METELHC, enabling scalable and reliable emergency lighting configurations.
A die-cut closed-cell neoprene gasket seals the lens and housing to the mounting surface, providing protection against moisture, dust, and tampering. The one-piece wraparound lens and housing are made from UV-stabilized, high-impact virgin injection-molded polycarbonate, with a nominal thickness of 0.120 inches, combining durability with optical clarity. Four stainless steel Torx® fasteners with center pins secure the lens and housing to the baseplate, reinforcing tamper resistance and ensuring a stable, long-lasting installation.
Installation requires standard four-point mounting to maintain the Peace of Mind Guarantee®, offering assurance of secure and reliable fixture placement. Certified by UL and CUL for wet locations, the fixture meets or exceeds UL924 and NFPA 101 standards, ensuring compliance with emergency egress and safety codes. With its combination of rugged construction, ADA-compliant design, and emergency functionality, this surface mount exit and emergency light provides dependable performance and long-term reliability in a wide range of institutional, commercial, and public spaces.
