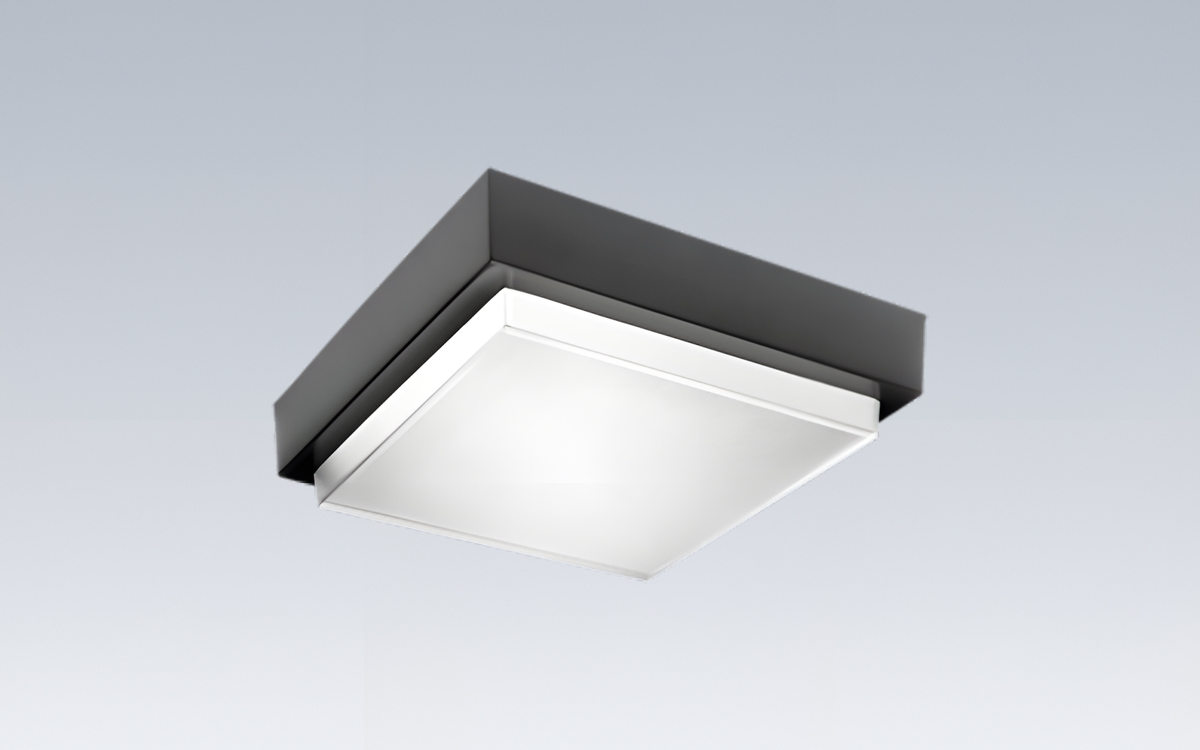

The surface-mount LED ceiling light is a specification-grade, impact-resistant luminaire built to withstand demanding institutional environments where durability, safety, and longevity are essential. Measuring 14" × 14" × 3", this fixture is ideal for locker rooms, multifamily housing corridors, restrooms, dormitories, educational facilities, foyers, and lobbies—spaces that demand a robust, tamper-resistant, and visually comfortable lighting solution. Its compact, clean-lined form factor complements modern architectural environments while ensuring reliable performance under high-abuse conditions.
Constructed with an 18-gauge cold rolled steel baseplate, the fixture ensures a solid foundation for secure ceiling attachment. The baseplate includes four-point mounting holes, a wireway opening, and junction box keyholes for simplified installation. It is finished in a white TGIC polyester powder coat with a five-stage pre-treatment process that enhances corrosion resistance and provides long-term surface protection. The coating has been tested to withstand 1,000 hours of salt spray exposure and achieves 92% reflectance, optimizing light output. For environments with greater exposure to moisture or corrosive conditions, optional marine-grade aluminum baseplates and aluminum surface conduit adapters are available.
The luminaire is sealed with a precision die-cut closed-cell neoprene gasket, ensuring a tight seal between the lens, housing, and mounting surface to prevent water ingress and maintain integrity in wet locations. A pair of stainless steel Torx® fasteners with tamper-resistant center pins securely hold the lens and housing in place, adding another layer of protection against vandalism or unauthorized access.
Its one-piece wraparound lens and housing assembly are constructed from UV-stabilized, high-impact, virgin injection-molded polycarbonate, making it resistant to yellowing, cracking, or deformation over time. Available in Matte White or Dark Bronze finishes, the housing integrates seamlessly into a variety of architectural and institutional settings. The pearlescent polycarbonate lens provides soft, uniform light distribution, minimizing glare and enhancing visual comfort in both private and public spaces.
The fixture supports LED light engines in 3500K, 4000K, and 5000K color temperatures with a color rendering index (CRI) of 80, ensuring accurate color perception and visual clarity. It operates on 120–277VAC or optional 347VAC input at 50/60Hz, powered by a high power factor constant-current driver (PF > 0.90). Standard 0–10V dimming enables smooth control across a 1–100% range with a maximum driver source current of 200 μA, providing flexibility for both energy management and occupant comfort.
Photometric testing is conducted in accordance with IESNA LM-79-08 standards by an ILAC/ISO 17025 accredited laboratory, ensuring accurate and certified performance data. The fixture achieves an IK10 impact protection rating per IEC 60068-2-75:1997-08, validating its ability to endure severe mechanical impact without compromise. It is certified to UL standards by Intertek Testing Laboratories for covered wet locations and meets ADA compliance requirements for surface-mounted luminaires.
Inside the luminaire, a full reflector and wire cover fabricated from white-finished aluminum deliver 92% reflectivity, maximizing light output efficiency and maintaining a clean internal appearance. The fixture’s robust build and precise optical design make it an excellent solution for demanding applications that require consistent performance, long service life, and ease of maintenance—all supported by a Peace of Mind Guarantee® when installed using the standard four-point mounting configuration.
