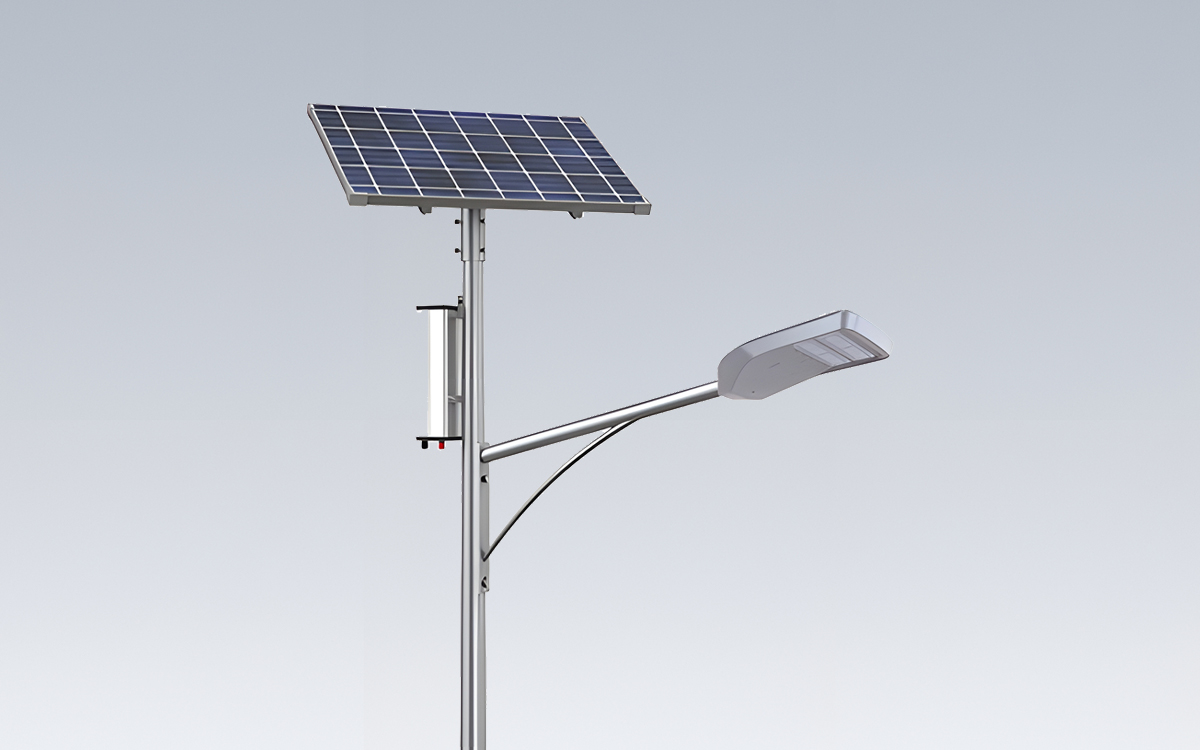

The Conco split solar street light combines innovative design with robust construction to provide reliable and uniform outdoor lighting. Its unique cooling module ensures the LED light source operates at an optimal temperature, while international brand LED chips deliver consistent lighting without glare. Installation and disassembly are simple and convenient, requiring no cover opening, and the plug-and-play power connection allows for easy maintenance. The lamp's structural design is engineered to prevent deformation even when multiple modules are embedded, while its patented appearance (patent No.: 201730543760.1) provides a modern and fashionable aesthetic suitable for urban and rural roadways.
The split solar street light is available in multiple configurations, with rated powers of 60W, 120W, and 180W and compatible with DC12V or DC24V systems. It is equipped with lithium batteries ranging from 12.8V/60AH to 25.6V/84AH, paired with monocrystalline solar panels from 180W/18V to 360W/36V. Using 3030/5050 LED modules and bat-wing light distribution, the system achieves uniform light coverage with a wide distribution angle of 150°x75°. The lamps maintain a high luminous efficiency of ≥130LM/W, a color rendering index of ≥Ra70, and support a range of color temperatures from 3000K to 6500K. With an IP66 rating for water and dust protection and an IK08 rating for impact resistance, the units are built to withstand extreme outdoor conditions, operating reliably in temperatures from -40℃ to +60℃.
The modular design enhances durability and thermal management, with radiator holes integrated into the ADC12 high-pressure die-cast aluminum body. This construction provides superior impact resistance, corrosion resistance, and heat dissipation. The Teijin 1225Z bat-wing lens, known for its strength and adaptability, further improves lighting uniformity while the built-in hoop design of the 60mm sleeve ensures installation reliability and internal structural safety. The street lights are suitable for mounting heights from 8m to 12m depending on the model, with compact lamp dimensions ranging from 645×295×144mm to 775×320×150mm and lamp weights from 4.6kg to 7.6kg.
Conco split solar street lights are engineered to withstand harsh weather conditions, including strong winds, frost, and high summer temperatures. The modular system achieves IP65 protection, effectively isolating the internal components from salt, dust, and heat. For AC-powered configurations, the lights offer energy conservation, long life, and reliable performance with IP67-rated die-cast aluminum housing. The 6063 aluminum radiator enhances thermal conductivity, ensuring effective heat dissipation across a large surface area. Combined with electrostatic spray treatment and shot-blast finishing, the high-pressure ADC12 aluminum body guarantees impact resistance, corrosion protection, and long-term durability for demanding outdoor environments.
The Conco split solar street light represents a robust and modern solution for urban, village, and industrial road lighting, combining modular installation, intelligent thermal management, durable materials, and consistent, uniform light distribution to meet the challenges of diverse outdoor environments.
