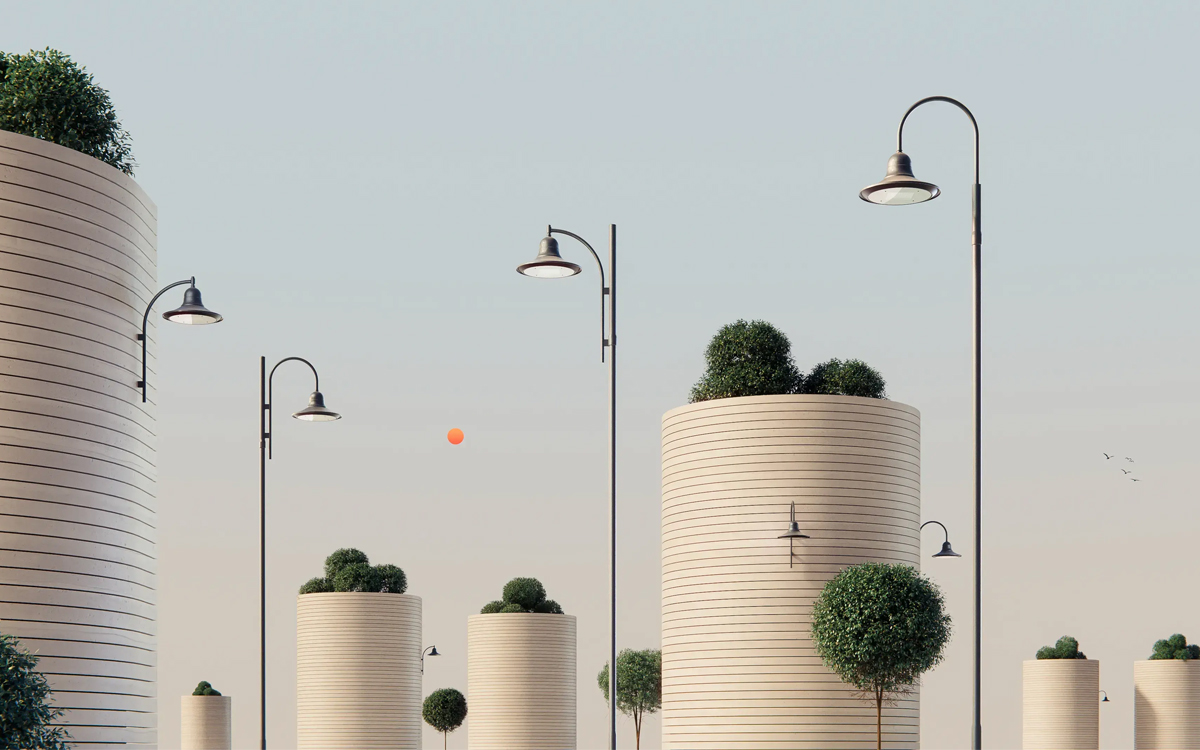

Combining timeless elegance with cutting-edge innovation, the AM luminaire series brings together vintage lantern-inspired design and advanced LED technology to meet modern street, path, and area lighting requirements. Ideal for environments with historical or architectural significance—such as urban squares, heritage districts, and public parks—AM fixtures preserve classic aesthetics while delivering high-performance, sustainable illumination.
Designed to maintain a historic appearance without compromising lighting quality, the AM luminaire supports up to four LED modules that can be configured and rotated for optimal coverage and control. This flexibility allows the fixture to meet the specific visual and technical demands of various outdoor applications. A wide range of luminous flux outputs and optical distributions ensures that lighting can be finely tuned for different environments, from narrow walkways to broad public spaces. Further refinement is possible with factory-integrated ewoLightLayers, including backlight shields (RBL) and anti-glare protection (AGR), which enhance visual comfort and minimize light spill.
Built for durability and long-term performance, AM features a robust aluminum housing with a low copper content (≤ 0.08%) and optional ewoECP corrosion protection. The fixture incorporates PMMA lenses mounted on aluminum support plates, single-pane ESG safety glass covers, and stainless steel brackets. The pole construction is hot-dip galvanized steel and includes practical elements such as a cable insertion opening, junction box, and service door. The exterior is finished with a polyester powder coating in anthracite (DB 703), with other color options available upon request.
The luminaire accommodates up to six LED lighting units (three LED PCBs) and operates within a current feed range of 300 mA to 600 mA, depending on ambient temperature. Each LED unit is adjustable by ±5°, enabling precise light direction. A variety of optical options are available, including LS33, LS34, and LP33 lenses in clear and satiné versions, supporting different pattern characteristics for diverse lighting scenarios.
Two model variants—AM620 and AM680—are available, offering flexibility in form factor and configuration. The AM series supports DALI, 1–10 V, and stand-alone control protocols, and can be connected to intelligent lighting systems using internal or external nodes. With optional Zhaga interfaces, the luminaires are also ready for integration into smart city infrastructure, enabling individual or grouped lighting control as part of an interconnected urban lighting strategy.
Finally, the AM product family is part of the A-Series range, which supports over 1.7 billion possible lens combinations, allowing for unparalleled customization. Together with technologies like ewoLightTile and ewoLightLayers, AM offers a fully adaptable and architecturally sensitive lighting solution that harmonizes tradition with technology.
