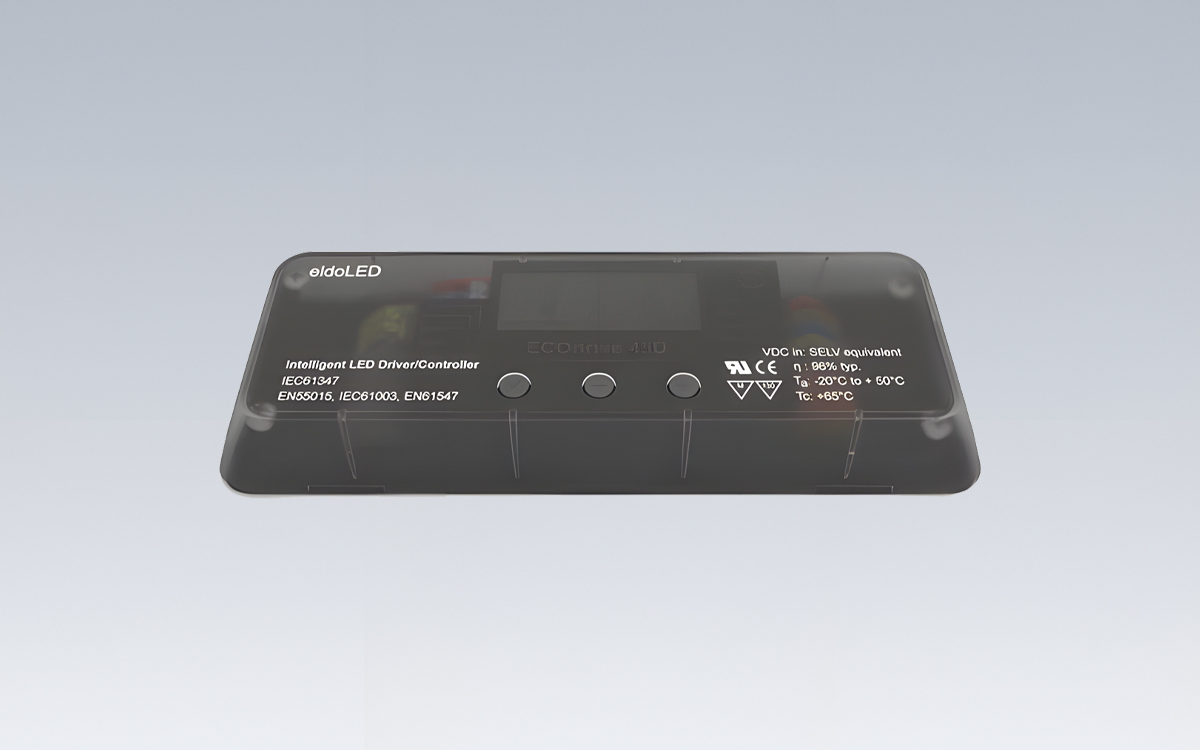

The LINEARdrive DC series by eldoLED is a versatile range of constant voltage LED drivers designed for precision control of LED strips in a variety of applications. This family enables creative lighting effects across single color, Tunable White, Dim to Warm, and full-color entertainment installations. The drivers provide industry-leading dimming down to 0.1%, meeting international flicker standards, with certain DALI-2 models capable of dimming as low as 0.02% for hospitality environments such as guest rooms and theaters. Control options include DMX, DALI, DALI-2 DT6 and DT8, 0-10V, and Casambi, allowing seamless integration into diverse lighting control systems. Select models, including the LIN180D and LIN720D, feature integrated controllers for defining and managing simple shows without requiring external control systems.
The LINEARdrive DC family supports power levels ranging from 100W to 720W, with input voltages of 12, 24, or 28VDC, while the LIN720D model accommodates up to 48VDC. Each driver includes a strain relief and an integrated heatspreader, enabling control of LED strings up to 8A per output when supplied by an external power source. Output configurations vary across the family, with 200W models featuring two LED outputs and 180W and 720W models providing four outputs. The drivers are suitable for independent use and are engineered to meet regulatory standards in Europe (CE, UKCA, ENEC), North America (UL Recognized), and India (BIS). The housing and design ensure reliable performance in ambient temperatures up to 50°C, while acoustic noise remains below 24dBA for quiet operation. Lifetimes are rated at 50,000 hours, providing long-term durability.
Dimming in the LINEARdrive DC series is both smooth and flicker-free, with configurable minimum levels and adaptable dim curves. Available dimming curves include logarithmic (LOG) and linear (LIN), providing flexibility for natural light transitions. The programmable functionality of the family allows fine-tuning through eldoLED’s FluxTool with LightShape software. Programmable parameters include dimming level, dimming curve, and Tunable White options, enabling precise control over lighting output and effects. For LIN200D models, this includes control of up to 200W (8A) of power across two LED outputs, while LIN180D and LIN720D models can manage 180W and 720W respectively across four outputs.
The LINEARdrive DC drivers are particularly suitable for architectural and cove lighting applications, including single-color, Tunable White, and RGBW LED tape installations. The DALI-2 models feature an optional manufacturer-specific mode (mode 81) that can lower the minimum dim level to 0.02%, achieved via the DALI command “DTR0(0x81)” followed by “SET OPERATING MODE (DTR0)” and a power cycle. Integrated control features in the LIN180D and LIN720D models allow for simple show programming without additional control hardware, adding versatility to commercial and entertainment installations. Across all models, the drivers support precise, flicker-safe dimming, smooth brightness transitions, and adaptable output curves, making the LINEARdrive DC series a robust solution for high-quality LED lighting design.
This family of drivers is optimized for global markets, including Europe, North America, and India, providing a wide range of control, high programmability, and consistent performance for architectural, hospitality, and entertainment lighting projects. Each model combines reliability, flexibility, and programmability with high-quality construction to support sophisticated LED lighting installations.
